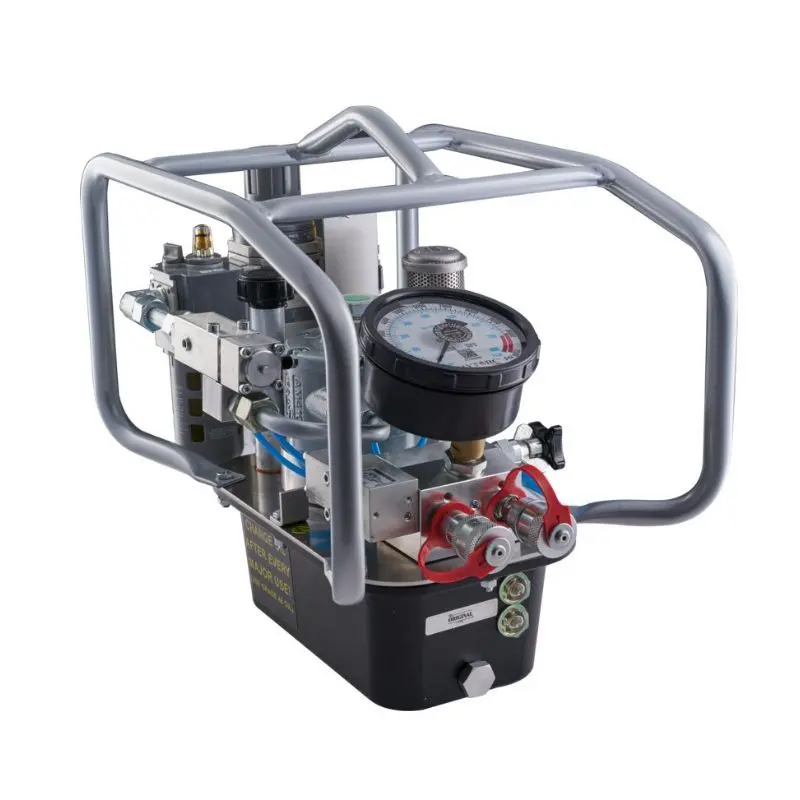

JETPRO-S-AIR 2 Stage Pneumatic Pump, Single Port, c/w 10k PSI Gauge

HYTORC JETPRO-S-AIR is a 2-stage pneumatic hydraulic pump from the JETPRO S series, built for efficient bolting in industrial settings like construction and maintenance. As a portable unit, it supports single-tool operation with rapid pressure buildup to 10,000 PSI and a built-in FRL (filter-regulator-lubricator) for smooth performance. Compact with protective caging and remote control, it's ideal for on-site use in hazardous environments, ATEX certified for explosive areas.

Key Performance Specifications

• Air Pressure: 60–100 PSI (4–7 bar)
• Working Pressure: 0–10,000 PSI (700 bar)
• Stages: 2
• Maximum Oil Flow Rate: 6 L/min (at 70 bar)
• Gauge: 0–10k PSI (±1% accuracy)
• Air Consumption: up to 30 l/s (1,900 cu.in./sec.)

Physical and Environmental Specifications

• Reservoir Capacity: 0.8 gal (3 L)
• Weight: 35 lbs (16 kg)
• Dimensions: 15.7 x 9.8 x 14.2 in (40 x 25 x 36 cm)
• Ports: 1 double-effect output
• Operating Temperature: Suitable for industrial use (no specific range listed)

Key Features

• Pneumatic Design: ATEX certified for safe operation in explosive environments; high flow rate for reliable efficiency
• Built-In FRL: Filters contaminants, regulates pressure, and lubricates for extended life
• Protective Caging: Full enclosure for safety in harsh environments
• Remote Control: 15 ft pneumatic remote with deadman switch
• Applications: Bolting tools, torque wrenches in construction and petrochemical
• Standards Compliance: Burst-tested to 40,000 PSI; RoHS compliant components
