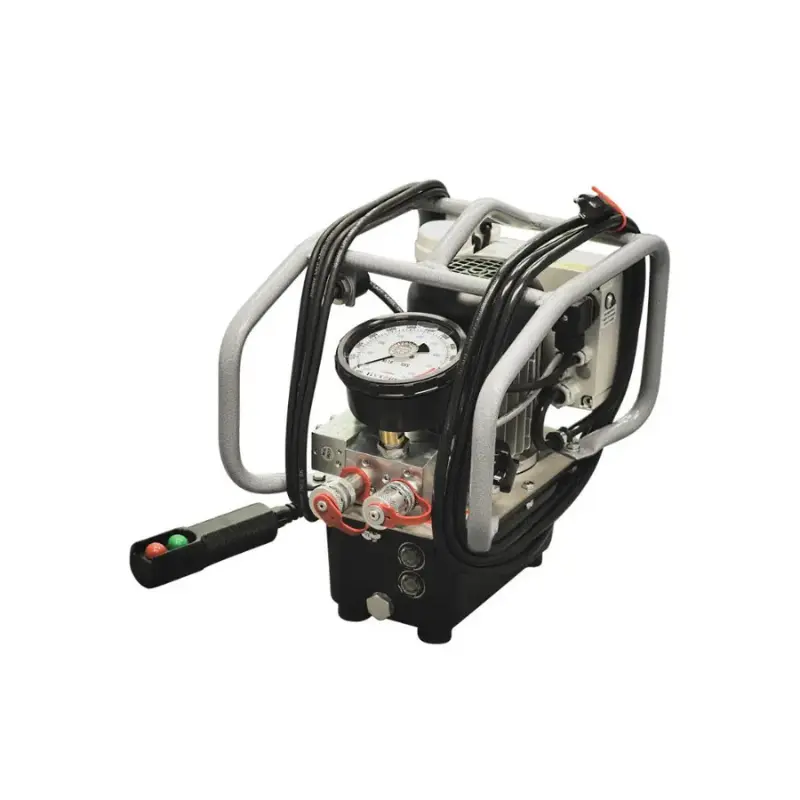

JETPRO-S-230, 2 Stage Electric Pump, Single Port, c/w 10k PSI Gauge

HYTORC JETPRO-S-230 is a 2-stage electric hydraulic pump from the JETPRO S series, built for efficient bolting in industrial settings like construction and maintenance. As a portable unit, it supports single-tool operation with rapid pressure buildup to 10,000 PSI and a built-in FRL (filter-regulator-lubricator) for smooth performance. Compact with protective caging and remote control, it's ideal for on-site use requiring quiet, reliable power.

Key Performance Specifications

• Voltage/Power: 230V single phase (4.5 Amp)
• Working Pressure: 0–10,000 PSI (700 bar)
• Stages: 2
• Maximum Oil Flow Rate: 4 L/min (at 70 bar)
• Gauge: 0–10k PSI (±1% accuracy, digital)
• Noise Level: ~80 dB

Physical and Environmental Specifications

• Reservoir Capacity: 0.8 gal (3 L)
• Weight: 60 lbs (27 kg, without oil)
• Dimensions: Compact with wheels for mobility (exact not specified)
• Ports: 1 double-effect output
• Operating Temperature: Suitable for industrial use (no specific range listed)

Key Features

• Electric Design: Quiet operation for indoor/outdoor use; rapid pressure delivery
• Built-In FRL: Filters contaminants, regulates pressure, and lubricates for extended life
• Protective Caging: Full enclosure for safety in harsh environments
• Remote Control: 15 ft cord with deadman switch
• Applications: Bolting tools, torque wrenches in construction and petrochemical
• Standards Compliance: Burst-tested to 40,000 PSI; RoHS compliant components
