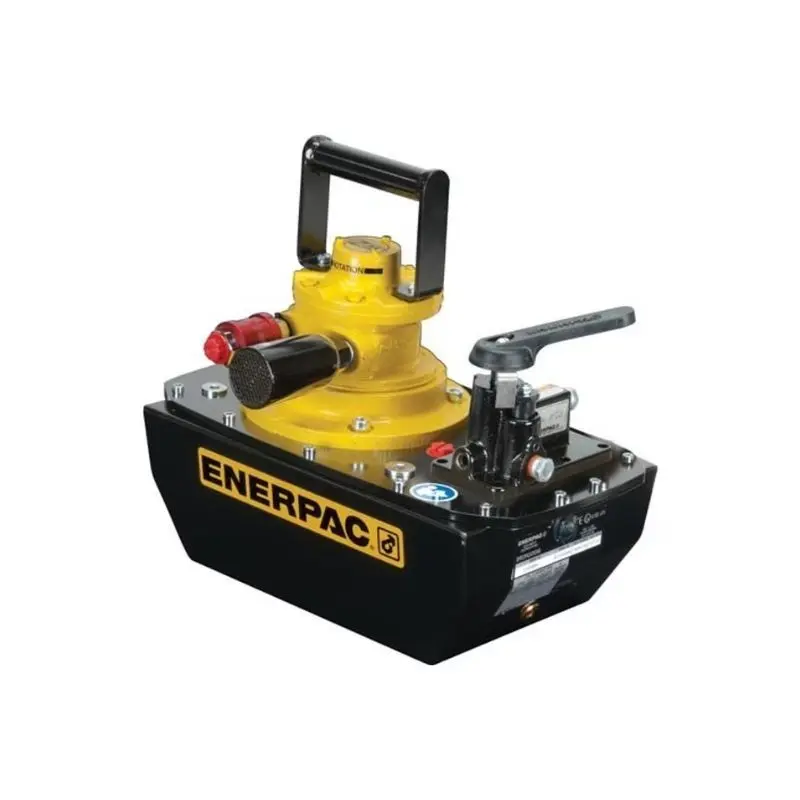

ZA4404MX, Two Speed, Air Hydraulic Pump, 4/3 Manual Valve, 4,0 litres Usable Oil, For use with Double-Acting Cylinders

Enerpac ZA4404MX Two Speed Air Hydraulic Pump 4/3 Manual Valve 4.0 Litres Usable Oil For use with Double-Acting Cylinders is a high-efficiency, air-powered hydraulic pump designed for reliable operation in industrial maintenance and assembly tasks requiring double-acting cylinder control. Featuring Z-Class two-speed technology for rapid low-pressure advance and high-pressure efficiency up to 10,000 psi, this pump includes a 4-way 3-position manual valve, 4.0 L usable oil reservoir, and operates on compressed air (60-100 psi) for portable, explosion-proof performance in hazardous environments, ensuring fast cycle times and consistent power delivery without electrical hazards.

• Model Number: ZA4404MX
• Product Type: Air Hydraulic Pump (Two-Speed, 4/3 Manual Valve)
• Color: Silver/Gray
• Material: Steel Reservoir with Aluminum Housing and Hardened Components
• Capacity: 10,000 psi (700 bar) Maximum Operating Pressure
• Oil Capacity: 4.0 L (1.06 gal) Usable / 231 in³ (4 L) Total Reservoir
• Valve Type: 4-Way, 3-Position Manual (Advance/Hold/Return)
• Flow Rate: 850 in³/min (13.9 L/min) at 100 psi; 80 in³/min (1.3 L/min) at 10,000 psi
• Air Consumption: 20-100 SCFM
• Air Pressure Range: 60-100 psi
• Sound Level: 94-97 dBa
• Weight (Net): 30.3 kg / 66.7 lbs
• Dimensions: Length: 295 mm (11.6"), Width: 142 mm (5.6"), Height: 279 mm (11")
• Overview: High-flow air hydraulic pump with two-speed operation for efficient double-acting cylinder use; ideal for remote or hazardous sites with air power, providing rapid cycles and Z-Class reliability for maintenance tasks
• Key Features:
  • Two-speed design reduces cycle time with high bypass pressure and efficient oil flow for faster productivity
  • 4/3 manual valve ensures precise control for double-acting cylinders, with 1/2" FNPT air inlet for easy connection to shop air
  • 4.0 L usable oil reservoir supports extended operation, with sight/level gauge for quick monitoring
  • Explosion-proof air drive eliminates electrical hazards, suitable for hazardous locations with low noise and vibration
  • Compatible with Enerpac RC-series cylinders and accessories for versatile industrial applications
