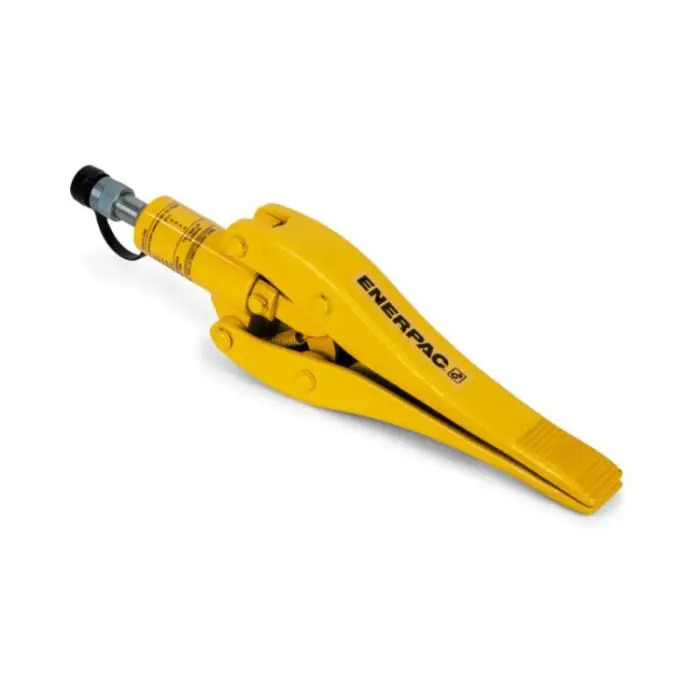

WR15 6 kN Hydraulic Wedgie and Spread Cylinder 292 mm Maximum Spread

Enerpac WR15 6 kN Hydraulic Wedgie and Spread Cylinder 292 mm Maximum Spread is a compact, long-stroke single-acting hydraulic spreader with spring return, designed for precise separation of flanges, components, or structures in confined spaces. Ideal for maintenance, repair, and assembly tasks requiring controlled spreading force up to 6 kN (0.75 ton) with minimal insertion clearance, this lightweight steel tool features interchangeable jaws for versatile wedging and spreading applications, compatible with standard Enerpac hydraulic systems and hand pumps for safe, efficient operation on various materials without surface damage.

• Model Number: WR15
• Product Type: Hydraulic Wedgie and Spread Cylinder (Single-Acting, Spring Return)
• Color: Silver/Gray
• Material: Steel with hardened components
• Spreading Range: 32 mm - 292 mm (1.26" - 11.5")
• Wall Thickness Capacity: N/A (suitable for various thicknesses based on application)
• Motor Type: N/A (hydraulic operation; compatible with hand pumps like P392 or power sources up to 700 bar)
• Power Pack: N/A (operates with separate hydraulic pumps or systems)
• Control System: Hydraulic with spring return
• Weight (Net): 11.3 kg / 25 lbs
• Dimensions: Length: 549 mm (21.6"), Width: 51 mm (2"), Height: 157 mm (6.2")
• Overview: Long-stroke hydraulic spreader for tight clearance applications, delivering up to 292 mm spread in one operation; ideal for industrial maintenance in confined environments with powerful, controlled force application
• Key Features:
  • Minimum tip clearance of 32 mm for access to narrow gaps
  • Effective area of 14.5 cm² (2.25 in²) and oil capacity of 64 cm³ (3.91 cu in) for efficient performance
  • Maximum operating pressure of 700 bar (10,000 psi) for reliable high-force spreading
  • Lightweight and interchangeable design for easy handling and versatility
  • Compatible with A92 spreader attachment and RC-Series cylinders for enhanced wedging capabilities
