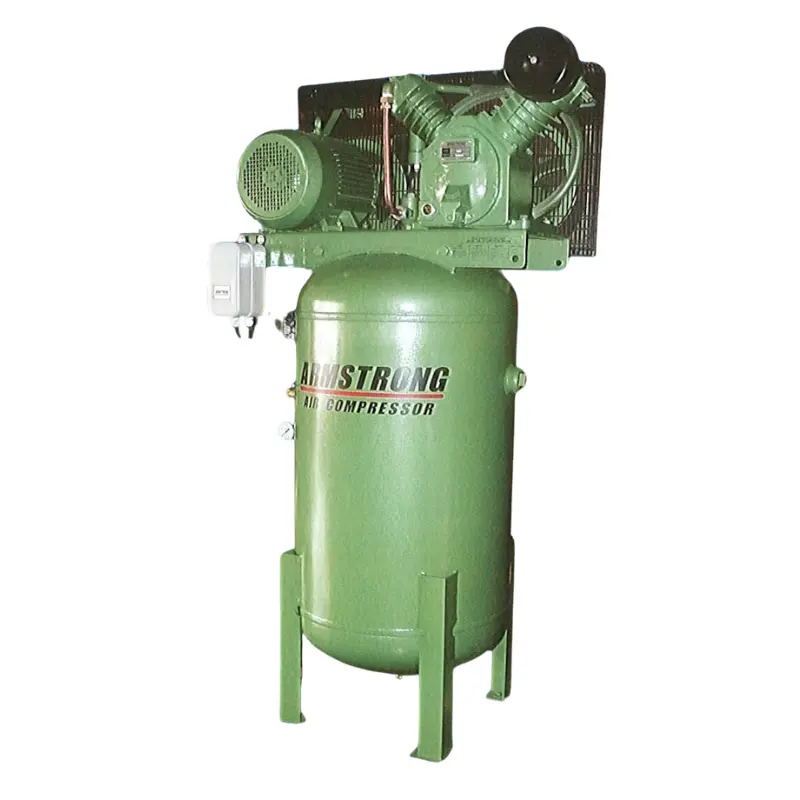

V30 V-Series Air Compressor, 3 Hp, 1100 rpm

Armstrong-Vitech V30 is a compact, heavy-duty vertical piston air compressor from the V-Series (T32 platform), engineered with U.S.-inspired design and proven technology for reliable, continuous 24-hour operation in demanding industrial, automotive, and manufacturing environments. Featuring 100% cast iron construction, heavy-duty ball bearings, and factory-filled synthetic lubricant, it delivers efficient compressed air with minimal maintenance, making it ideal for space-constrained professional applications requiring high-quality performance.

Key Performance Specifications

• Motor Power: 3 HP
• Speed: 1100 RPM
• Free Air Delivery: 10 CFM (at 175 PSI)
• Maximum Working Pressure: 175 PSI
• Receiver Tank Capacity: 230 L (vertical)
• Starter Type: Direct On Line
• Control System: Auto Start/Stop

Physical and Environmental Specifications

• Configuration: Vertical tank-mounted
• Dimensions (L × W × H): Approximately 740 × 1160 × 2000 mm (based on similar models; exact may vary)
• Weight: Approximately 200 kg (net; shipping ~250 kg)
• Power Supply: 3-phase electric motor (typical 415V/50Hz; confirm for region)
• Operating Temperature: Suitable for all-weather, continuous duty

Key Features

• Construction: 100% cast iron cylinders and components for durability and longevity
• Lubrication: Factory-filled synthetic oil for extended service intervals
• Bearings: Heavy-duty ball bearings for smooth, low-vibration operation
• Installation: Fully assembled and ready for easy setup
• Cooling: Efficient fan-type cooling system
• Applications: Ideal for automotive repair, general manufacturing, and light-duty pneumatic tools
• Standards Compliance: Designed for industrial reliability; RoHS compliant components
