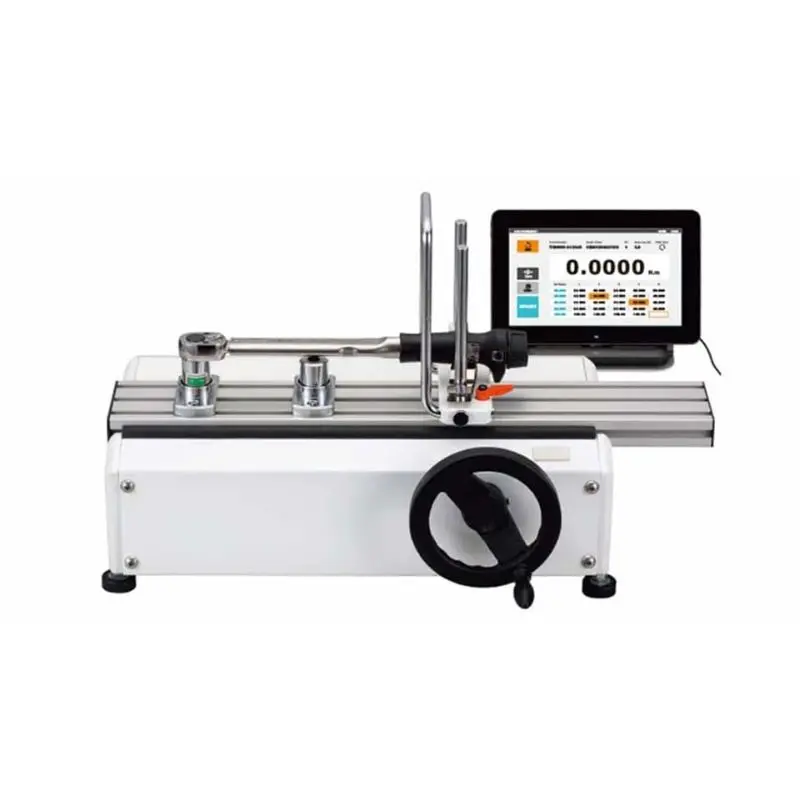

TCC100N2-G Digital Torque Wrench Tester, 1-100 N.m

Tohnichi TCC100N2-G is an advanced digital torque wrench tester and calibrator from the TCC2-G series, featuring an integrated 10.1-inch PC tablet with touch screen and comprehensive management software for efficient tool registration, calibration, and data analysis. Designed for professional use in quality control and maintenance, it offers a wide torque range across two channels (CH1 for higher torque up to 100 N·m, CH2 for lower), spindle-rotating loading for stable testing, and full compliance with ISO 6789 standards, making it suitable for calibrating various torque wrenches and drivers in manufacturing environments.

Key Measurement Specifications

• Torque Range: CH1: 4–100 N·m (40–1000 kgf·cm, 35.5–885 lbf·in); CH2: 1–25 N·m (10–250 kgf·cm, 9–220 lbf·in)
• Resolution:
  • CH1: N·m 0.01; kgf·cm 0.1; lbf·in 0.1
  • CH2: N·m 0.002; kgf·cm 0.02; lbf·in 0.02
• Accuracy: ±1% F.S. + 1 digit
• Measurement Modes: RUN (continuous for direct-reading), PEAK (max hold for click-type), Click, Direct reading, Manual
• Units: 7 selectable (N·m, kgf·cm, kgf·m, lbf·in, lbf·ft, ozf·in, cN·m)

Physical and Environmental Specifications

• Dimensions (L × W × H): 714 × 388 × 375 mm (28.1 × 15.3 × 14.8 in)
• Weight: 35 kg (77.2 lbs)
• Inlet Drive: CH1 □12.7 mm; CH2 □12.7 mm
• Operating Temperature: 0–40°C (no condensation); measuring 18–28°C (±1°C stability)
• Power Supply: AC 100–240 V ±10%, 50/60 Hz, 1A
• Data Memory: Up to 1000 data points; supports tool management (model/serial, points, operators, history)

Key Features

• Loading System: Spindle-rotating mechanism for fixed-position testing; auto channel selection with LED indicators
• Display and Controls: 10.1-inch slate PC tablet with HD touch screen; multilingual (English/Japanese); OK/NG judgment (tolerance ±1–10%, formulas A/B) with color alerts
• Data Output: USB (Type B) for CSV export to external storage; backup/restore functions for configs and results
• Additional Functions: Auto zero/reset (0.1–5.0 s), over-torque alarm (110% F.S.), peak hold (>2% range), statistical analysis (avg, judgment), tool registration (up to 1000 pcs)
• Applications: Calibration/adjustment of click-type (QL/SP), direct-reading (DB/F/CEM), and driver tools (RTD/LTD/FTD/STC); CW/CCW/bidirectional support
• Standards Compliance: ISO 6789; RoHS compliant
