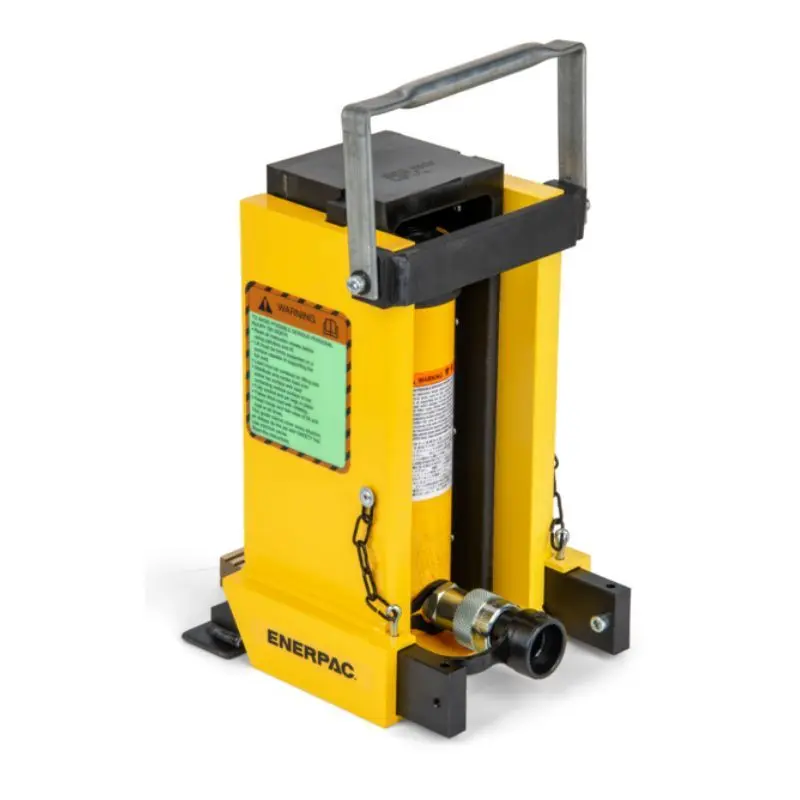

SOH236 178 kN Capacity, 157 mm Stroke, Hydraulic Machine Lift

Enerpac SOH236 is a heavy-duty hydraulic toe jack engineered for lifting substantial loads like factory machinery in tight spaces with minimal clearance. Boasting a 20-ton (178 kN) capacity and a 157 mm stroke, this single-acting, spring-return lift features a low-profile toe, precision guidance to prevent side-load damage, and extendable support feet for superior stability. Paired with an included RC-256 cylinder and CR-400 coupler, it enables safe, remote operation at up to 10,000 psi, making it a reliable choice for industrial maintenance and relocation tasks.

• Product Overview
  • Name: Enerpac SOH236 Hydraulic Machine Lift
  • Type: Single-acting, spring-return hydraulic toe jack for machine lifting
  • Primary Applications: Lifting heavy equipment and factory machinery in confined or low-clearance areas
  • Force Output: 20 tons (178 kN) lifting capacity
  • Stroke: 157 mm (6.18 in)
  • Retraction Mechanism: Spring return
  • Operating Pressure: Maximum 10,000 psi (700 bar)
  • Toe Clearance: 30 mm (1.18 in) minimum
• Technical Specifications
  • Capacity: 20 tons (178 kN)
  • Maximum Operating Pressure: 10,000 psi (700 bar)
  • Stroke: 157 mm (6.18 in)
  • Toe Clearance: 30 mm (1.18 in)
  • Oil Capacity: 32 in³ (525 cm³)
  • Weight: 99.2 lbs (45 kg)
  • Dimensions: Retracted height 12.4 in (315 mm); extended height 18.58 in (472 mm); length 10.24 in (260 mm); width 9.84 in (250 mm)
  • Includes: RC-256 cylinder with CR-400 coupler
  • Series: SOH Series Hydraulic Machine Lifts
• Key Features
  • Low-height lifting toe for easy insertion in restricted spaces
  • Remote hydraulic pump operation to enhance operator safety
  • Precision-guided design reduces friction and protects against side-loads
  • Two extendable support feet for added stability during lifts
  • Compact and portable for versatile use in industrial environments
