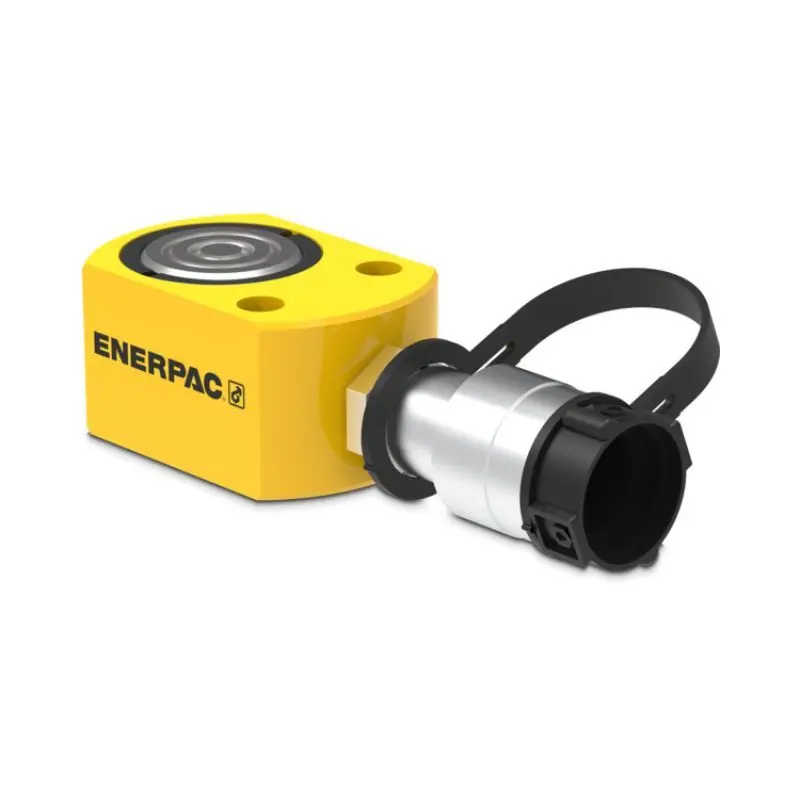

RSM50 45 kN Capacity, 6 mm Stroke, Low Height Hydraulic Cylinder

Enerpac RSM50 is a compact, low-profile hydraulic cylinder engineered for high-force applications in extremely confined spaces, such as under heavy machinery or in production environments where clearance is minimal. Delivering a 5-ton (45 kN) capacity over a 6 mm stroke, this single-acting, spring-return model operates reliably at up to 10,000 psi, featuring a flat design with integrated mounting holes and a grooved plunger for enhanced efficiency and safety in industrial lifting and pushing tasks.

• Product Overview
  • Name: Enerpac RSM50 Low Height Hydraulic Cylinder
  • Type: Single-acting, spring-return low-height hydraulic cylinder
  • Primary Applications: Lifting and pushing in tight spaces, such as under machinery or in production setups
  • Force Output: 5 tons (45 kN)
  • Stroke: 6 mm (0.24 in)
  • Retraction Mechanism: Spring return
  • Operating Pressure: Maximum 10,000 psi (700 bar)
  • Collapsed Height: 38 mm (1.50 in)
• Technical Specifications
  • Capacity: 5 tons (45 kN)
  • Maximum Operating Pressure: 10,000 psi (700 bar)
  • Stroke: 6 mm (0.24 in)
  • Collapsed Height (A): 38 mm (1.50 in)
  • Extended Height (B): 44 mm (1.73 in)
  • Outside Dimensions (D): 58 x 41 mm (2.28 x 1.61 in)
  • Bore Diameter (E): 28.5 mm (1.12 in)
  • Plunger Diameter (F): 16 mm (0.63 in)
  • Effective Area: 6.5 cm² (1.01 in²)
  • Oil Capacity (Advance): 5 cm³ (0.31 in³)
  • Weight: 1.0 kg (2.2 lbs)
  • Base to Advance Port (H): 20 mm (0.79 in)
  • Series: RSM Series Low Height Cylinders
• Key Features
  • Low-profile, flat design for access to confined areas where other cylinders cannot fit
  • Integrated mounting holes for secure fixturing
  • Grooved plunger ends eliminate the need for a saddle
  • Corrosion-resistant baked enamel finish
  • Chrome-plated plunger for durability and smooth operation
  • Powerful return spring for faster retraction
  • Includes CR-400 coupler and dust cap
  • Integral bleed valve for air removal and precise control
