RSM1500 1386 kN Capacity, 16 mm Stroke, Low Height Hydraulic Cylinder

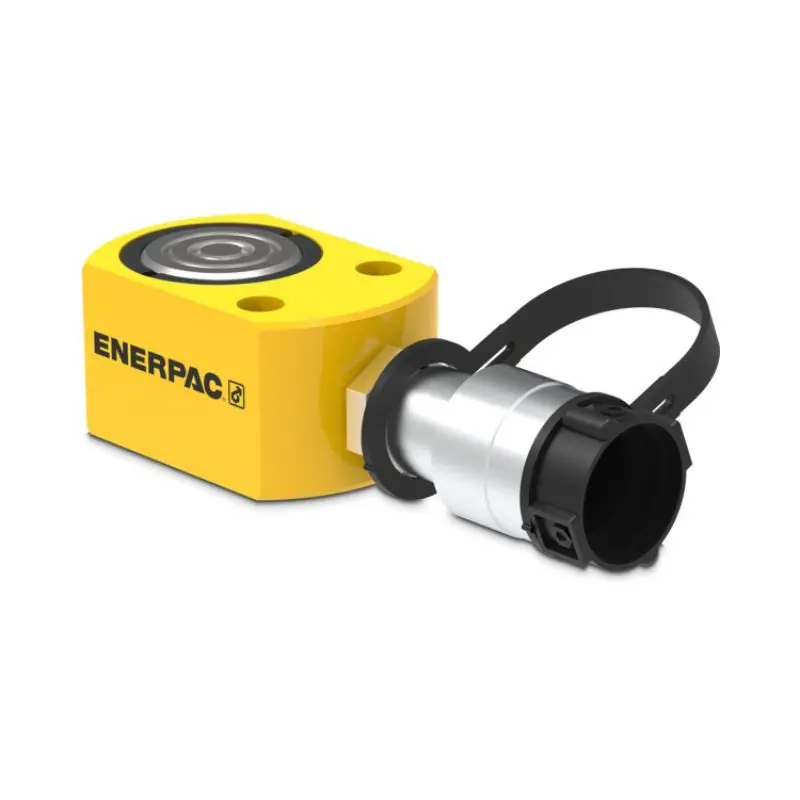

Enerpac RSM1500 is a compact, low-profile hydraulic cylinder engineered for high-force applications in extremely confined spaces, such as under heavy machinery or in production environments where clearance is minimal. Delivering a 153.4-ton (1386 kN) capacity over a 16 mm stroke, this single-acting, spring-return model operates reliably at up to 10,000 psi, featuring a flat design with integrated handles, mounting holes, and a powerful return spring for enhanced efficiency and safety in industrial lifting and pushing tasks.

• Product Overview
  • Name: Enerpac RSM1500 Low Height Hydraulic Cylinder
  • Type: Single-acting, spring-return low-height hydraulic cylinder
  • Primary Applications: Lifting and pushing in tight spaces, such as under machinery or in production setups
  • Force Output: 153.4 tons (1386 kN)
  • Stroke: 16 mm (0.63 in)
  • Retraction Mechanism: Spring return
  • Operating Pressure: Maximum 10,000 psi (700 bar)
  • Collapsed Height: 100 mm (3.94 in)
• Technical Specifications
  • Capacity: 153.4 tons (1386 kN)
  • Maximum Operating Pressure: 10,000 psi (700 bar)
  • Stroke: 16 mm (0.63 in)
  • Collapsed Height (A): 100 mm (3.94 in)
  • Extended Height (B): 116 mm (4.56 in)
  • Outside Dimensions (D): 215 x 190 mm (8.50 x 7.50 in)
  • Bore Diameter (E): 158.8 mm (6.25 in)
  • Plunger Diameter (F): 114.3 mm (4.5 in)
  • Effective Area: 198.1 cm² (30.68 in²)
  • Oil Capacity (Advance): 317 cm³ (19.17 in³)
  • Weight: 26.3 kg (58 lbs)
  • Base to Advance Port (H): 23 mm (0.94 in)
  • Series: RSM Series Low Height Cylinders
• Key Features
  • Low-profile, flat design for access to confined areas where other cylinders cannot fit
  • Integrated handles for easy carrying and positioning
  • Mounting holes for secure fixturing
  • Grooved plunger ends eliminate the need for a saddle
  • Corrosion-resistant baked enamel finish
  • Chrome-plated plunger for durability and smooth operation
  • Powerful return spring for faster retraction
  • Includes CR-400 coupler and dust cap
  • Integral bleed valve for air removal and precise control
