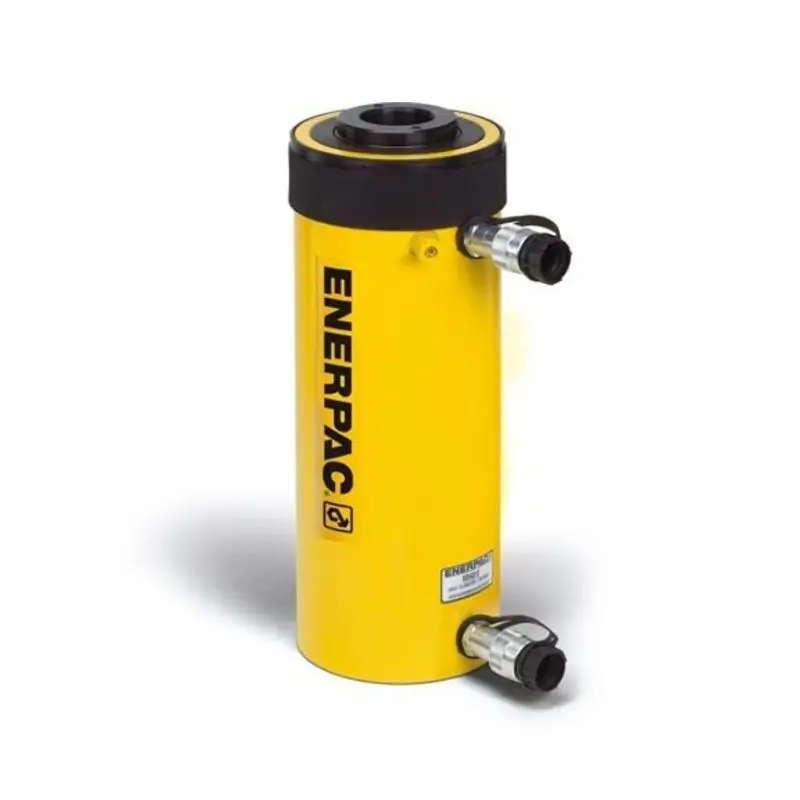

RRH1508 1429 kN Capacity, 203 mm Stroke, Double-Acting, Hollow Plunger Hydraulic Cylinder

Enerpac RRH1508 is a versatile double-acting hollow plunger hydraulic cylinder designed for both pushing and pulling applications in industrial maintenance, construction, and tensioning tasks. With a 158-ton (1429 kN) advance capacity and 203 mm stroke, it features a central hollow bore for passing rods or cables, enabling fast hydraulic retraction and operating at up to 10,000 psi, with protective features like relief valves and a corrosion-resistant finish for durability in demanding environments.

• Product Overview
  • Name: Enerpac RRH1508 Double-Acting Hollow Plunger Hydraulic Cylinder
  • Type: Double-acting, hollow plunger cylinder
  • Primary Applications: Pushing, pulling, tensioning, and bolting in versatile industrial setups
  • Force Output: 158 tons (1429 kN) nominal advance capacity
  • Stroke: 203 mm (8 in)
  • Retraction Mechanism: Hydraulic return
  • Operating Pressure: Maximum 10,000 psi (700 bar)
  • Collapsed Height: 349 mm (13.75 in)
• Technical Specifications
  • Capacity (Advance): 158 tons (1429 kN)
  • Capacity (Retract): 80 tons (718 kN)
  • Maximum Operating Pressure: 10,000 psi (700 bar)
  • Stroke: 203 mm (8 in)
  • Collapsed Height (A): 349 mm (13.75 in)
  • Extended Height (B): 552 mm (21.75 in)
  • Outside Diameter (D): 247 mm (9.75 in)
  • Bore Diameter (E): 190.5 mm (7.5 in)
  • Plunger Diameter (F): 152.4 mm (6 in)
  • Effective Area (Advance): 204.1 cm² (31.62 in²)
  • Effective Area (Retract): 102.6 cm² (15.91 in²)
  • Oil Capacity (Advance): 4,144 cm³ (252.97 in³)
  • Oil Capacity (Retract): 2,085 cm³ (127.23 in³)
  • Weight: 111 kg (245 lbs)
  • Center Hole Diameter (Y): 79 mm (3.11 in)
  • Base to Advance Port (H): 38 mm (1.5 in)
  • Series: RRH Series Double-Acting Hollow Plunger Cylinders
• Key Features
  • Double-acting operation for fast retraction
  • Hollow plunger allows for both pull and push forces
  • Nickel-plated, floating center tube increases product life
  • Relief valves prevent damage in case of over-pressurization
  • Baked enamel finish for increased corrosion resistance
  • Collar threads enable easy fixturing
  • Includes CR-400 couplers and dust caps
  • Plunger wiper reduces contamination, extending cylinder life
  • Smooth hollow saddles are standard
