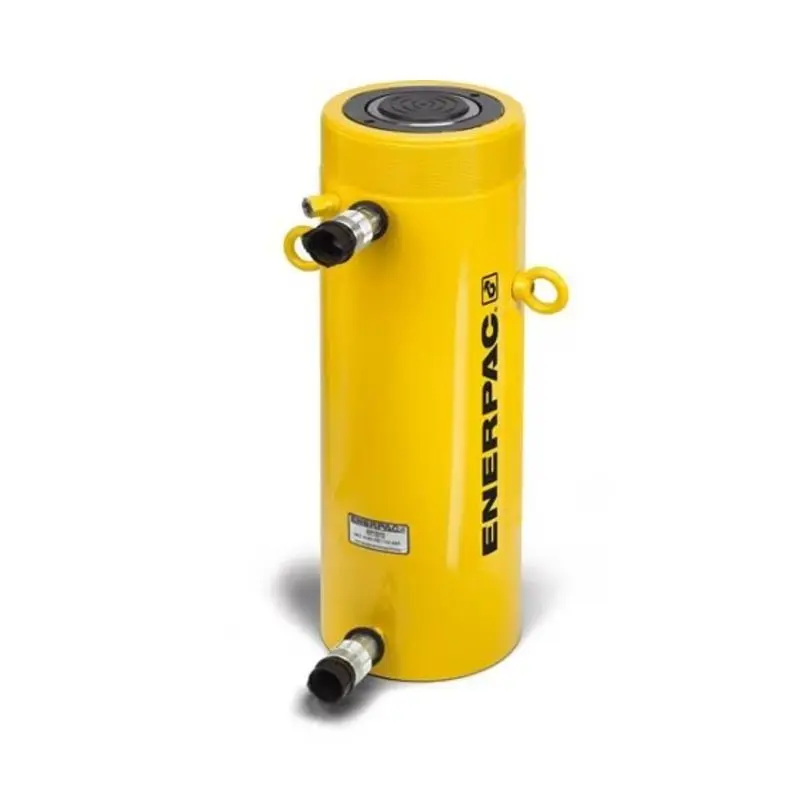

RR2006 1995 kN Capacity, 152 mm Stroke, Double-Acting, General Purpose Hydraulic Cylinder

Enerpac RR2006 is a versatile double-acting general-purpose hydraulic cylinder designed for pushing and pulling applications in industrial maintenance, construction, and heavy-duty tasks. With a 221-ton (1995 kN) advance capacity and 152 mm stroke, this solid-plunger model provides maximum power and control, operating at up to 10,000 psi with built-in safety features like relief valves and a corrosion-resistant baked enamel finish for enhanced durability and reliability in demanding environments.

• Product Overview
  • Name: Enerpac RR2006 Double-Acting General Purpose Hydraulic Cylinder
  • Type: Double-acting, solid plunger cylinder
  • Primary Applications: Pushing, pulling, lifting, and pressing in versatile industrial setups
  • Force Output: 221 tons (1995 kN) advance capacity; 112.5 tons (1004 kN) retract capacity
  • Stroke: 152 mm (6.00 in)
  • Retraction Mechanism: Hydraulic return
  • Operating Pressure: Maximum 10,000 psi (700 bar)
  • Collapsed Height: 430 mm (16.94 in)
• Technical Specifications
  • Capacity (Advance): 221 tons (1995 kN)
  • Capacity (Retract): 112.5 tons (1004 kN)
  • Maximum Operating Pressure: 10,000 psi (700 bar)
  • Stroke: 152 mm (6.00 in)
  • Collapsed Height (A): 430 mm (16.94 in)
  • Extended Height (B): 583 mm (22.94 in)
  • Outside Diameter (D): 247 mm (9.75 in)
  • Bore Diameter (E): 190.5 mm (7.50 in)
  • Plunger Diameter (F): 133.4 mm (5.25 in)
  • Effective Area (Advance): 285 cm² (44.21 in²)
  • Effective Area (Retract): 145 cm² (22.50 in²)
  • Oil Capacity (Advance): 4,348 cm³ (265.28 in³)
  • Oil Capacity (Retract): 2,212 cm³ (135.00 in³)
  • Weight: 147 kg (325 lbs)
  • Base to Advance Port (H): 57 mm (2.25 in)
  • Top to Retract Port (I): 96 mm (3.81 in)
  • Saddle Diameter (J): 133 mm (5.25 in)
  • Saddle Protrusion from Plunger (K): 22 mm (0.88 in)
  • Series: RR Series Double-Acting Cylinders
• Key Features
  • Double-acting operation for maximum power and controlled retraction
  • Collar threads, plunger threads, and base mounting holes for easy fixturing
  • Baked enamel finish for increased corrosion resistance
  • Removable hardened saddles protect plunger during lifting and pressing
  • Built-in safety valve prevents accidental over-pressurization
  • Plunger wiper reduces contamination, extending cylinder life
  • Includes CR-400 couplers and dust caps
