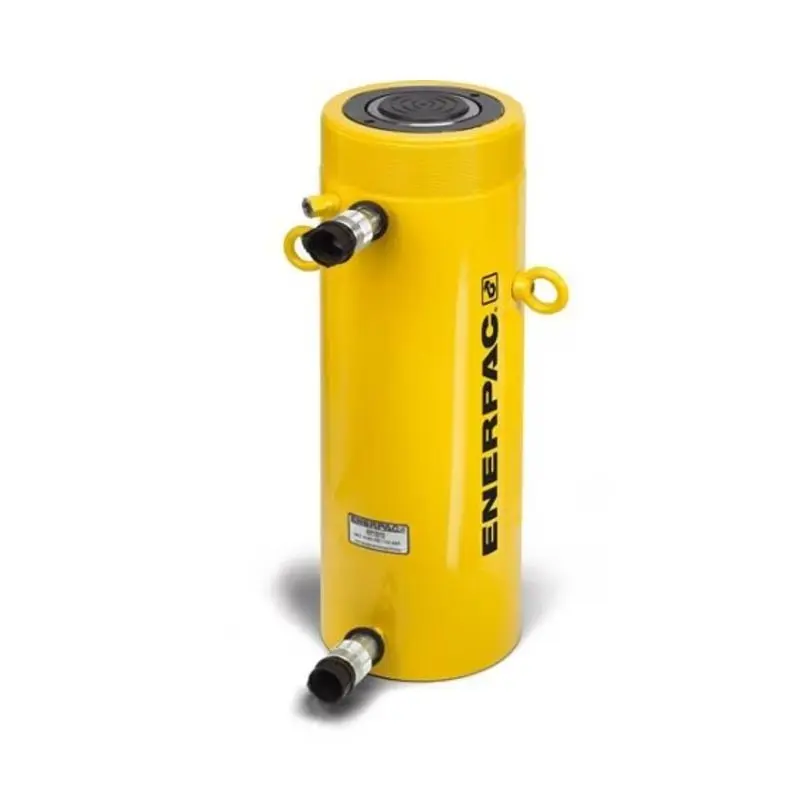

RR10018 933 kN Capacity, 460 mm Stroke, Double-Acting, General Purpose Hydraulic Cylinder

Enerpac RR10018 is a versatile double-acting general-purpose hydraulic cylinder designed for pushing and pulling applications in industrial maintenance, construction, and heavy-duty tasks. With a 103.2-ton (933 kN) advance capacity and 460 mm stroke, this solid-plunger model provides maximum power and control, operating at up to 10,000 psi with built-in safety features like relief valves and a corrosion-resistant baked enamel finish for enhanced durability and reliability in demanding environments.

• Product Overview
  • Name: Enerpac RR10018 Double-Acting General Purpose Hydraulic Cylinder
  • Type: Double-acting, solid plunger cylinder
  • Primary Applications: Pushing, pulling, lifting, and pressing in versatile industrial setups
  • Force Output: 103.2 tons (933 kN) advance capacity; 48 tons (427 kN) retract capacity
  • Stroke: 460 mm (18.13 in)
  • Retraction Mechanism: Hydraulic return
  • Operating Pressure: Maximum 10,000 psi (700 bar)
  • Collapsed Height: 687 mm (27.06 in)
• Technical Specifications
  • Capacity (Advance): 103.2 tons (933 kN)
  • Capacity (Retract): 48 tons (427 kN)
  • Maximum Operating Pressure: 10,000 psi (700 bar)
  • Stroke: 460 mm (18.13 in)
  • Collapsed Height (A): 687 mm (27.06 in)
  • Extended Height (B): 1148 mm (45.19 in)
  • Outside Diameter (D): 178 mm (7 in)
  • Bore Diameter (E): 130 mm (5.13 in)
  • Plunger Diameter (F): 95 mm (3.75 in)
  • Effective Area (Advance): 133 cm² (20.64 in²)
  • Effective Area (Retract): 62 cm² (9.6 in²)
  • Oil Capacity (Advance): 6136 cm³ (374.44 in³)
  • Oil Capacity (Retract): 2851 cm³ (174 in³)
  • Weight: 118 kg (260 lbs)
  • Series: RR Series Double-Acting Cylinders
• Key Features
  • Double-acting operation for maximum power and controlled retraction
  • Collar threads, plunger threads, and base mounting holes for easy fixturing
  • Baked enamel finish for increased corrosion resistance
  • Removable hardened saddles protect plunger during lifting and pressing
  • Built-in safety valve prevents accidental over-pressurization
  • Plunger wiper reduces contamination, extending cylinder life
  • Includes CR-400 couplers and dust caps
