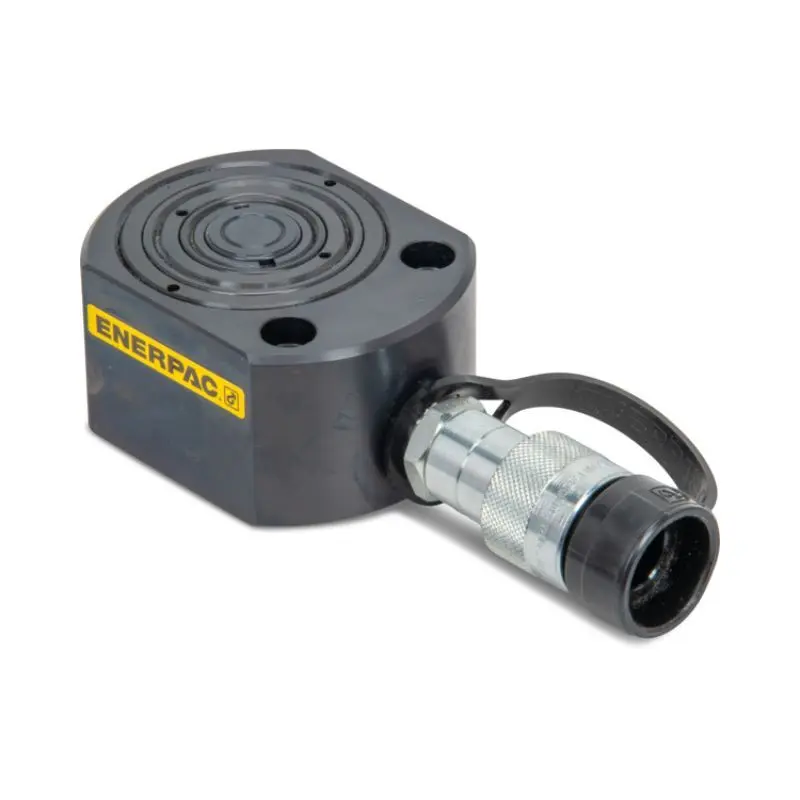

RLT40 43 kN Capacity, 17 mm Stroke, Low Height Multi-stage, Telescopic Hydraulic Cylinder

Enerpac RLT40 is a compact, low-height 2-stage telescopic hydraulic cylinder ideal for precise lifting and positioning in extremely confined spaces, such as machinery alignment or tool fastening. Delivering a maximum capacity of 4.8 tons (43 kN) over a 17 mm stroke, this single-acting, load-return model operates at up to 10,150 psi with nitrocarburized high-alloy steel for superior corrosion and wear resistance, ensuring safe and efficient performance in industrial environments where traditional cylinders cannot fit.

• Product Overview
  • Name: Enerpac RLT40 Low Height Multi-stage Telescopic Hydraulic Cylinder
  • Type: Single-acting, 2-stage telescopic cylinder with load return
  • Primary Applications: Machinery positioning, tool fastening, and lifting in confined spaces
  • Force Output: 4.8 tons (43 kN) at maximum stroke
  • Stroke: 17 mm (0.67 in) total
  • Stages: 2 stages, with 11 mm (0.43 in) and 6 mm (0.24 in) strokes per stage
  • Operating Pressure: Maximum 10,150 psi (700 bar)
  • Collapsed Height: 45 mm (1.77 in) minimum
• Technical Specifications
  • Capacity (Stage 1): 12.5 tons (111 kN)
  • Capacity (Stage 2): 4.8 tons (43 kN)
  • Maximum Operating Pressure: 10,150 psi (700 bar)
  • Total Stroke: 17 mm (0.67 in)
  • Collapsed Height (A): 45 mm (1.77 in)
  • Extended Height (B): 62 mm (2.44 in)
  • Oil Capacity (Advance): 21 cm³ (1.29 in³)
  • Weight: 1.8 kg (4.0 lbs)
  • Outside Diameter (D): 83 x 56 mm (3.27 x 2.20 in)
  • Base to Advance Port (H): 20 mm (0.79 in)
  • Body Material: High-alloy steel with nitrocarburized surface treatment
  • Side-Load Capacity: Up to 3% of maximum capacity
  • Series: RLT Series Low-Height Telescopic Cylinders
• Key Features
  • Low-profile design enables use in tight clearances where standard cylinders fail
  • Nitrocarburized treatment inside and out for corrosion protection and harsh-condition durability
  • Mounting bolt holes for secure and simple fixturing
  • Load return mechanism for rapid retraction and efficiency
  • High-alloy steel construction for maximum strength and safety
  • Integrated CR-400 coupler for compatibility with standard pumps
  • Complies with ASME B30.1 and EN1494 safety standards
