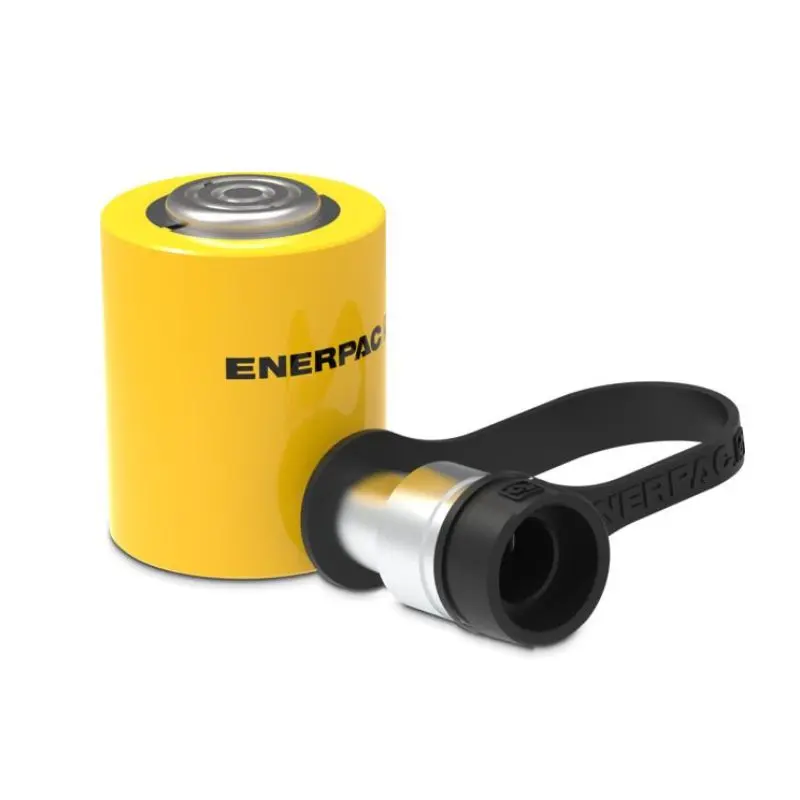

RCS201 201 kN Capacity, 45 mm Stroke, Low Height Hydraulic Cylinder

Enerpac RCS201 is a compact, low-profile hydraulic cylinder engineered for high-force applications in extremely confined spaces, such as under heavy machinery or in production environments where clearance is minimal. Delivering a 22-ton (201 kN) capacity over a 45 mm stroke, this single-acting, spring-return model operates reliably at up to 10,000 psi, featuring a flat design with integrated mounting holes and a powerful return spring for enhanced efficiency and safety in industrial lifting and pushing tasks.

• Product Overview
  • Name: Enerpac RCS201 Low Height Hydraulic Cylinder
  • Type: Single-acting, spring-return low-height hydraulic cylinder
  • Primary Applications: Lifting and pushing in tight spaces, such as under machinery or in production setups
  • Force Output: 22 tons (201 kN)
  • Stroke: 45 mm (1.77 in)
  • Retraction Mechanism: Spring return
  • Operating Pressure: Maximum 10,000 psi (700 bar)
  • Collapsed Height: 99 mm (3.88 in)
• Technical Specifications
  • Capacity: 22 tons (201 kN)
  • Maximum Operating Pressure: 10,000 psi (700 bar)
  • Stroke: 45 mm (1.77 in)
  • Collapsed Height (A): 99 mm (3.88 in)
  • Extended Height (B): 143 mm (5.63 in)
  • Outside Dimensions (D): 92 mm (3.63 in)
  • Bore Diameter (E): 60.5 mm (2.38 in)
  • Plunger Diameter (F): 50.8 mm (2.00 in)
  • Effective Area: 28.6 cm² (4.43 in²)
  • Oil Capacity (Advance): 127 cm³ (7.75 in³)
  • Weight: 5 kg (11 lbs)
  • Series: RCS Series Low Height Cylinders
• Key Features
  • Low-profile, flat design for access to confined areas where other cylinders cannot fit
  • Integrated mounting holes for secure fixturing
  • Grooved plunger ends eliminate the need for a saddle and allow mounting of tilt saddle
  • Corrosion-resistant baked enamel finish
  • Chrome-plated plunger for durability and smooth operation
  • Powerful return spring for faster retraction
  • Plunger wiper reduces contamination, extending cylinder life
  • Includes CR-400 coupler and dust cap
