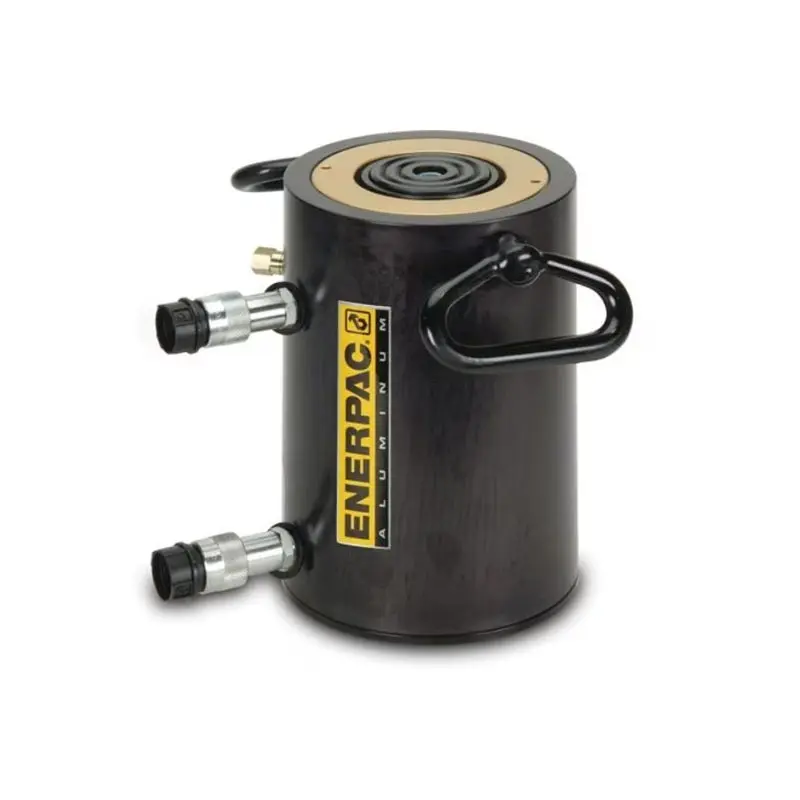

RAR1008 1002 kN Capacity, 200 mm Stroke, Double-Acting, Aluminum Hydraulic Cylinder

Enerpac RAR1008 is a lightweight, double-acting aluminum hydraulic cylinder designed for high-force pushing and pulling in confined spaces, ideal for industrial maintenance, construction, and tensioning tasks. With a 112.9-ton (1002 kN) advance capacity and 200 mm stroke, this model offers rapid hydraulic retraction independent of hose length, operating at up to 10,000 psi with an integral stop ring for over-travel protection, composite bearings for side-load resistance, and a hard anodized finish for superior corrosion resistance and durability in harsh environments.

• Product Overview
  • Name: Enerpac RAR1008 Double-Acting Aluminum Hydraulic Cylinder
  • Type: Double-acting, hydraulic return solid plunger cylinder
  • Primary Applications: Pushing, pulling, tensioning, and maintenance in versatile industrial setups
  • Force Output: 112.9 tons (1002 kN) advance capacity; 60 tons (534 kN) retract capacity
  • Stroke: 200 mm (7.87 in)
  • Retraction Mechanism: Hydraulic return
  • Operating Pressure: Maximum 10,000 psi (700 bar)
  • Collapsed Height: 401 mm (15.8 in)
• Technical Specifications
  • Capacity (Advance): 112.9 tons (1002 kN)
  • Capacity (Retract): 60 tons (534 kN)
  • Maximum Operating Pressure: 10,000 psi (700 bar)
  • Stroke: 200 mm (7.87 in)
  • Collapsed Height (A): 401 mm (15.8 in)
  • Extended Height (B): 601 mm (23.66 in)
  • Outside Diameter (D): 178 mm (7 in)
  • Bore Diameter (E): 130 mm (5.12 in)
  • Plunger Diameter (F): 95 mm (3.74 in)
  • Effective Area (Advance): 143 cm² (22.16 in²)
  • Effective Area (Retract): 76 cm² (11.78 in²)
  • Oil Capacity (Advance): 2863 cm³ (174.64 in³)
  • Oil Capacity (Retract): 1520 cm³ (92.77 in³)
  • Weight: 25.1 kg (55.3 lbs)
  • Series: RAR Series Double-Acting Aluminum Cylinders
• Key Features
  • Double-acting operation for fast, controlled retraction regardless of hose length
  • Lightweight aluminum body reduces weight by up to 40% compared to steel equivalents
  • Hard anodized finish and chrome-plated plunger for corrosion resistance and smooth operation
  • Integral stop ring prevents plunger over-extension and handles full capacity
  • Composite bearings provide high side-load resistance (up to 10%)
  • Grooved and threaded plunger ends for easy attachment of tilt saddles or accessories
  • Built-in relief valve safeguards against over-pressurization
  • Steel base plate and saddle protect against load damage
  • Includes CR-400 couplers and dust caps for immediate use
