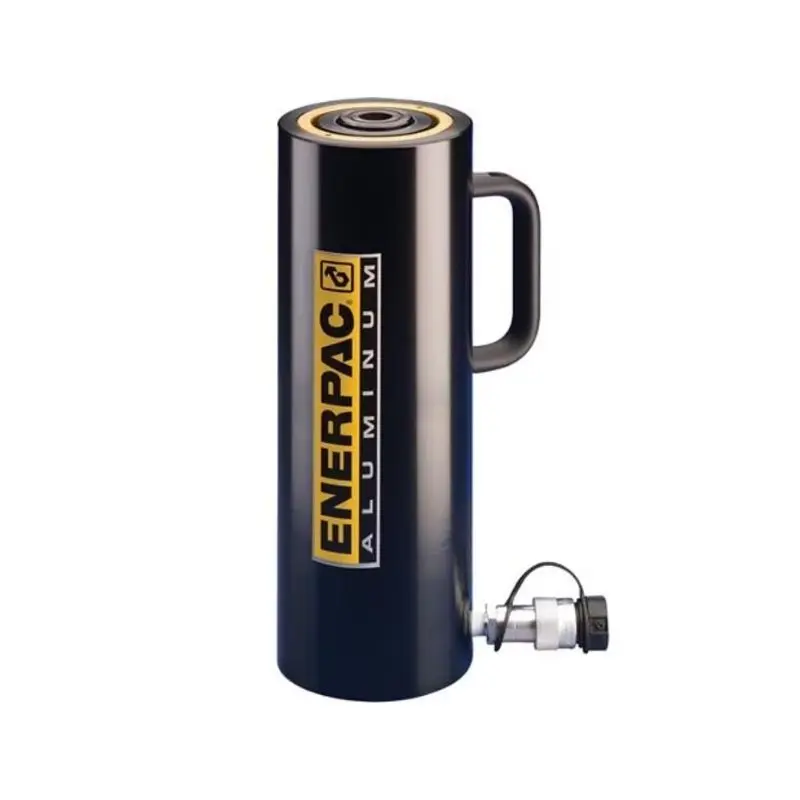

RAC208 218 kN Capacity, 200 mm Stroke, Aluminum Hydraulic Cylinder

Enerpac RAC208 is a lightweight, single-acting aluminum hydraulic cylinder designed for versatile general-purpose applications, including lifting, pushing, and maintenance tasks in industrial and construction settings. With a 24.5-ton (218 kN) capacity and 200 mm stroke, this compact model delivers reliable performance at up to 10,000 psi, featuring alloy steel construction, a grooved plunger for easy saddle attachment, and built-in safety relief valves for enhanced durability and user safety in everyday operations.

• Product Overview
  • Name: Enerpac RAC208 Aluminum Hydraulic Cylinder
  • Type: Single-acting, spring-return solid plunger cylinder
  • Primary Applications: Industrial lifting, pushing, bolting, and maintenance tasks
  • Force Output: 24.5 tons (218 kN)
  • Stroke: 200 mm (7.87 in)
  • Retraction Mechanism: Spring return
  • Operating Pressure: Maximum 10,000 psi (700 bar)
  • Collapsed Height: 301 mm (11.85 in)
• Technical Specifications
  • Capacity: 24.5 tons (218 kN)
  • Maximum Operating Pressure: 10,000 psi (700 bar)
  • Stroke: 200 mm (7.87 in)
  • Collapsed Height (A): 301 mm (11.85 in)
  • Extended Height (B): 501 mm (19.72 in)
  • Outside Diameter (D): 113 mm (4.45 in)
  • Bore Diameter (E): 63 mm (2.48 in)
  • Plunger Diameter (F): 40 mm (1.58 in)
  • Effective Area (Advance): 31.2 cm² (4.83 in²)
  • Oil Capacity (Advance): 624 cm³ (38.08 in³)
  • Weight: 8.6 kg (19 lbs)
  • Series: RAC Series Aluminum Cylinders
• Key Features
  • Single-acting design with spring return for efficient and controlled operation
  • Lightweight aluminum construction for superior portability and ease of handling
  • Alloy steel plunger for maximum strength and longevity
  • Grooved plunger allows for easy mounting of tilt saddles without additional hardware
  • Built-in relief valves prevent over-pressurization for enhanced safety
  • Hard anodized finish provides corrosion resistance in harsh conditions
  • Chrome-plated plunger ensures smooth action and reduced wear
  • Includes CR-400 coupler and dust cap for immediate compatibility and protection
  • Plunger wiper minimizes contamination to extend service life
