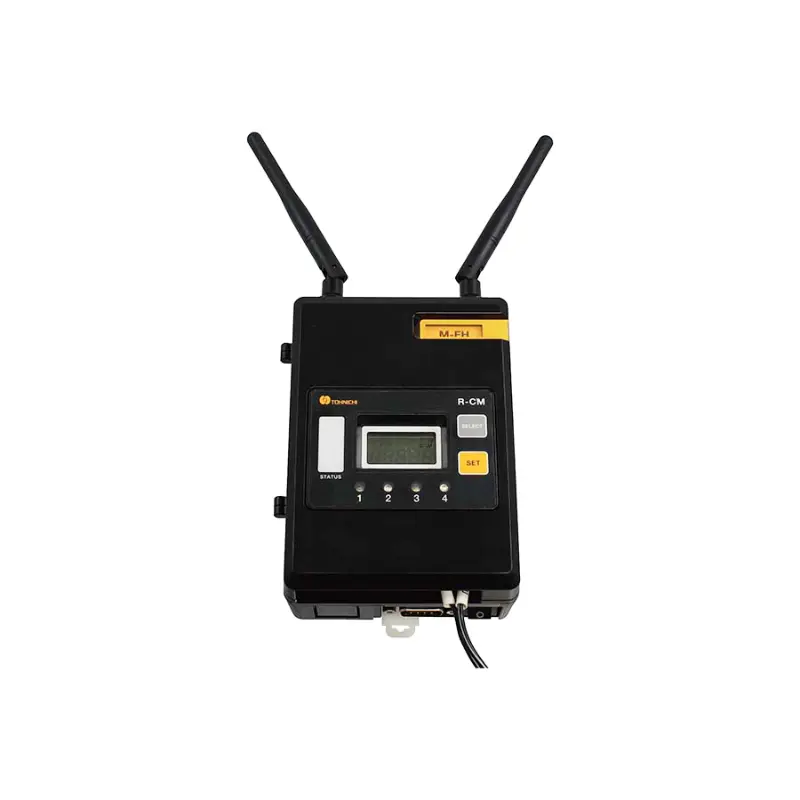

R-FDSET-AC Wireless Receiver FD Module

Tohnichi R-FDSET-AC is a comprehensive wireless receiver set engineered for error-proofing and data management in high-volume assembly environments such as automotive production, electronics manufacturing, and general industrial lines. Comprising the R-CM modular receiver, M-FD wireless module for torque data transfer, and BA-8R AC power supply, this kit enables seamless integration with FD, FDD, and FDD-AD series wireless torque tools, providing real-time tightening verification, RS-232C data output, and interchangeable module upgrades for flexible system evolution. Conforming to global wireless standards (TELEC, FCC, IC, EU), it supports quick pairing and robust signal transmission up to 10m, minimizing downtime and ensuring compliance in torque-controlled workflows.

Key Performance Specifications

• Compatibility: FD, FDD, FDD-AD series wireless torque tools; R-CM with M-FD module
• Wireless Standards: TELEC (Japan), FCC (U.S.), IC (Canada), EU (Europe)
• Transmission Range: Up to 10 m (line-of-sight; expandable with repeaters)
• Data Output: RS-232C for PC/software integration; supports torque values, judgments, and timestamps
• Error-Proofing Functions: Tightening completion signals, sequence control, and pass/fail judgments

Physical and Environmental Specifications

• Dimensions: 12.5" L x 10.5" W x 3" H (318 mm x 267 mm x 76 mm)
• Weight: 3.2 lbs (1.45 kg) including components
• Power Supply: BA-8R AC adapter (100-240V, 50/60 Hz); optional DC 24V
• Operating Temperature: 32°F to 104°F (0°C to 40°C); suitable for industrial settings
• Mounting: DIN rail or panel mount (35 mm rail compatible)
• Storage Conditions: Dry environment to prevent corrosion; indefinite shelf life

Key Features

• Modular Interchangeable Design: Quick-swap M-FD module converts R-CM from basic signal receiver to full torque data system without tools
• Global Wireless Compliance: Certified for international use, ensuring reliable 2.4 GHz transmission in diverse regulatory environments
• RS-232C Connectivity: Direct serial output for logging tightening data to PC or PLC, with Excel-compatible formats for traceability
• Error-Proofing Integration: Receives completion signals from up to multiple tools, enabling sequence enforcement and real-time alerts
• AC Power Inclusion: BA-8R adapter provides stable operation; compact set for easy bench or panel deployment
• Applications: Optimized for wireless torque tool management in automotive assembly, electronics production, and quality auditing; excels in data-driven error prevention
