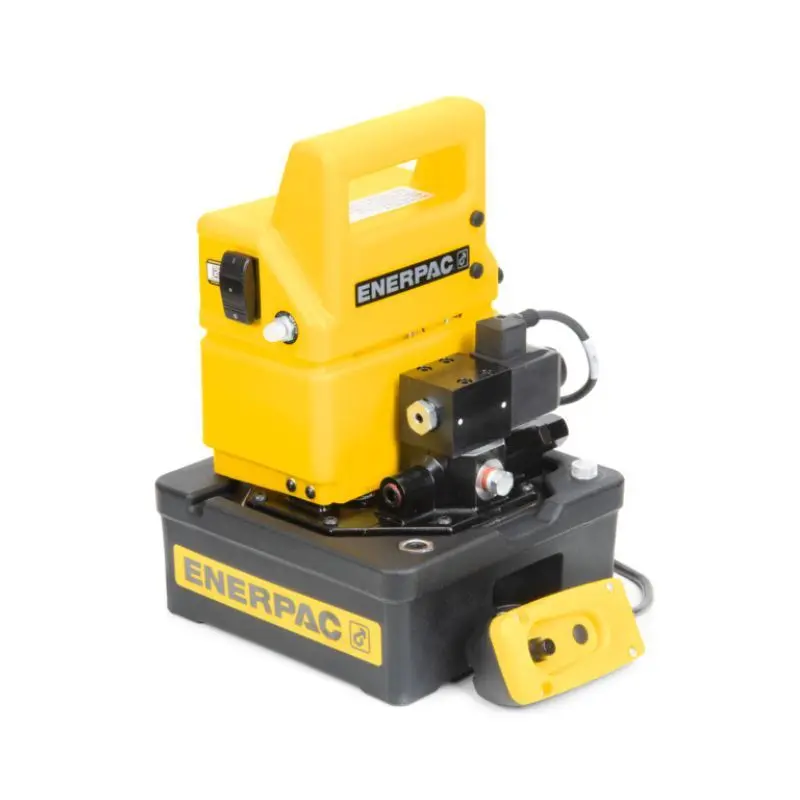

PUD1101E, Two Speed, Economy Electric Hydraulic Pump, Dump Valve, 230V, For use with Single-Acting Cylinders

Enerpac PUD1101E Two Speed Economy Electric Hydraulic Pump Dump Valve 230V For use with Single-Acting Cylinders is a lightweight, cost-effective electric hydraulic pump designed for reliable operation in industrial maintenance and assembly tasks requiring single-acting cylinder control. Featuring two-speed technology for rapid low-pressure advance and high-pressure efficiency up to 10,000 psi, this economy model includes a 3-way dump valve for quick pressure release, 3.78 L usable oil reservoir, and a 1/2 hp universal motor for consistent performance on 230V power, ensuring fast cycle times and simple setup without the need for advanced controls.

• Model Number: PUD1101E
• Product Type: Economy Electric Hydraulic Pump (Two-Speed, Dump Valve)
• Color: Silver/Gray
• Material: Fiberglass Reinforced Polyamide Reservoir with Steel Components
• Capacity: 1/2 hp Universal Motor, 10,000 psi (700 bar) Maximum Pressure
• Oil Capacity: 3.78 L (1 gal / 231 cu in) Usable
• Valve Type: 3-Way Dump Valve for Single-Acting Cylinders
• Flow Rate: 20 cu in/min (0.33 L/min) at 10,000 psi
• Voltage: 230V AC, 50/60 Hz, 9.5 A
• Power Pack: N/A (Direct Electric)
• Control System: Dump Valve with Pendant
• Weight (Net): 17.2 kg / 38 lbs
• Dimensions: Length: 368 mm (14.5"), Width: 309 mm (12.2"), Height: 373 mm (14.7")
• Overview: Cost-effective two-speed electric pump for efficient single-acting applications; ideal for workshops and field use with dump valve for quick retraction and reliable economy design for small to medium cylinders
• Key Features:
  • Two-speed operation reduces cycle time with high initial flow for quick positioning and sustained power under load
  • Dump valve enables rapid pressure release for safe, efficient retraction of single-acting cylinders
  • Lightweight fiberglass reservoir enhances portability while providing ample 3.78 L capacity for extended runs
  • Universal motor operates on 50/60 Hz for global compatibility, with thermal protection for safe, overload-free performance
  • Economy design offers value without compromising Z-Class quality, with sight glass for easy oil level monitoring
