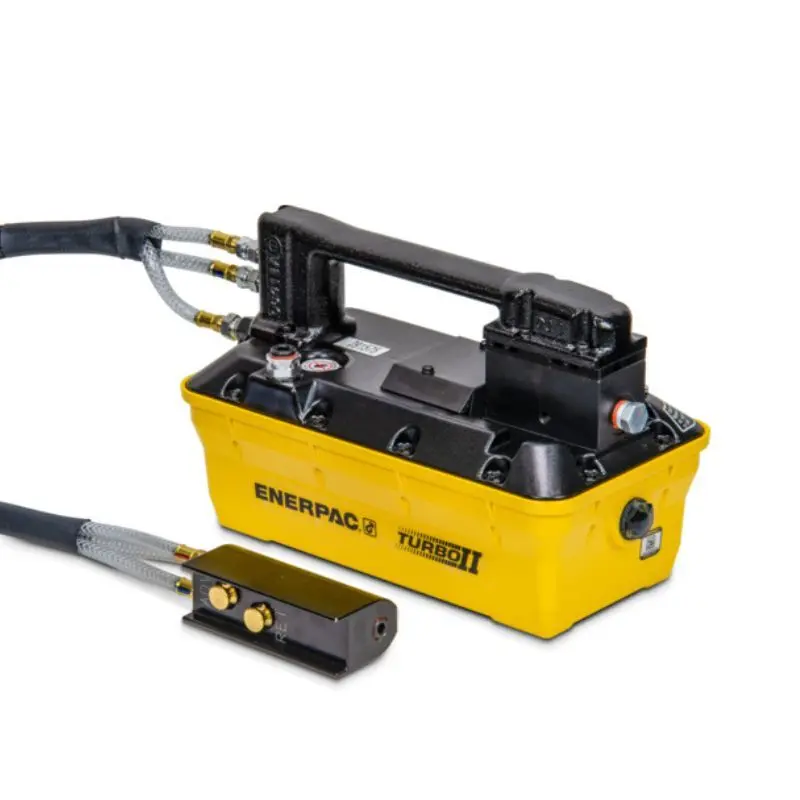

PARG1105N Turbo II Air Hydraulic Pump, 3/3 Manual Valve with Pendant, 3770 cm3 Usable Oil, For use with Single-Acting Cylinders

Enerpac PARG1105N Turbo II Air Hydraulic Pump, 3/3 Manual Valve with Pendant, 3770 cm3 Usable Oil, For use with Single-Acting Cylinders is a high-efficiency, air-powered hydraulic pump designed for reliable operation in industrial maintenance and assembly tasks requiring single-acting cylinder control. Featuring Turbo II two-speed technology for rapid low-pressure advance and high-pressure efficiency up to 10,000 psi, this pump includes a 3-way 3-position manual valve with pendant for advance/hold/retract functions, 3770 cm³ (230 in³) usable oil reservoir, and operates on compressed air (40-125 psi) for portable, explosion-proof performance in hazardous environments, ensuring fast cycle times, reduced air consumption, and consistent power delivery without electrical hazards.

• Model Number: PARG1105N
• Product Type: Turbo II Air Hydraulic Pump (Two-Speed, 3/3 Manual Valve with Pendant)
• Color: Silver/Gray
• Material: Reinforced heavy-duty lightweight reservoir with cast aluminum air motor and hardened components
• Capacity: 10,000 psi (700 bar) Maximum Operating Pressure
• Oil Capacity: 3770 cm³ (230 in³) Usable
• Valve Type: 3-Way, 3-Position Manual with Pendant (Advance/Hold/Retract)
• Flow Rate: 60 in³/min (0.98 L/min) No Load; 10 in³/min (0.16 L/min) at Rated Pressure
• Air Consumption: 12 SCFM
• Air Pressure Range: 40-125 psi (2.8-8.6 bar)
• Sound Level: 76 dBA
• Weight (Net): 25 kg / 55 lbs
• Dimensions: Length: 437 mm (17.2"), Width: 201 mm (7.9"), Height: 209 mm (8.2")
• Overview: High-flow air hydraulic pump with two-speed operation for efficient single-acting cylinder use; ideal for remote or hazardous sites with air power, providing rapid cycles, low noise, and Turbo II reliability for maintenance tasks
• Key Features:
  • Pendant-operated manual valve for ergonomic, remote control in demanding environments
  • Air Saver Piston reduces air consumption and operating costs while enabling start-up at low pressures
  • Internal pressure relief valve provides overload protection, with external adjustable relief for customization
  • Reinforced reservoir for tough applications, with return-to-tank port for remote valve setups
  • Compatible with Enerpac RC-series single-acting cylinders and tools for versatile industrial applications
