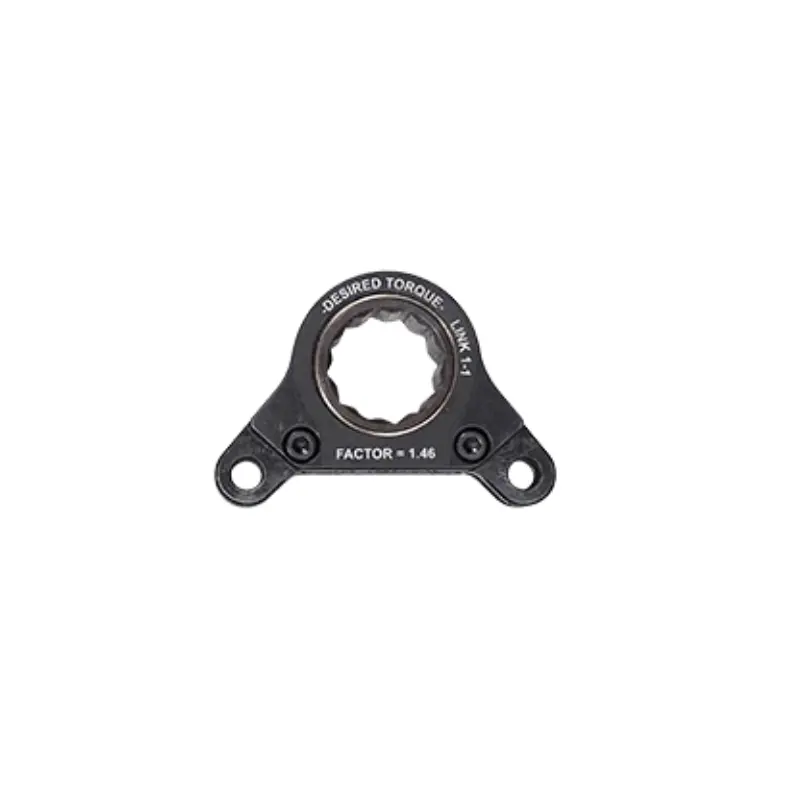

OL1-113X Link 1, Cartridge 4, 1-13/16" Hex Size

HYTORC OL1-113X (Offset Link Cartridge - 3/4" Square Drive):

• Type: Interchangeable cartridge for OL1 series Offset Link (standard OL model). Converts 3/4" square drive torque tools into a low-profile offset/ratchet-style wrench for tight spaces or protruding bolts.
• Hex Size: 1-13/16" (approx. 46 mm).
• Torque Multiplication Factor: 1.12 (tool torque setting = desired torque × factor).
• Compatibility: Fits OL1-A0100 fixed body (3/4" square drive tools such as jGun, LST Lithium Series, ICE, etc.).
• Key Features:
  • 12-point hex pattern for positive engagement.
  • Part of interchangeable cartridge system (easy field swap).
  • Used with removable reaction arm (standard OL model).
  • Robust tempered chrome-moly steel construction.
• Typical Dimensions (with OL1 body, approx.):
  • Height (H): ~37 mm (1.47").
  • Width (W): 107 mm (4.22").
  • Length (L): ~220 mm (8.67").
  • Radius (R): ~37 mm (1.47").
  • Offset (O): ~131 mm (5.16").
