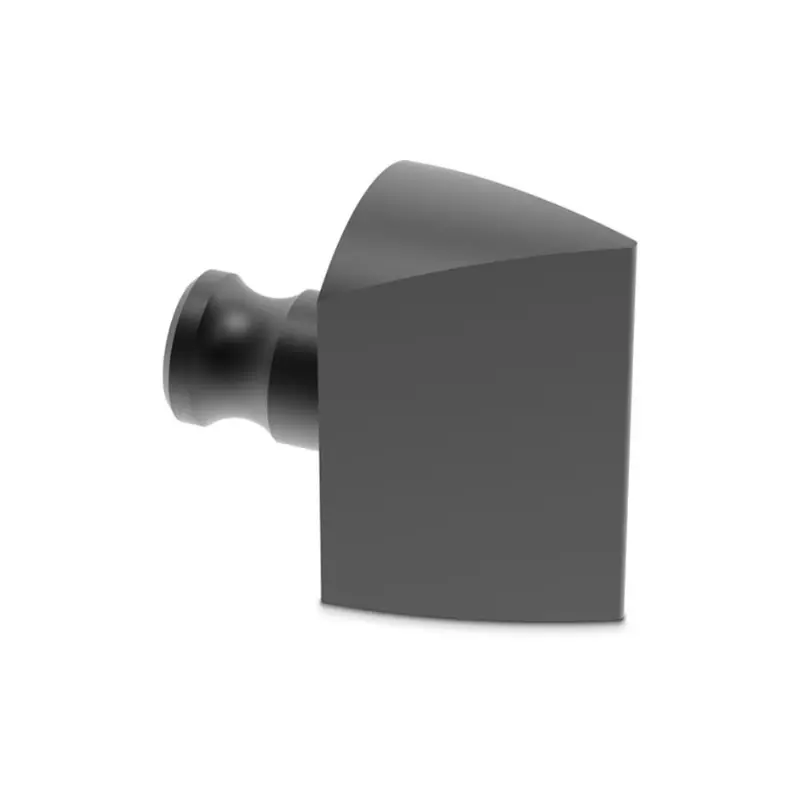

NSH5065CTK, NSH5065 Nut Splitter Cutting Tip Service Kit

Enerpac NSH5065CTK is a dedicated service kit for the NSH5065 hydraulic nut splitter, providing essential replacement components to restore cutting performance and extend tool life in demanding applications like pipeline maintenance and flange servicing. This kit supports safe, efficient nut splitting without bolt damage, featuring hardened steel tips compatible with ATEX-certified operations in hazardous environments, and enables quick, tool-free swaps to minimize downtime.

• Model: NSH5065CTK (Cutting Tip Service Kit for NSH5065 Nut Splitter)
• Compatibility: Exclusively for Enerpac NSH5065 36-ton hydraulic nut splitter (NSH Series); ATEX Ex II 2 G c T6 certified for Zone 1 gas/dust atmospheres
• Contents: Hardened steel cutting tip, tip retention screw, spare alignment screw, set of hexagon keys for installation
• Supported Nut Range: Hexagon nuts 2.00–2.56 in. (50–65 mm) A/F; bolt range 1-1/4–1-5/8 in. (M33–M42)
• Capacity: For 36 ton (360 kN) maximum cutting force at 10,000 psi (700 bar) operating pressure
• Material: Hardened steel cutting tip for clean, flare-free cuts on grade 8 metal nuts (max HRc-44 hardness or ASTM A194 Gr 2H); not suitable for square, star, round, or stainless steel nuts
• Features: Tool-free replacement; adjustable cutting depth and blade positioning scale to prevent bolt damage; ergonomic design for quick swaps
• Oil Capacity (Parent Tool): 5.3 in³ (87 cm³)
• Weight (Kit): ~0.9 lb. (0.41 kg); parent tool weight 39.7 lb. (18 kg)
• Dimensions (Parent Tool): Height 13.8 in. (351 mm), Width 7.7 in. (196 mm), Depth 6.9 in. (175 mm)
• Operator Feedback: Visual cut completion; integrated safety lanyard (FSC-1) included for secure handling
• Maintenance Features: Blades can be reground or replaced; annual seal inspection recommended; drop-tested revolving anchor point
• Additional Features: Supports single-acting spring-return operation; carrying case for portability; complies with CE-ATEX standards; optional double-acting NSPH-D for subsea use
