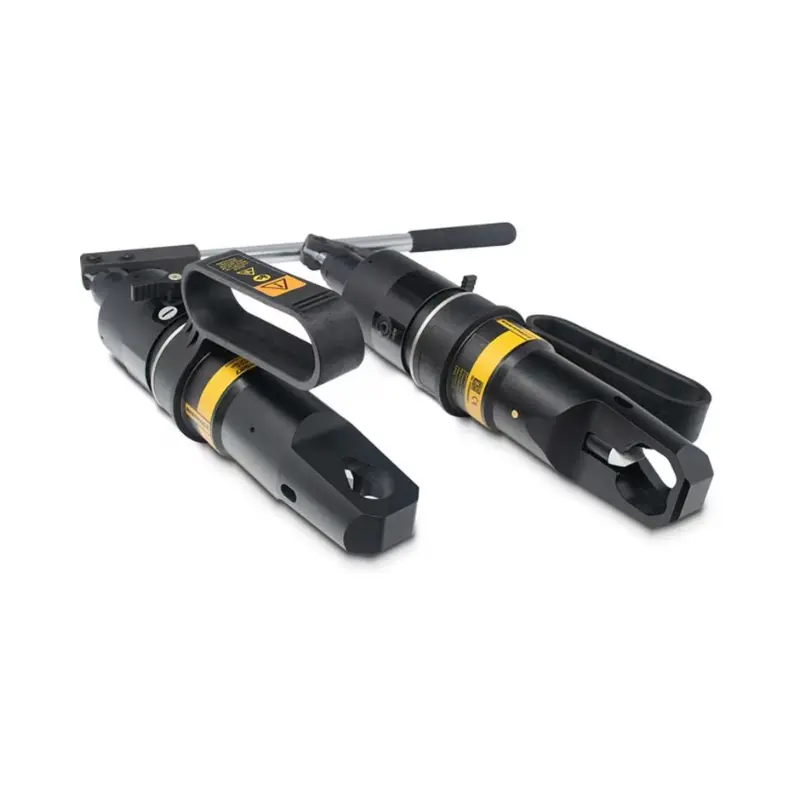

NSC1927, 120 kN Capacity, Single-Acting Nut Splitter with Integral Pump, Hexagon up to 27 mm

Enerpac NSC1927 is a compact, single-acting hydraulic nut splitter with an integrated hand pump, designed for safely splitting seized or corroded hexagon nuts up to 27 mm without damaging underlying bolts, ideal for maintenance in pipelines, flanges, construction, and industrial applications. This ergonomic, spring-return system features an adjustable hardened steel cutting tip for enhanced access in tight spaces, delivering clean, flare-free cuts with minimal flare-up risk, and supports portable, on-site operation at up to 700 bar pressure with easy blade replacement for extended tool life.

• Model: NSC1927 (Hydraulic Nut Splitter with Integral Pump)
• Capacity: 120 kN (12 tons)
• Hexagon Nut Range: 19–27 mm (0.75–1.06 in.)
• Bolt Diameter Range: M12–M16 (1/2–5/8 in.)
• Maximum Operating Pressure: 700 bar (10,000 PSI)
• Cutter Head Type: Single-acting, spring return
• Oil Capacity: 41 cm³ (2.5 in³)
• Weight: 5.5 kg (12.1 lb.)
• Dimensions: Length 370 mm (14.6 in.), Height 152 mm (6 in.), Width 81 mm (3.2 in.)
• Cutting Blade: Replaceable hardened steel tip for clean cuts; adjustable depth and positioning scale to prevent bolt damage; suitable for grade 8 metal nuts (max HRc-44 hardness or ASTM A194 Gr 2H); not for square, star, round, or stainless steel nuts
• Operator Feedback: Visual cut completion indicator; integrated pressure gauge on pump
• Maintenance Features: Tool-free blade replacement; corrosion-resistant steel construction; annual seal inspection recommended
• Additional Features: Built-in two-speed hand pump for portability; compact ergonomic design; safety lock mechanism; complies with industry standards for hydraulic tools; carrying case included
