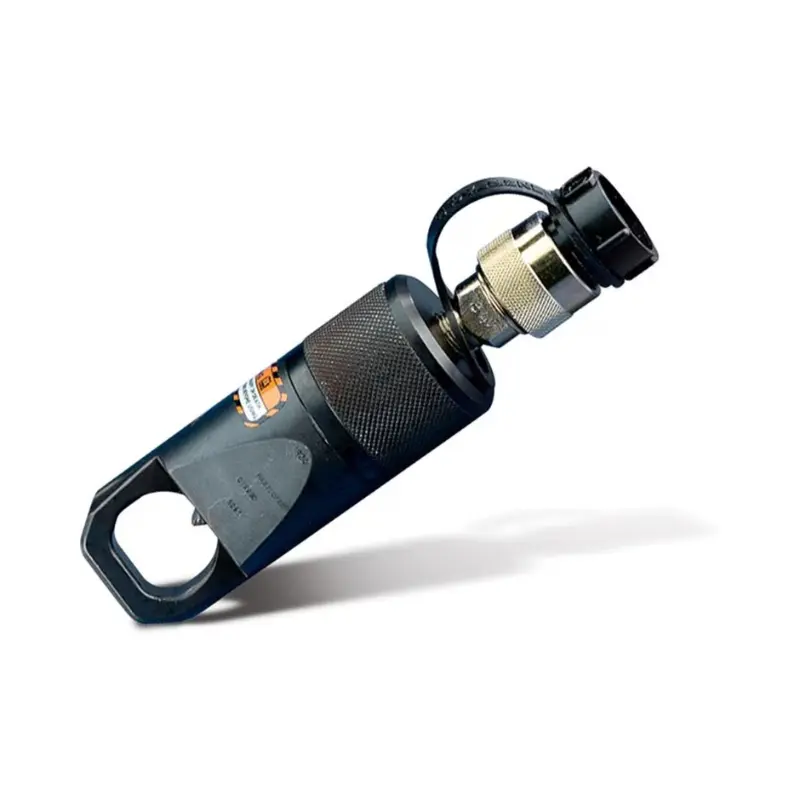

NC6075, 882 kN Capacity, Hydraulic Nut Cutter, Hexagon up to 75 mm

Enerpac NC6075 is a high-capacity hydraulic nut cutter from the NC Series, designed for safely splitting seized or corroded hexagon nuts up to 75 mm without damaging underlying bolts, ideal for maintenance in pipelines, flanges, construction, and industrial applications. This single-acting, spring-return system features an ergonomic design with a unique angled head for flush access in tight spaces, delivering clean, flare-free cuts with minimal flare-up risk, ensuring reliable performance under 700 bar pressure with heavy-duty, regroundable chisels for extended tool life.

• Model: NC6075 (Hydraulic Nut Cutter)
• Capacity: 882 kN (90 tons)
• Hexagon Nut Range: 60–75 mm (2.38–2.95 in.)
• Bolt Diameter Range: M39–M48 (1-1/2–1-7/8 in.)
• Maximum Operating Pressure: 700 bar (10,000 PSI)
• Cutter Head Type: Single-acting, spring return
• Oil Capacity: 491 cm³ (30 in³)
• Weight: 34 kg (75.1 lb.)
• Dimensions: Height 180 mm (7.09 in.), Width 156 mm (6.14 in.), Length 366 mm (14.43 in.)
• Cutting Blade: Heavy-duty hardened steel chisel (regroundable); adjustable depth and positioning scale to prevent bolt damage; suitable for grade 8 metal nuts (max HRc-44 hardness or ASTM A194 Gr 2H); not for square, star, round, or stainless steel nuts
• Operator Feedback: Visual cut completion indicator
• Maintenance Features: Tool-free chisel replacement (NCB6075 replacement chisel); corrosion-resistant steel construction; annual seal inspection recommended
• Additional Features: Unique angled head for flush access; compact ergonomic design; safety lock mechanism; complies with industry standards for hydraulic tools
