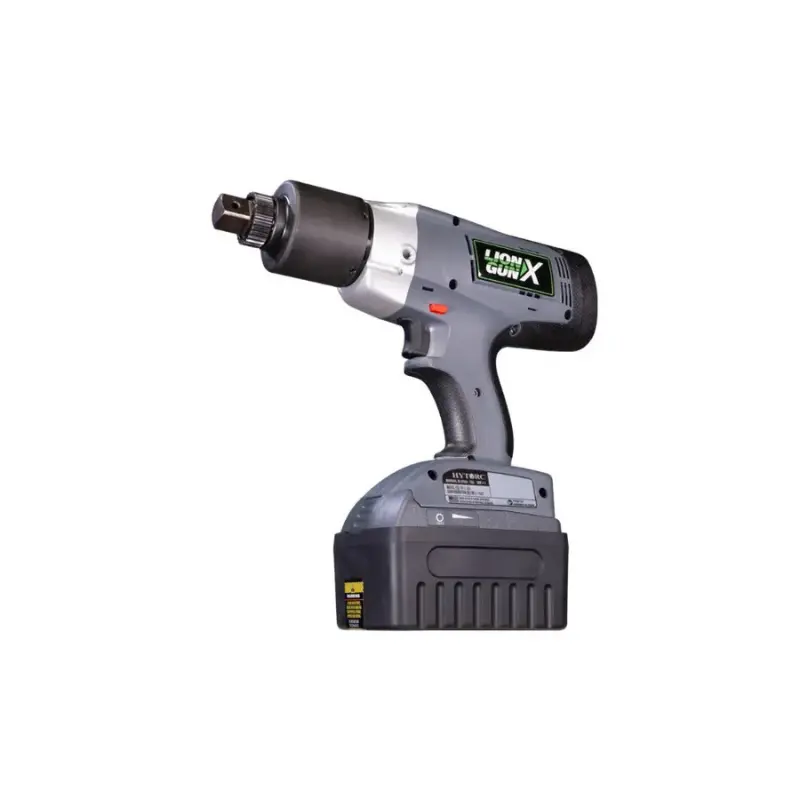

LGX-1000, 3/4" Sq Dr Battery Torque Gun, 1000 ft-lbs

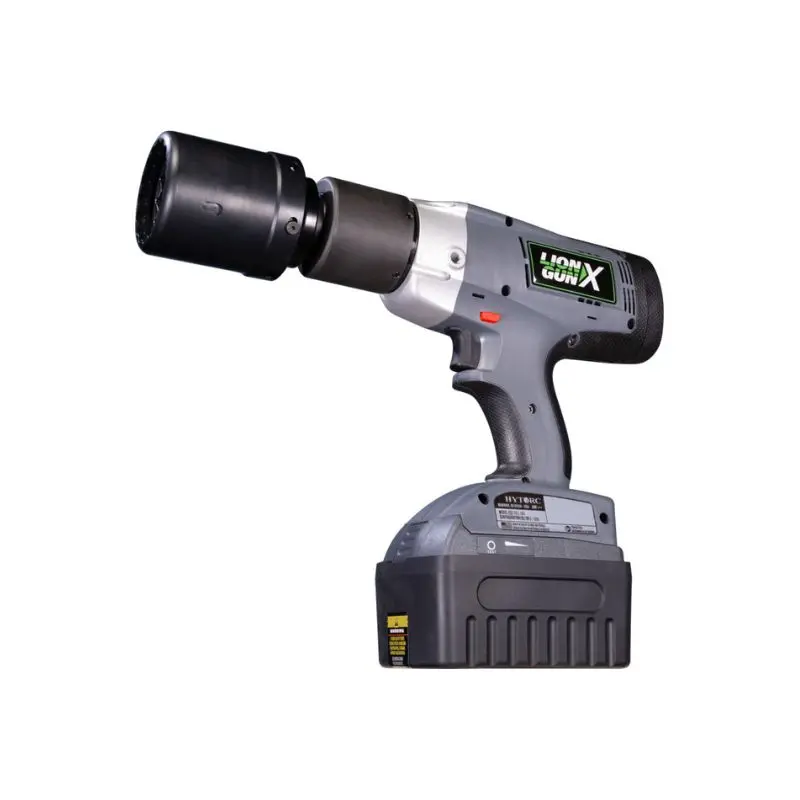

HYTORC LION GUN X LGX-1000 is a cordless, battery-powered torque gun with a 3/4" square drive, designed for precision bolting in industrial applications.

Model: LGX-1000 (LION GUN X 1000)

Type: Electric Torque Gun (Battery-Powered)

Drive Size: 3/4" Square

Torque Range:

• Imperial: 200–1000 ft-lbs
• Metric: 271–1356 N·m

Accuracy: ±5%

Weight (with Battery): 9.58 lbs (4.35 kg)

Battery: 36V Li-ion, rechargeable

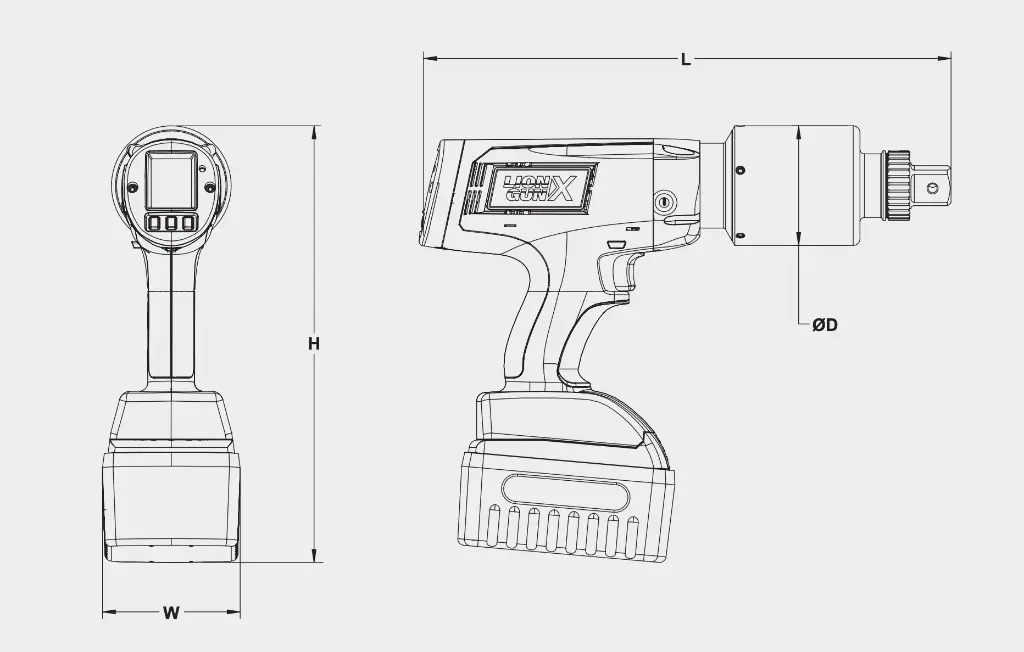

Dimensions:

• Height (H): 300 mm (11.81 in)
• Length (L): 302 mm (11.89 in)
• Width (W): 97 mm (3.82 in)

Features:

• Low Vibration Design: Reduces risk of hand-arm vibration syndrome (HAVS).
• Digital Interface: Intuitive user interface for setting torque, capturing, and storing data for quality control.
• Bluetooth Compatibility: Available on some models for data transfer via HYTORC Connect App.
• 2-Handed Safety Mode: Enhances operator safety.
• Side Safety Handle: Provides extra stability and injury prevention.
• Torque and Angle Control: Allows for precise torque and angle adjustments.
• Ergonomic Design: Comfortable grip to minimize operator fatigue.
• Wheel Bolting Fixtures: Tailored solutions for secure and efficient wheel bolting.

Complete Kit Contents:

• LION GUN X Electric Torque Tool

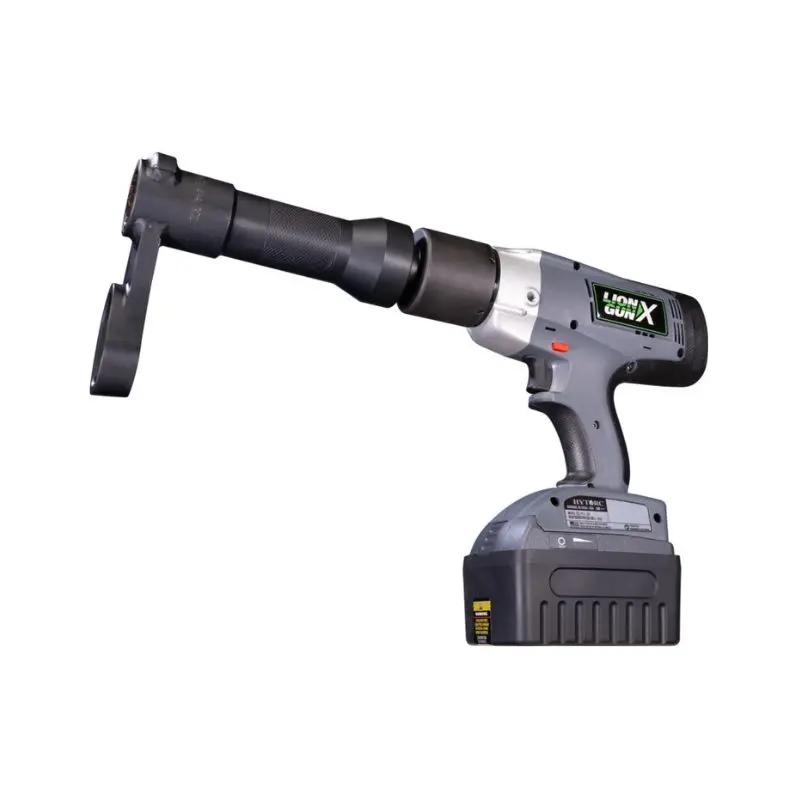

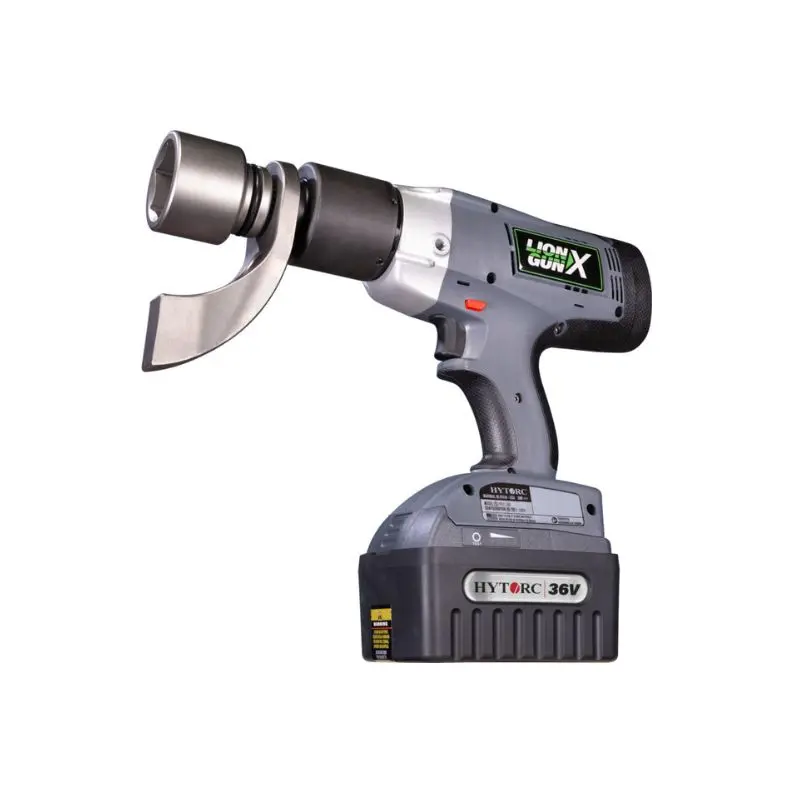

• Reaction Arm
• Storage Case
• Battery Charging System
• Calibration Certificate
• 36V Battery Pack
• Side Handle
• Operations Manual

Applications: Suitable for heavy-duty bolting in construction, automotive, and industrial tasks, offering portability and cord-free operation.

Notes:

• Compatible with conventional sockets and HYTORC square drive accessories.
• Data logging via USB or Bluetooth for analysis and reporting.

Not suitable for inspection purposes; designed for bolting applications.
