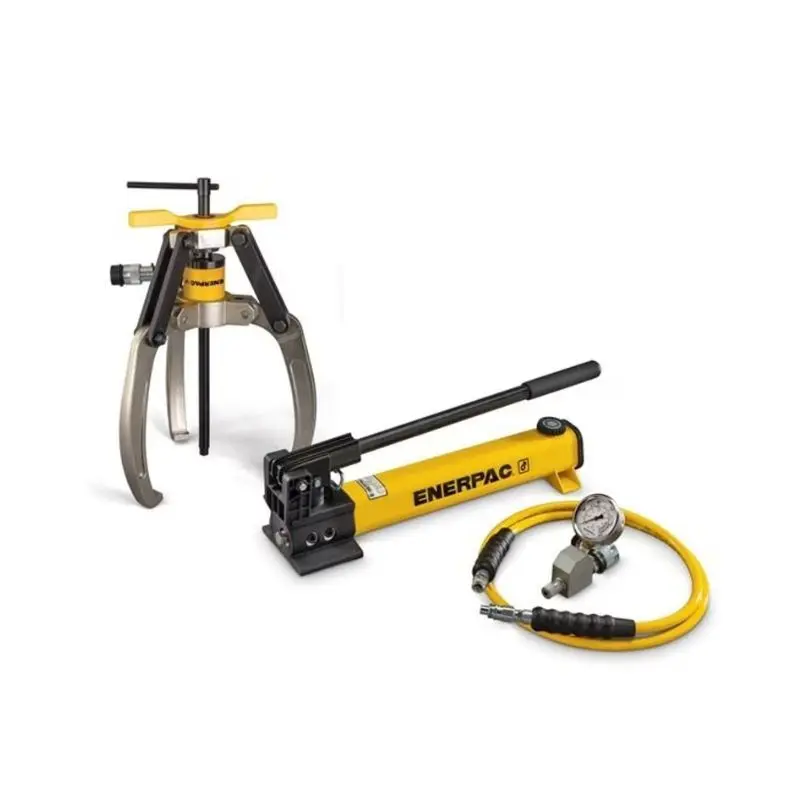

LGHS364H, 64 Ton, 3 Jaw, Hydraulic Lock-Grip Puller Set with Hand Pump

Enerpac LGHS364H 64 Ton 3 Jaw Hydraulic Lock-Grip Puller Set with Hand Pump is a robust, three-jaw hydraulic tool designed for safe and efficient removal of large shaft-mounted components like bearings, couplings, pulleys, and gears in industrial maintenance and assembly applications. Featuring a self-centering lock-grip system with synchronous jaw movement for single-operator mounting and use, lock-on jaws for secure grip, and a hydraulic cylinder powered by the included hand pump for controlled pulling up to 64 tons without external power sources, this set is ideal for versatile, high-force applications with a maximum spread of 660 mm and reach of 408 mm, ensuring damage-free extraction and including a point protector for shafts without center holes.

• Model Number: LGHS364H
• Product Type: Hydraulic Lock-Grip Puller Set (3-Jaw Configuration) with Hand Pump
• Color: Silver/Gray
• Material: Steel with hardened components
• Capacity: 64 Ton (Imperial Tons; 576 kN)
• Spread Range: 230 mm - 660 mm (9.06" - 25.98")
• Wall Thickness Capacity: N/A (suitable for various press-fitted components based on application)
• Motor Type: N/A (hydraulic hand pump operation)
• Power Pack: Included Hand Pump
• Control System: Hydraulic with self-centering lock-grip system and threaded spindle
• Weight (Net): 139 kg / 306.4 lbs
• Dimensions: Reach: 408 mm (16.06"), Maximum Spread: 660 mm (25.98")
• Overview: High-capacity three-jaw hydraulic puller set with lock-grip for secure, single-operator engagement; ideal for precise, safe removal of large shaft-mounted parts in confined or field environments with portable hand pump power
• Key Features:
  • Self-centering closing system ensures all three jaws move simultaneously for easy mounting and reduced operator effort
  • Lock-on jaws provide a secure grip to prevent slippage during high-force hydraulic pulling up to 700 bar (10,000 psi)
  • Includes one point protector for use on shafts without drilled center holes, enhancing versatility
  • Durable steel construction for heavy-duty reliability in industrial settings, with safety recommendations for goggles and gloves
  • Synchronous jaw movement and included hand pump allow entire pulling job to be performed by a single operator for increased efficiency and portability
