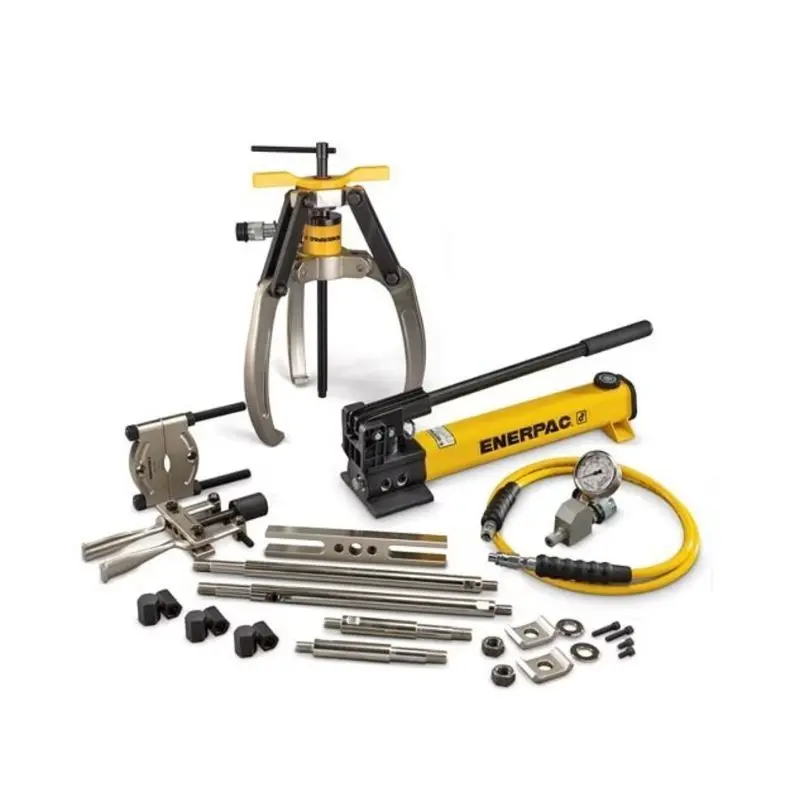

LGHMS310H, 10 Ton, 3 Jaw, Hydraulic Lock-Grip Master Puller Set with Hand Pump

Enerpac LGHMS310H 10 Ton 3 Jaw Hydraulic Lock-Grip Master Puller Set with Hand Pump is a robust, three-jaw hydraulic tool designed for safe and efficient removal of large shaft-mounted components like bearings, couplings, pulleys, and gears in industrial maintenance and assembly applications. Featuring a self-centering lock-grip system with synchronous jaw movement for single-operator mounting and use, lock-on jaws for secure grip, and a hydraulic cylinder powered by the included hand pump for controlled pulling up to 10 tons without external power sources, this master set is ideal for versatile, high-force applications with a maximum spread of 300 mm and reach of 215 mm, ensuring damage-free extraction and including a point protector for shafts without center holes, plus additional master accessories for extended capabilities.

• Model Number: LGHMS310H
• Product Type: Hydraulic Lock-Grip Master Puller Set (3-Jaw Configuration) with Hand Pump
• Color: Silver/Gray
• Material: Steel with hardened components
• Capacity: 10 Ton (Imperial Tons; 89 kN)
• Spread Range: 84 mm - 300 mm (3.31" - 11.81")
• Wall Thickness Capacity: N/A (suitable for various press-fitted components based on application)
• Motor Type: N/A (hydraulic hand pump operation)
• Power Pack: Included Hand Pump
• Control System: Hydraulic with self-centering lock-grip system and threaded spindle
• Weight (Net): 40 kg / 88.2 lbs
• Dimensions: Reach: 215 mm (8.46"), Maximum Spread: 300 mm (11.81")
• Overview: High-capacity three-jaw hydraulic puller master set with lock-grip for secure, single-operator engagement; ideal for precise, safe removal of large shaft-mounted parts in confined or field environments with portable hand pump power
• Key Features:
  • Self-centering closing system ensures all three jaws move simultaneously for easy mounting and reduced operator effort
  • Lock-on jaws provide a secure grip to prevent slippage during high-force hydraulic pulling up to 700 bar (10,150 psi)
  • Patented "Safety Cage" jaw retention system for enhanced safety and slim tapered jaws for improved gripping on components
  • Includes one point protector for use on shafts without drilled center holes, enhancing versatility
  • Synchronous jaw movement and included hand pump allow entire pulling job to be performed by a single operator for increased efficiency and portability; master set includes additional extensions, cross puller, bearing separator, bearing cup puller, detachable hollow plunger cylinder, pressure gauge, and carrying case for broader applications
