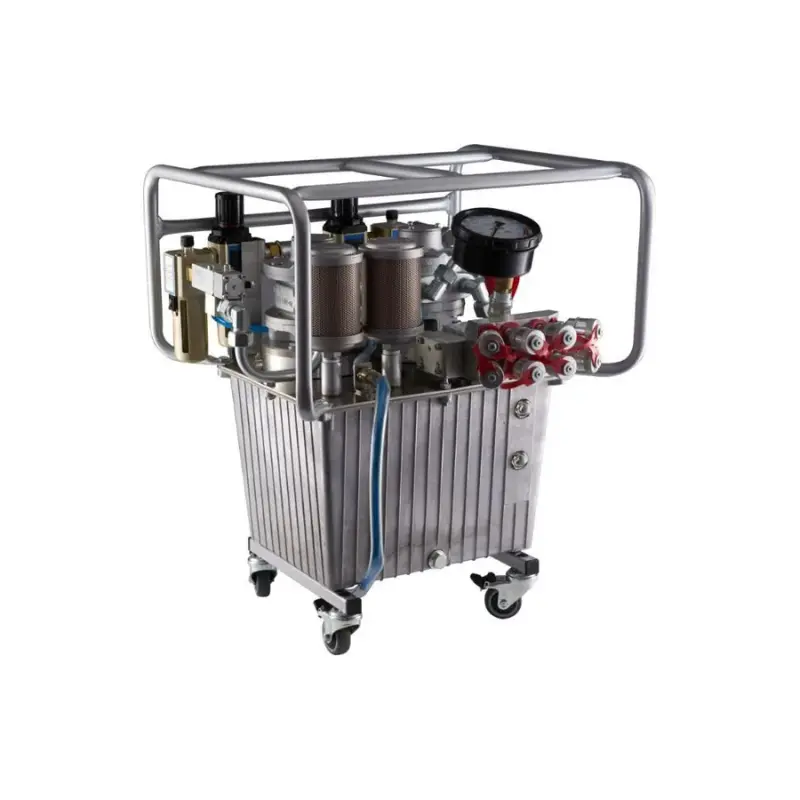

HY-TWIN-AIR-4S, 4 Stage, Twin Pump, Pneumatic Pump, 4 Ports, c/w 10k PSI Gauge

Hytorc HY-TWIN-AIR-4S is a 4-stage twin-pump pneumatic hydraulic pump from HYTORC's HY-TWIN AIR series, built for high-volume bolting applications in industrial settings like construction, oil & gas, and maintenance. As a portable, electricity-free unit, it supports up to 4 tools simultaneously with rapid pressure buildup (up to 10,000 PSI) and high flow rates, featuring a built-in FRL (filter-regulator-lubricator) for smooth operation. With protective caging and an oil cooler for reliability, it's ideal for demanding, multi-tool environments requiring fast, consistent hydraulic power.

Key Performance Specifications

• Working Pressure: 0–10,000 PSI (700 bar)
• Maximum Oil Flow Rate: 770 cu. in./min (13 L/min)
• Stages: 4 stages
• Air Consumption: 7,200 cu. in./sec (118 L/sec)
• Power: 3,800 cu. in./sec (62 L/sec)
• Gauge Accuracy: ±1% (0–10k PSI digital gauge included)

Physical and Environmental Specifications

• Reservoir Capacity: 1.35 gal (5.1 L); optional 2 gal (7.6 L) tank
• Weight: 46.3 lbs (21 kg, without oil)
• Dimensions: Not specified (compact portable design with wheels for mobility)
• Ports: 4 ports (multi-tool support)
• Operating Temperature: Suitable for industrial use (no specific range listed)
• Cooling: Oil cooler included

Key Features

• Twin Pump Design: Dual cylinders for high flow and rapid pressure delivery without electricity
• Built-In FRL: Filters contaminants, regulates air pressure, and lubricates for extended tool life
• Protective Caging: Full enclosure for safety in harsh environments
• Remote Control: 15 ft (4.57 m) cord for convenient operation
• Applications: Bolting tools, torque wrenches, and hydraulic systems in construction, petrochemical, and power generation
• Standards Compliance: Burst-tested to 40,000 PSI; RoHS compliant components
