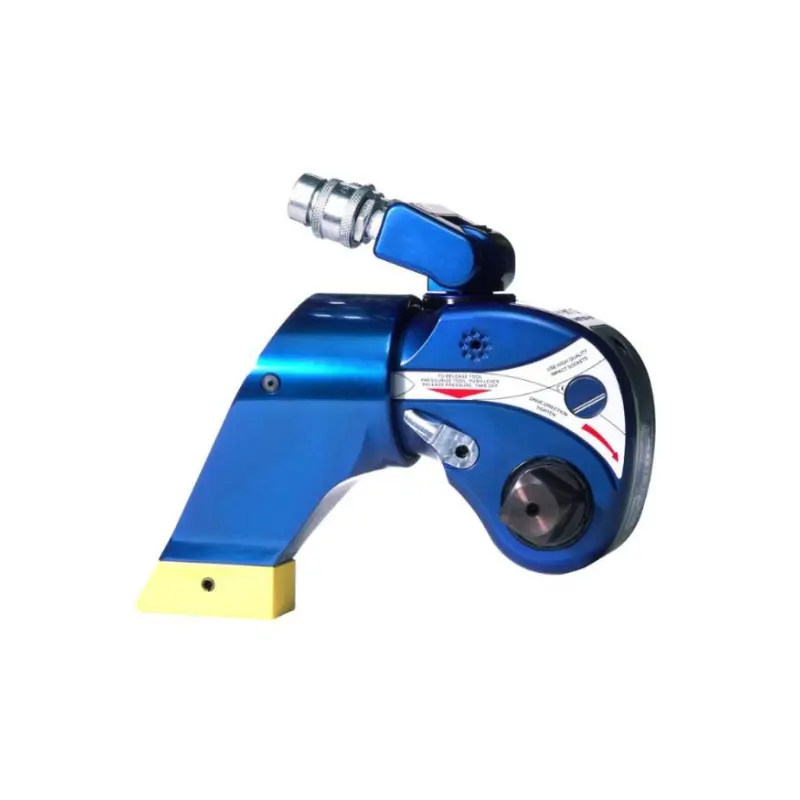

HY-35MXT 2-1/2" Sq Dr Torque Wrench, 37095 Ft-Lbs

HYTORC HY-35MXT is a square drive hydraulic torque wrench from the MXT series, engineered for precise high-torque bolting in demanding industrial environments like construction, maintenance, and petrochemical operations. This 2-1/2" square drive model provides up to 37,100 ft-lbs of torque with ±3% accuracy, powered by a hydraulic pump system up to 10,000 PSI for reliable efficiency. Featuring a patented single-piece uni-body housing, 360° adjustable reaction arm, and uniswivel hose coupler, it's built for safe, hands-free performance with exceptional torsion resistance.

Key Performance Specifications

• Torque Range: 5,400–37,100 ft-lbs (7,320–50,293 Nm)
• Accuracy: ±3%
• Drive Size: 2-1/2" square
• Max Operating Pressure: 10,000 PSI (690 bar)

Physical and Environmental Specifications

• Weight: 96.05 lbs (43.6 kg)
• Dimensions: Length 21.22 in (539 mm); Height 10.90 in (277 mm); Width 3.22 in (82 mm)
• Operating Temperature: -4°F to 140°F (-20°C to 60°C)

Key Features

• Patented Uni-Body Housing: Single-piece TITAL 399 design for maximum safety, torsion resistance, and over 5,000 duty cycles
• Adjustable Reaction Arm: 360° vertical, torsion-absorbing for secure, versatile positioning in tight spaces
• Uniswivel Hose Coupler: 180° x 360° swivel for flexible hose routing and reduced tripping hazards
• Hands-Free Operation: Reaction pawl ensures stable, drop-free bolting
• Corrosion-Resistant Construction: High-strength aluminum titanium alloy for durability in harsh conditions, including subsea
• Low Vibration: Minimizes operator fatigue and hand-arm vibration syndrome (HAVS) risk
• Ergonomic Design: Lightweight components with quick connections and integrated safety features
• Data Management: Pressure-to-torque conversion charts for precise control; integrable with digital gauges
• Applications: Compatible with sockets, extensions, HYTORC Washer/Nut Drivers; ideal for large flanges, pipelines, and heavy machinery in explosive environments with ATEX options
