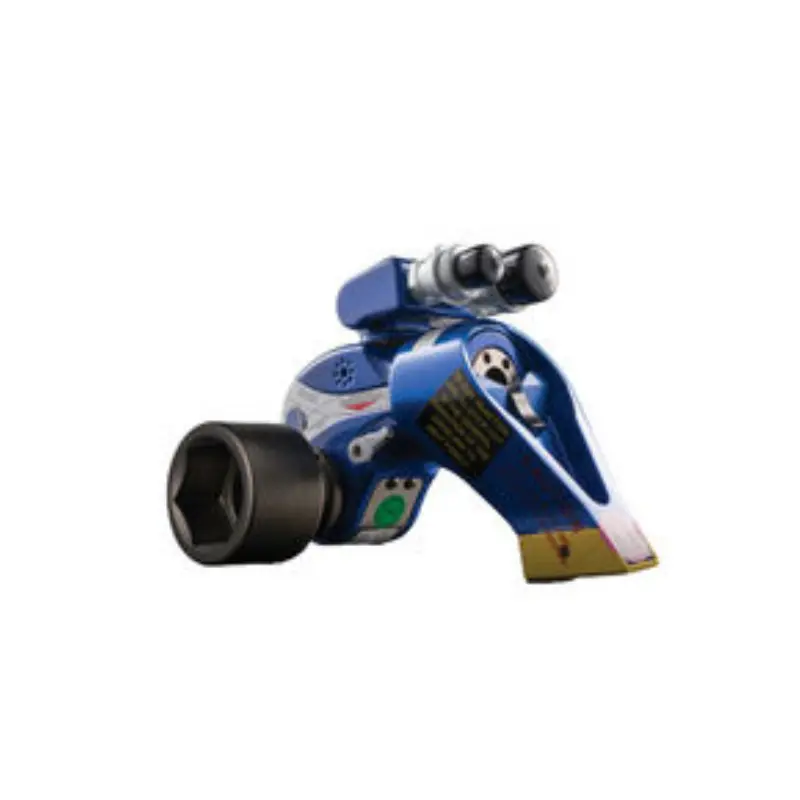

HY-25XLT 2-1/2" Sq Dr Torque Wrench, 25000 Ft-Lbs

HYTORC HY-25XLT is a square drive hydraulic torque wrench from the XLT series, engineered for precise high-torque bolting in demanding industrial environments like construction, maintenance, and petrochemical operations. This 2-1/2" square drive model provides up to 25,890 ft-lbs of torque with ±3% accuracy, powered by a hydraulic pump system up to 10,000 PSI for reliable efficiency. Featuring an automatic continuous ratcheting uni-body design, 360° adjustable reaction arm, and uniswivel hose coupler, it's built for fast, hands-free performance in high-capacity applications.

Key Performance Specifications

• Torque Range: 3,960–25,890 ft-lbs (5,368–35,096 Nm)
• Accuracy: ±3%
• Drive Size: 2-1/2" square
• Max Operating Pressure: 10,000 PSI (690 bar)
• Min Operating Pressure: 1,500 PSI (104 bar)

Physical and Environmental Specifications

• Weight: 68.5 lbs (31.1 kg) with reaction arm
• Dimensions: Length 11.8 in (300 mm); Height 11.5 in (292 mm); Width 5.25 in (133 mm)
• Operating Temperature: -4°F to 140°F (-20°C to 60°C)

Key Features

• Automatic Continuous Ratcheting Uni-Body Design: Delivers smooth, precise torque with high-speed operation for efficient bolting cycles
• Accuracy Assurance Pawl: Ensures consistent ±3% torque accuracy across the full range
• 360° Adjustable Reaction Arm: Click-on, vertical, tension-absorbing design for secure, versatile positioning in tight spaces
• Uniswivel Hose Coupler: 360° x 180° single-piece swivel for flexible hose routing and easy setup in awkward angles
• High-Strength TITAL399 Housing: Durable uni-body construction for impact resistance and longevity in harsh conditions
• Compatible Accessories: Works with HYTORC pumps, sockets, extensions, and reaction fixtures for hands-free, reaction-free options
• Low Vibration: Minimizes operator fatigue and hand-arm vibration syndrome (HAVS) risk
• Ergonomic Design: Lightweight aluminum components with quick connections, disengagement lever, and safety handle for ease of use
• Data Management: Pressure-to-torque conversion charts provided; integrable with digital gauges for precise control
• Applications: Ideal for high-torque bolting on large flanges, pipelines, and heavy machinery; suitable for explosive environments with ATEX options
