HM15LC, HydraMax Hydraulic Topside Bolt Tensioners, M90 - M100 Maximum Thread Range

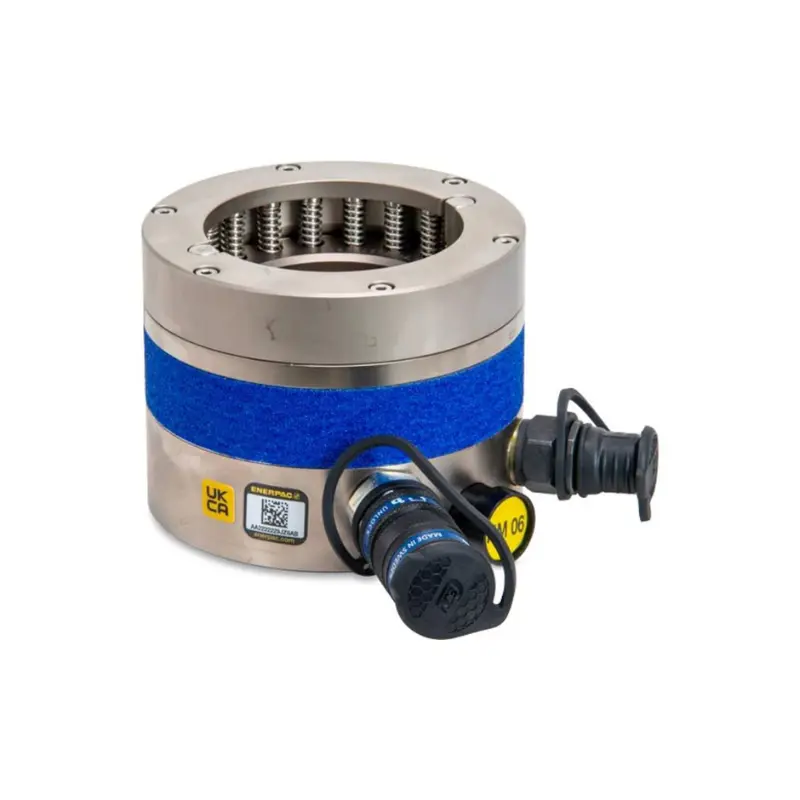

Enerpac HM15LC is a robust load cell from the HydraMax series of hydraulic topside bolt tensioners, engineered for high-load tensioning of large-diameter bolts (M90–M100) in topside applications on standard flanges such as ANSI, API, and Norsok L005 compact flanges. Offering 30% greater load capacity than traditional tensioners, this model features a long 15 mm stroke for fewer cycles, over-stroke protection via relief valve, and a quick-release bridge for efficient setup, ensuring precise, uniform bolt loading at up to 1500 bar with enhanced safety through a captive socket and anti-slip grip, ideal for oil & gas, power, and heavy industrial maintenance.

• Model: HM15LC (HydraMax Hydraulic Topside Bolt Tensioner Load Cell)
• Thread Range: M90–M100 (3 1/2"–4"); customizable pitches available (e.g., M100 x 6)
• Maximum Operating Pressure: 1500 bar (21,750 psi)
• Load Capacity: 522.7 tons (imperial; equivalent to ~4,650 kN maximum bolt load)
• Stroke: 15 mm (0.59 in.)
• Hydraulic Pressure Area: 31,008 mm² (48.06 in²)
• Minimum Socket Rotation: 60°
• Weight (Load Cell Only): 32.5 kg (71.6 lb.); full assembly with adapter/bridge kit: 20.4–23.9 kg (45–52.7 lb.) depending on configuration
• Dimensions (Typical with Adapter/Bridge; varies by config, in inches): Overall Height (A): 8.7–9.1; Body Diameter (B): 8.1–8.7; Piston Diameter (C): 3.8–4.2; Overall Length (D): 11.9–13.3; Bridge Width (E): 4.0–4.2; Reaction Arm Length (F): 4.6–4.7; Stud Protrusion Required (N): 13.3–13.7; Nearest Obstruction (X min.): 2.0–2.3
• Connectivity: Twin hydraulic ports for multi-tool linking; requires ultra-high-pressure fittings/hoses
• Features: Long-stroke capability with over-stroke relief valve and spring return; quick-release bridge; visible stroke indicator; captive socket to prevent falling objects; interchangeable adapter kits; anti-slip grip; tommy bar included
• Operator Feedback: Stroke indicator for cycle monitoring; ergonomic design for reduced fatigue
• Maintenance Features: Self-energizing seals; corrosion-resistant construction; annual inspection of seals/hoses recommended; compliant with Machine Directive 2006/42/EC, ASME B30.1, EN-ISO 4413:2010, EN-ISO 12100:2010
• Additional Features: 30% higher load vs. conventional tensioners; suitable for ANSI/API/Norsok L005 flanges; ATEX options available; load cells ordered separately from adapters/bridges for flexibility
