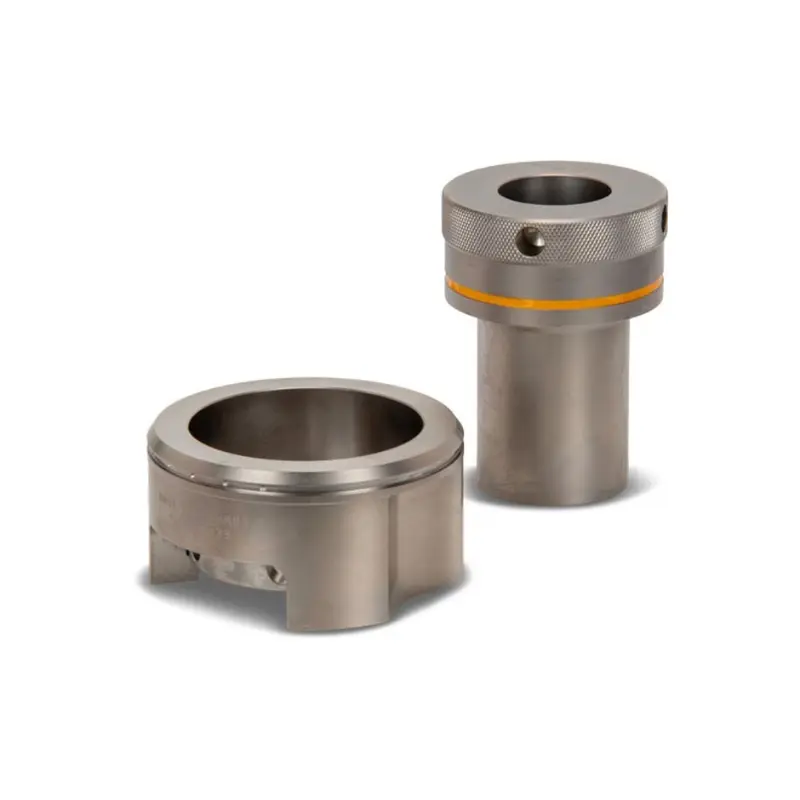

HM10BPNRS2000U08, HM10 Tensioner Adaptor and Bridge Kit, 2"- 8un Thread Size

Enerpac HM10BPNRS2000U08 is a specialized adapter and bridge kit for the HM10LC HydraMax hydraulic topside bolt tensioner load cell, tailored for 2" - 8 UN thread sizes in high-load bolting applications. This kit facilitates secure, precise tensioning on large-diameter flanges compliant with ANSI, API, and Norsok L005 standards, featuring a quick-release bridge for fast setup, misalignment compensation, and robust construction to support up to 1179.8 kN loads, making it essential for efficient maintenance in oil & gas, power generation, and heavy industrial environments.

• Model: HM10BPNRS2000U08 (HM10 Tensioner Adapter and Bridge Kit)
• Thread Size: 2" - 8 UN
• Maximum Load Capacity: 1179.8 kN
• Load Cell Reference: HM10LC
• Compatibility: HM10LC load cell; suitable for ANSI, API, and Norsok L005 compact flanges; bolt range M36–M48 equivalent
• Weight: 13.3 kg (29.3 lb.)
• Materials: High-strength alloy steel with corrosion-resistant coating for durability in harsh environments
• Features: Quick-release bridge for tool-free assembly/disassembly; adjustable for ±5° misalignment; captive socket to prevent dropped parts; visible stroke indication; over-stroke relief valve integration
• Dimensions (Typical with Bridge, in mm/in.):
  • A (Overall Height): 159 (6.3)
  • B (Body Diameter): 143 (5.6)
  • C (Piston Diameter): 34 (1.3)
  • D (Overall Length): 156 (6.1)
  • Minimum Height E: 289 (10.5)
• Operating Pressure: Up to 1500 bar (21,750 psi) when paired with compatible tensioner
• Maintenance: Self-energizing seals; annual inspection of seals and fittings recommended; compliant with Machine Directive 2006/42/EC and EN-ISO standards
• Additional Notes: Sold as a complete kit including adapters, bridge, and fasteners; ATEX options available for hazardous areas
