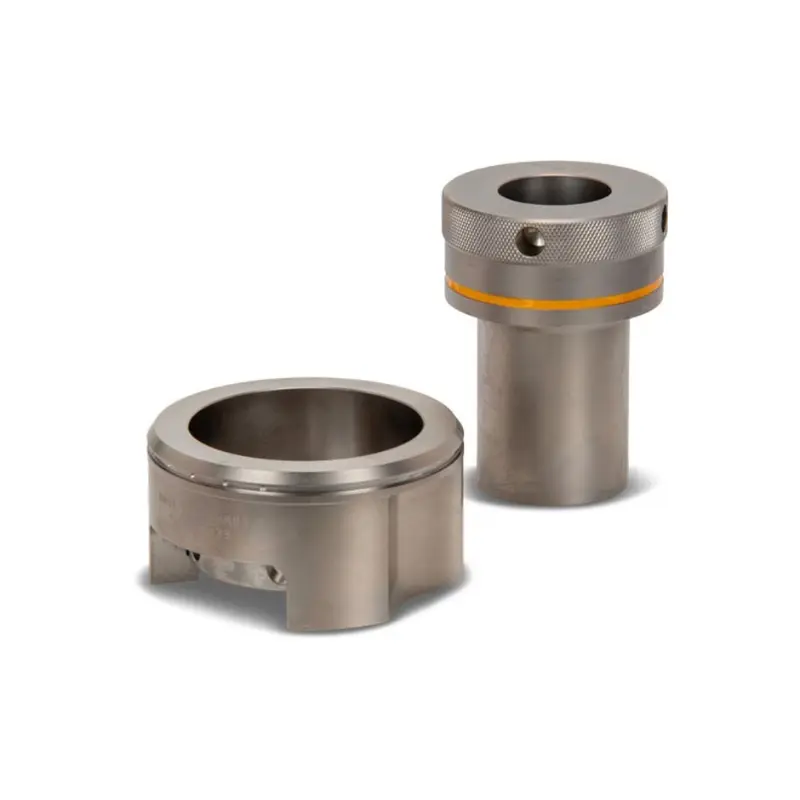

HM04BPMNRS02225, HM04 Tensioner Adaptor and Bridge Kit, M22 x 2,5 Thread Size

Enerpac HM04BPMNRS02225 is a specialized adapter and bridge kit for the HM04LC HydraMax hydraulic topside bolt tensioner load cell, tailored for M22 x 2.5 thread sizes in high-load bolting applications. This kit facilitates secure, precise tensioning on large-diameter flanges compliant with ANSI, API, and Norsok L005 standards, featuring a quick-release bridge for fast setup, misalignment compensation, and robust construction to support up to 400 kN loads, making it essential for efficient maintenance in oil & gas, power generation, and heavy industrial environments.

• Model: HM04BPMNRS02225 (HM04 Tensioner Adapter and Bridge Kit)
• Thread Size: M22 x 2.5
• Maximum Load Capacity: 400 kN
• Load Cell Reference: HM04LC
• Compatibility: HM04LC load cell; suitable for ANSI, API, and Norsok L005 compact flanges; bolt range M20–M24 equivalent
• Weight: 4.5 kg (9.9 lb.)
• Materials: High-strength alloy steel with corrosion-resistant coating for durability in harsh environments
• Features: Quick-release bridge for tool-free assembly/disassembly; adjustable for ±5° misalignment; captive socket to prevent dropped parts; visible stroke indication; over-stroke relief valve integration
• Dimensions (Typical with Bridge, in mm/in.):
  • A (Overall Height): 140 (5.5)
  • B (Body Diameter): 120 (4.7)
  • C (Piston Diameter): 30 (1.2)
  • D (Overall Length): 130 (5.1)
  • Minimum Height E: 250 (9.8)
  • F (Reaction Arm Length): 35 (1.4)
• Operating Pressure: Up to 1500 bar (21,750 psi) when paired with compatible tensioner
• Maintenance: Self-energizing seals; annual inspection of seals and fittings recommended; compliant with Machine Directive 2006/42/EC and EN-ISO standards
• Additional Notes: Sold as a complete kit including adapters, bridge, and fasteners; ATEX options available for hazardous areas
