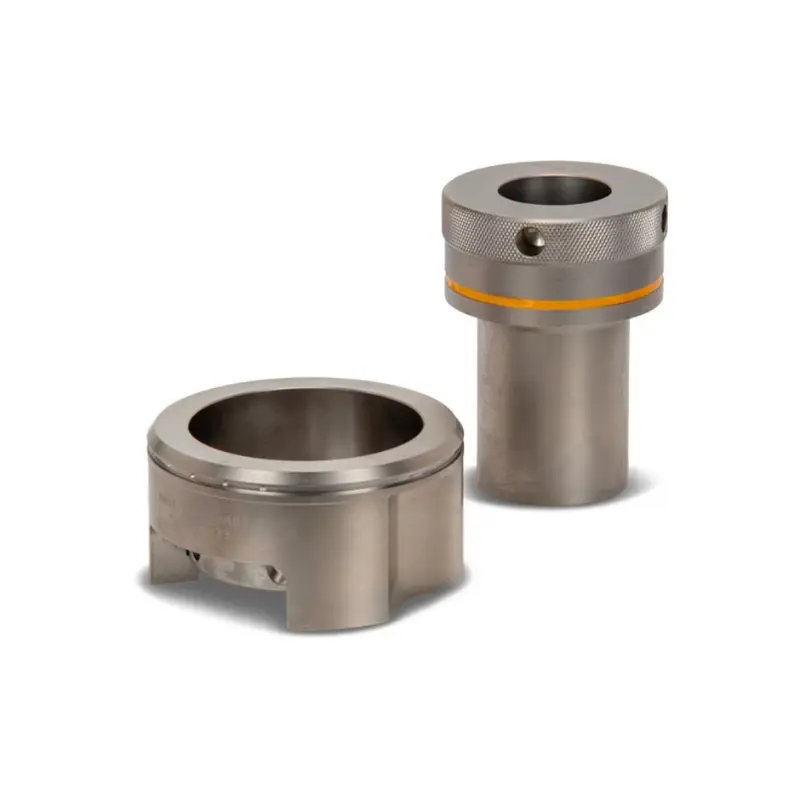

HM02BPNRS0875U09, HM02 Tensioner Adaptor and Bridge Kit, 7/8"-9un Thread Size

Enerpac HM02BPNRS0875U09 is a specialized adapter and bridge kit for the HM02LC HydraMax hydraulic topside bolt tensioner load cell, tailored for 7/8" - 9 UN thread sizes in high-load bolting applications. This kit facilitates secure, precise tensioning on large-diameter flanges compliant with ANSI, API, and Norsok L005 standards, featuring a quick-release bridge for fast setup, misalignment compensation, and robust construction to support up to 186 kN loads, making it essential for efficient maintenance in oil & gas, power generation, and heavy industrial environments.

• Model: HM02BPNRS0875U09 (HM02 Tensioner Adapter and Bridge Kit)
• Thread Size: 7/8" - 9 UN
• Maximum Load Capacity: 186 kN
• Load Cell Reference: HM02LC
• Compatibility: HM02LC load cell; suitable for ANSI, API, and Norsok L005 compact flanges; bolt range M20–M22 equivalent
• Weight: 0.8 kg (1.8 lb.)
• Materials: High-strength alloy steel with corrosion-resistant coating for durability in harsh environments
• Features: Quick-release bridge for tool-free assembly/disassembly; adjustable for ±5° misalignment; captive socket to prevent dropped parts; visible stroke indication; over-stroke relief valve integration
• Dimensions (Typical with Bridge, in mm/in.):
  • A (Overall Height): 119 (4.7)
  • B (Body Diameter): 103 (4.1)
• Operating Pressure: Up to 1500 bar (21,750 psi) when paired with compatible tensioner
• Maintenance: Self-energizing seals; annual inspection of seals and fittings recommended; compliant with Machine Directive 2006/42/EC and EN-ISO standards
• Additional Notes: Sold as a complete kit including adapters, bridge, and fasteners; ATEX options available for hazardous areas
