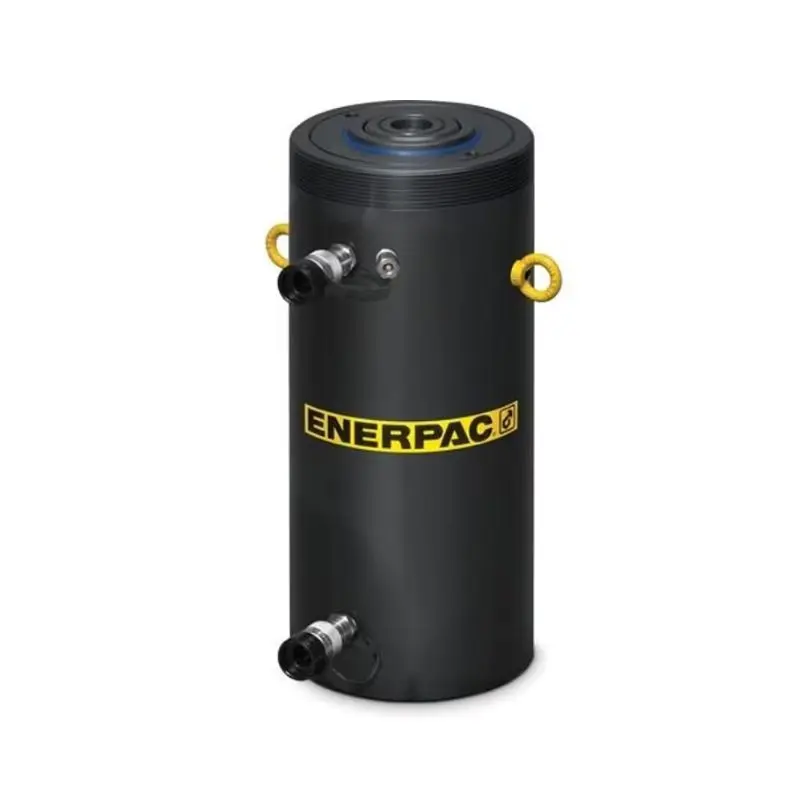

HCR2002 1985 kN Capacity, 50 mm Stroke, Double-Acting, High Tonnage Hydraulic Cylinder

Enerpac HCR2002 is a robust double-acting high tonnage hydraulic cylinder designed for heavy-duty pushing and pulling in industrial maintenance, construction, and lifting tasks. Delivering a 223-ton (1985 kN) advance capacity over a 50 mm stroke, this model ensures fast hydraulic retraction independent of hose length, operating at up to 10,000 psi with 10% side-load resistance, hardened surfaces for cyclic wear, and weather protection for reliability in harsh environments.

• Product Overview
  • Name: Enerpac HCR2002 Double-Acting High Tonnage Hydraulic Cylinder
  • Type: Double-acting, hydraulic return solid plunger cylinder
  • Primary Applications: Heavy lifting, pushing, pulling, and maintenance in industrial and construction setups
  • Force Output: 223 tons (1985 kN) advance capacity; 112 tons (1000 kN) retract capacity
  • Stroke: 50 mm (1.97 in)
  • Retraction Mechanism: Hydraulic return
  • Operating Pressure: Maximum 10,000 psi (700 bar)
  • Collapsed Height: 231 mm (9.09 in)
• Technical Specifications
  • Capacity (Advance): 223 tons (1985 kN)
  • Capacity (Retract): 112 tons (1000 kN)
  • Maximum Operating Pressure: 10,000 psi (700 bar)
  • Stroke: 50 mm (1.97 in)
  • Collapsed Height (A): 231 mm (9.09 in)
  • Extended Height (B): 281 mm (11.06 in)
  • Outside Diameter (D): 190 mm (7.48 in)
  • Bore Diameter (E): 190 mm (7.48 in)
  • Plunger Diameter (F): 133 mm (5.25 in)
  • Effective Area (Advance): 285 cm² (44.21 in²)
  • Effective Area (Retract): 145 cm² (22.50 in²)
  • Oil Capacity (Advance): 1,417 cm³ (86.49 in³)
  • Oil Capacity (Retract): 708 cm³ (43.24 in³)
  • Weight: 81.2 kg (179 lbs)
  • Series: HCR Series High Tonnage Cylinders
• Key Features
  • Double-acting operation for fast retraction regardless of hose length
  • 10% side-load resistance over full stroke for stability under off-center loads
  • Hardened surfaces resist side-loading and cyclic wear
  • Weather-protected design, inside and out, for harsh conditions
  • Grooved and threaded plunger for easy tilt saddle mounting
  • Built-in relief valves prevent over-pressurization
  • Collar and base threads for secure fixturing
  • Includes CR-400 couplers and dust caps
