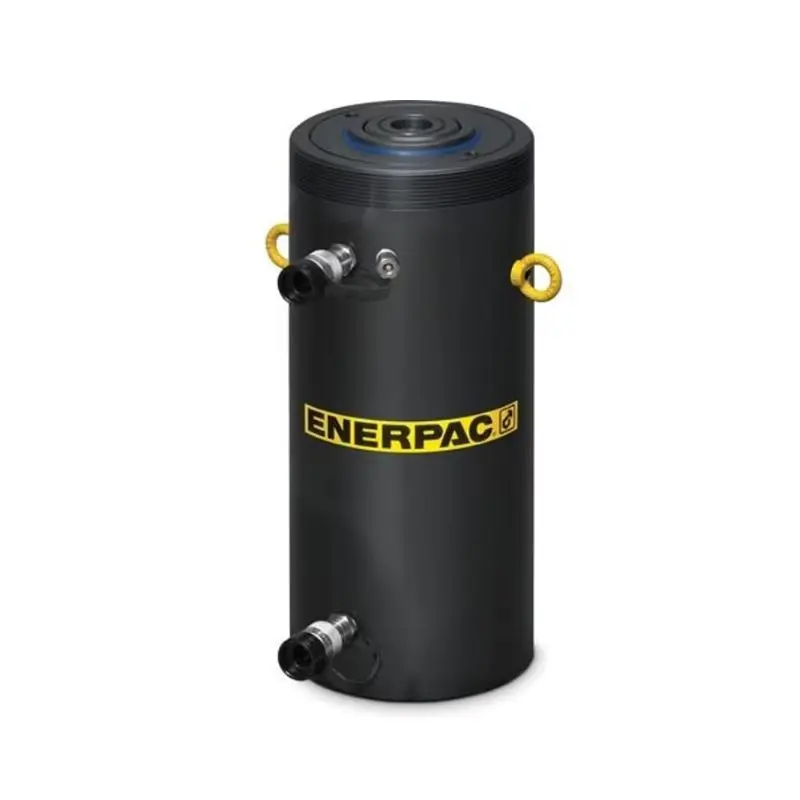

HCR10012 1002 kN Capacity, 300 mm Stroke, Double-Acting, High Tonnage Hydraulic Cylinder

Enerpac HCR10012 is a robust double-acting high tonnage hydraulic cylinder designed for heavy-duty pushing and pulling in industrial maintenance, construction, and lifting tasks. Delivering a 113-ton (1002 kN) advance capacity over a 300 mm stroke, this model ensures fast hydraulic retraction independent of hose length, operating at up to 10,000 psi with 10% side-load resistance, hardened surfaces for cyclic wear, and weather protection for reliability in harsh environments.

• Product Overview
  • Name: Enerpac HCR10012 Double-Acting High Tonnage Hydraulic Cylinder
  • Type: Double-acting, hydraulic return solid plunger cylinder
  • Primary Applications: Heavy lifting, pushing, pulling, and maintenance in industrial and construction setups
  • Force Output: 113 tons (1002 kN) advance capacity; 60 tons (534 kN) retract capacity
  • Stroke: 300 mm (11.81 in)
  • Retraction Mechanism: Hydraulic return
  • Operating Pressure: Maximum 10,000 psi (700 bar)
  • Collapsed Height: 479 mm (18.86 in)
• Technical Specifications
  • Capacity (Advance): 113 tons (1002 kN)
  • Capacity (Retract): 60 tons (534 kN)
  • Maximum Operating Pressure: 10,000 psi (700 bar)
  • Stroke: 300 mm (11.81 in)
  • Collapsed Height (A): 479 mm (18.86 in)
  • Extended Height (B): 779 mm (30.67 in)
  • Outside Diameter (D): 178 mm (7.01 in)
  • Bore Diameter (E): 135 mm (5.31 in)
  • Plunger Diameter (F): 95 mm (3.74 in)
  • Effective Area (Advance): 143 cm² (22.16 in²)
  • Effective Area (Retract): 76 cm² (11.78 in²)
  • Oil Capacity (Advance): 4,292 cm³ (261.9 in³)
  • Oil Capacity (Retract): 2,299 cm³ (140.3 in³)
  • Weight: 73 kg (161 lbs)
  • Series: HCR Series High Tonnage Cylinders
• Key Features
  • Double-acting operation for fast retraction regardless of hose length
  • 10% side-load resistance over full stroke for stability under off-center loads
  • Hardened surfaces resist side-loading and cyclic wear
  • Weather-protected design, inside and out, for harsh conditions
  • Grooved and threaded plunger for easy tilt saddle mounting
  • Built-in relief valves prevent over-pressurization
  • Collar and base threads for secure fixturing
  • Includes CR-400 couplers and dust caps
