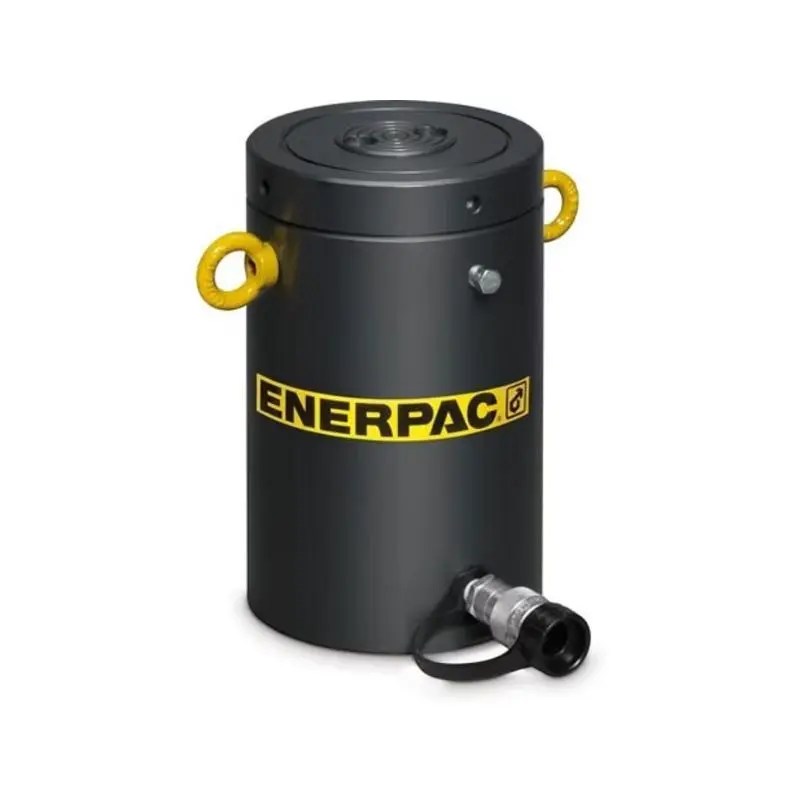

HCL1504 1497 kN Capacity, 100 mm Stroke, Single-Acting, High Tonnage, Lock Nut Hydraulic Cylinder

Enerpac HCL1504 is a robust single-acting high tonnage lock nut hydraulic cylinder designed for heavy-duty lifting and load holding in industrial maintenance, construction, and foundation leveling tasks. Delivering a 168 US ton (1497 kN) advance capacity over a 100 mm stroke, this model ensures positive mechanical load holding independent of hydraulic pressure, operating at up to 10,150 psi with 10% side-load resistance, hardened surfaces for cyclic wear, and weather protection for reliability in harsh environments.

• Product Overview

  • Name: Enerpac HCL1504 Single-Acting High Tonnage Lock Nut Hydraulic Cylinder
  • Type: Single-acting, gravity return solid plunger cylinder
  • Primary Applications: Heavy lifting, foundation leveling, and maintenance in industrial and construction setups
  • Force Output: 168 US tons (1497 kN) advance capacity
  • Stroke: 100 mm (3.94 in)
  • Retraction Mechanism: Gravity return
  • Operating Pressure: Maximum 10,150 psi (700 bar)
  • Collapsed Height: 259 mm (10.20 in)

• Technical Specifications

  • Capacity (Advance): 168 US tons (1497 kN)
  • Maximum Operating Pressure: 10,150 psi (700 bar)
  • Stroke: 100 mm (3.94 in)
  • Collapsed Height (A): 259 mm (10.20 in)
  • Extended Height (B): 359 mm (14.13 in)
  • Outside Diameter (D): 215 mm (8.46 in)
  • Bore Diameter (E): 165 mm (6.50 in)
  • Plunger Diameter (F, threaded): Tr 165 x 6
  • Base to Advance Port (H): 41 mm (1.61 in)
  • Standard Saddle Diameter (J): 130 mm (5.12 in)
  • Saddle Protrusion from Plunger (K): 2 mm (0.08 in)
  • Effective Area (Advance): 213.8 cm² (33.14 in²)
  • Oil Capacity (Advance): 2,138 cm³ (130.5 in³)
  • Weight: 73 kg (161 lb)
  • Series: HCL Series High Tonnage Cylinders

• Key Features

  • Lock nut for positive and safe mechanical load holding over extended periods
  • Low-friction locking rings for easy operation and time savings
  • 10% side-load resistance up to 90% of stroke for stability
  • Hardened surfaces resist side-loading and cyclic wear
  • Overflow port acts as stroke limiter to prevent plunger blow-out
  • Weather-protected design, inside and out, for harsh conditions
  • Replaceable bearings support the plunger throughout the stroke
  • Certified lifting eyes and base mounting holes for secure handling and fixturing
  • Includes hardened grooved saddle; optional tilt saddle available
  • Built-in relief port for over-stroke protection
