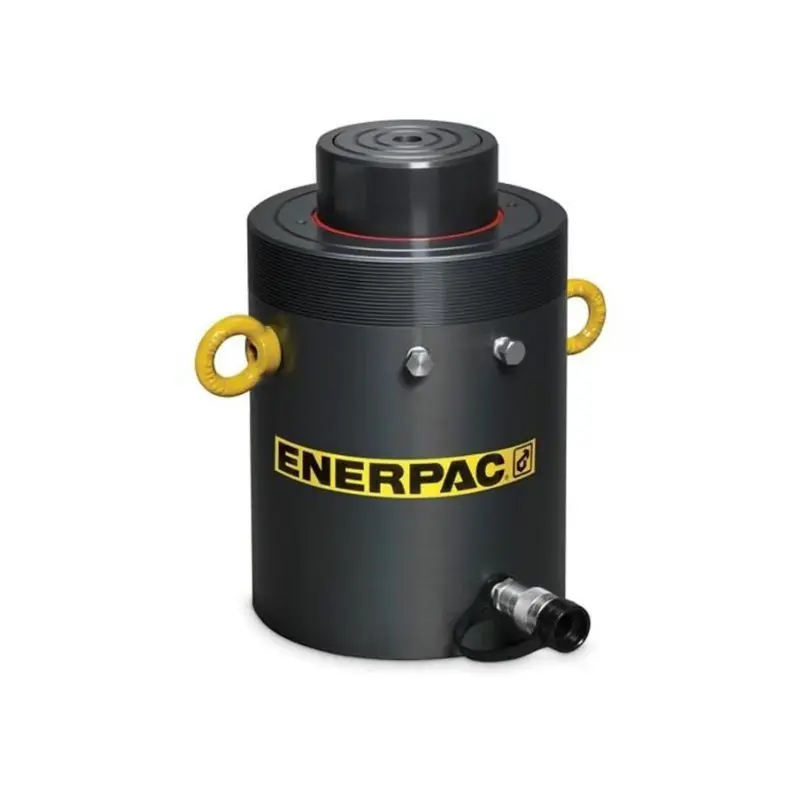

HCG1502 1497 kN Capacity, 50 mm Stroke, Single-Acting, High Tonnage Hydraulic Cylinder

Enerpac HCG1502 is a robust single-acting high tonnage hydraulic cylinder designed for heavy-duty lifting in industrial maintenance, construction, and foundation leveling tasks. Delivering a 168 US ton (1497 kN) advance capacity over a 50 mm stroke, this model features gravity return for efficient retraction, operating at up to 10,150 psi with 10% side-load resistance, hardened surfaces for cyclic wear, and weather protection for reliability in harsh environments.

• Product Overview

  • Name: Enerpac HCG1502 Single-Acting High Tonnage Hydraulic Cylinder
  • Type: Single-acting, gravity return solid plunger cylinder
  • Primary Applications: Heavy lifting, foundation leveling, and maintenance in industrial and construction setups
  • Force Output: 168 US tons (1497 kN) advance capacity
  • Stroke: 50 mm (1.97 in)
  • Retraction Mechanism: Gravity return
  • Operating Pressure: Maximum 10,150 psi (700 bar)
  • Collapsed Height: 220 mm (8.66 in)

• Technical Specifications

  • Capacity (Advance): 168 US tons (1497 kN)
  • Maximum Operating Pressure: 10,150 psi (700 bar)
  • Stroke: 50 mm (1.97 in)
  • Collapsed Height (A): 220 mm (8.66 in)
  • Extended Height (B): 270 mm (10.63 in)
  • Outside Diameter (D): 215 mm (8.46 in)
  • Bore Diameter (E): 165 mm (6.50 in)
  • Plunger Diameter (F): 120 mm (4.72 in)
  • Base to Advance Port (H): 41 mm (1.61 in)
  • Standard Saddle Diameter (J): 94 mm (3.70 in)
  • Saddle Protrusion from Plunger (K): 3 mm (0.12 in)
  • Effective Area (Advance): 213.8 cm² (33.14 in²)
  • Oil Capacity (Advance): 1,069 cm³ (65.24 in³)
  • Weight: 56 kg (123 lb)
  • Series: HCG Series High Tonnage Cylinders

• Key Features

  • 10% side-load resistance over full stroke for stability under off-center loads
  • Hardened surfaces resist side-loading and cyclic wear
  • Stop-ring acts as stroke limiter to prevent plunger blow-out
  • Weather-protected design, inside and out, for harsh conditions
  • Replaceable bearings support the plunger throughout the stroke
  • Certified lifting eyes, base mounting holes and collar threads for secure handling and fixturing
  • Includes hardened grooved saddle; optional tilt saddle available
  • Low-wear high pressure seals for longer service life
  • Nitrocarburized finish on cylinder body for corrosion protection
