HCG1004 1002 kN Capacity, 100 mm Stroke, Single-Acting, High Tonnage Hydraulic Cylinder

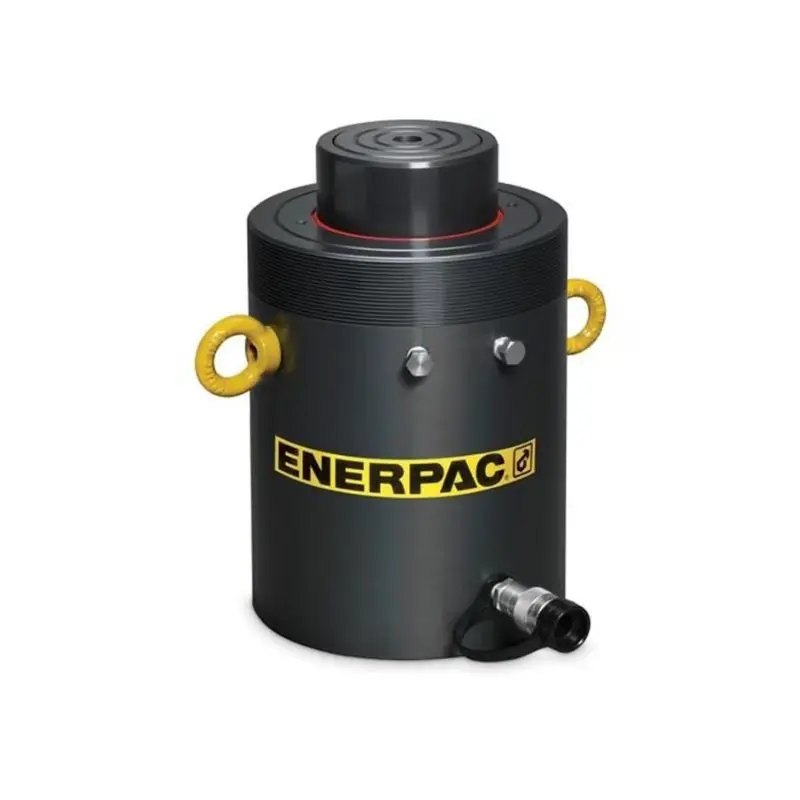

Enerpac HCG1004 is a robust single-acting high tonnage hydraulic cylinder designed for heavy-duty lifting in industrial maintenance, construction, and foundation leveling tasks. Delivering a 113 US ton (1002 kN) advance capacity over a 100 mm stroke, this model features gravity return for efficient retraction, operating at up to 10,150 psi with 10% side-load resistance, hardened surfaces for cyclic wear, and weather protection for reliability in harsh environments.

• Product Overview

  • Name: Enerpac HCG1004 Single-Acting High Tonnage Hydraulic Cylinder
  • Type: Single-acting, gravity return solid plunger cylinder
  • Primary Applications: Heavy lifting, foundation leveling, and maintenance in industrial and construction setups
  • Force Output: 113 US tons (1002 kN) advance capacity
  • Stroke: 100 mm (3.94 in)
  • Retraction Mechanism: Gravity return
  • Operating Pressure: Maximum 10,150 psi (700 bar)
  • Collapsed Height: 252 mm (9.92 in)

• Technical Specifications

  • Capacity (Advance): 113 US tons (1002 kN)
  • Maximum Operating Pressure: 10,150 psi (700 bar)
  • Stroke: 100 mm (3.94 in)
  • Collapsed Height (A): 252 mm (9.92 in)
  • Extended Height (B): 352 mm (13.86 in)
  • Outside Diameter (D): 175 mm (6.89 in)
  • Bore Diameter (E): 135 mm (5.31 in)
  • Plunger Diameter (F): 95 mm (3.74 in)
  • Base to Advance Port (H): 38 mm (1.50 in)
  • Standard Saddle Diameter (J): 75 mm (2.95 in)
  • Saddle Protrusion from Plunger (K): 3 mm (0.12 in)
  • Effective Area (Advance): 143.1 cm² (22.19 in²)
  • Oil Capacity (Advance): 1,431 cm³ (87.30 in³)
  • Weight: 40 kg (88 lb)
  • Series: HCG Series High Tonnage Cylinders

• Key Features

  • 10% side-load resistance over full stroke for stability under off-center loads
  • Hardened surfaces resist side-loading and cyclic wear
  • Stop-ring acts as stroke limiter to prevent plunger blow-out
  • Weather-protected design, inside and out, for harsh conditions
  • Replaceable bearings support the plunger throughout the stroke
  • Certified lifting eyes, base mounting holes and collar threads for secure handling and fixturing
  • Includes hardened grooved saddle; optional tilt saddle available
  • Low-wear high pressure seals for longer service life
  • Nitrocarburized finish on cylinder body for corrosion protection
