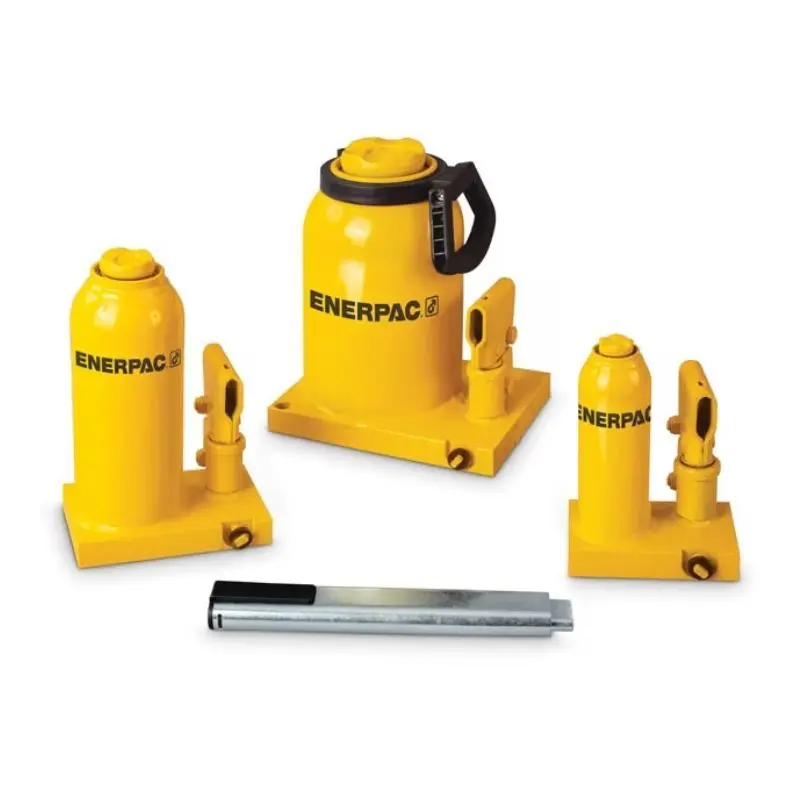

GBJ030A 284,0 kN, 150 mm Stroke, Hydraulic Industrial Bottle Jack

Enerpac GBJ030A is a robust single-acting hydraulic industrial bottle jack designed for heavy-duty lifting in industrial maintenance, construction, and vehicle positioning tasks. Delivering a 32 US ton (284 kN) capacity over a 150 mm stroke, this model features a safety relief valve and automatic by-pass port for secure operation, with a compact low-profile design for reliability in demanding environments.

• Product Overview

  • Name: Enerpac GBJ030A Hydraulic Industrial Bottle Jack
  • Type: Single-acting, hand-pumped bottle jack
  • Primary Applications: Heavy lifting, vehicle maintenance, and industrial setups
  • Force Output: 32 US tons (284 kN) capacity
  • Stroke: 150 mm (5.91 in)
  • Retraction Mechanism: Spring return
  • Operating Pressure: Maximum 700 bar (10,150 psi)
  • Collapsed Height: 242 mm (9.53 in)

• Technical Specifications

  • Capacity: 32 US tons (284 kN)
  • Maximum Operating Pressure: 700 bar (10,150 psi)
  • Stroke: 150 mm (5.91 in)
  • Collapsed Height: 242 mm (9.53 in)
  • Extended Height: 467 mm (18.39 in)
  • Plunger Diameter: 57 mm (2.26 in)
  • Saddle Diameter: 65 mm (2.56 in)
  • Base Dimensions (WxL): 142 x 196 mm (5.59 x 7.72 in)
  • Oil Capacity: 800 cm³ (27.05 oz)
  • Weight: 15.5 kg (34.2 lb)
  • Series: GBJ Series Hydraulic Bottle Jacks

• Key Features

  • Safety relief valve to prevent over-pressurization and ensure safe load limits
  • Automatic by-pass port for controlled lowering and added security
  • High-strength beam and pump linkage for durability under heavy loads
  • Compact, low-profile design ideal for use in tight spaces
  • Hardened plunger and base for extended service life and wear resistance
  • Swiveling pump for ease of use and improved ergonomics
  • Telescopic handle stores in base for portability
  • Meets ANSI/PLM standards for quality and safety compliance
