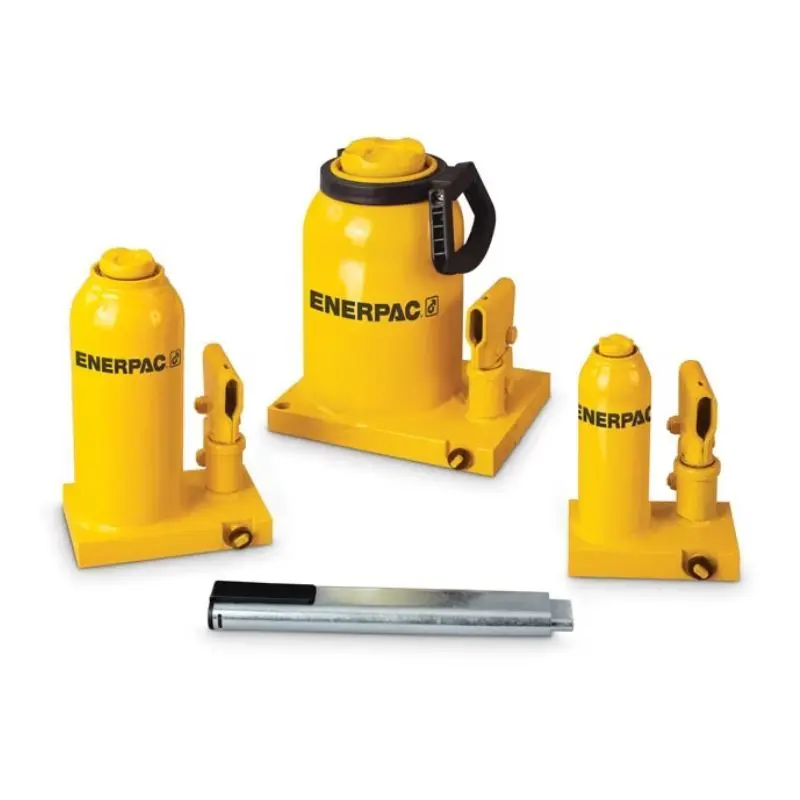

GBJ010SA 98,0 kN, 62 mm Stroke, Hydraulic Industrial Bottle Jack

Enerpac GBJ010SA is a robust single-acting hydraulic industrial bottle jack designed for heavy-duty lifting in industrial maintenance, construction, and vehicle positioning tasks. Delivering a 11 US ton (98 kN) capacity over a 62 mm stroke, this model features a safety relief valve and automatic by-pass port for secure operation, with a compact low-profile design for reliability in demanding environments.

• Product Overview

  • Name: Enerpac GBJ010SA Hydraulic Industrial Bottle Jack
  • Type: Single-acting, hand-pumped bottle jack
  • Primary Applications: Heavy lifting, vehicle maintenance, and industrial setups
  • Force Output: 11 US tons (98 kN) capacity
  • Stroke: 62 mm (2.44 in)
  • Retraction Mechanism: Spring return
  • Operating Pressure: Maximum 10,150 psi (700 bar)
  • Collapsed Height: 131 mm (5.16 in)

• Technical Specifications

  • Capacity: 11 US tons (98 kN)
  • Maximum Operating Pressure: 10,150 psi (700 bar)
  • Stroke: 62 mm (2.44 in)
  • Collapsed Height: 131 mm (5.16 in)
  • Extended Height: 223 mm (8.78 in)
  • Plunger Diameter: 38 mm (1.50 in)
  • Screw Extension: 30 mm (1.18 in)
  • Base Dimensions (WxL): 90 x 144 mm (3.54 x 5.67 in)
  • Oil Capacity: 260 cm³ (8.79 oz)
  • Weight: 5 kg (11 lb)
  • Series: GBJ Series Hydraulic Bottle Jacks

• Key Features

  • Safety relief valve to prevent over-pressurization and ensure safe load limits
  • Automatic by-pass port for controlled lowering and added security
  • High-strength beam and pump linkage for durability under heavy loads
  • Compact, low-profile design ideal for use in tight spaces
  • Hardened plunger and base for extended service life and wear resistance
  • Swiveling pump for ease of use and improved ergonomics
  • Telescopic handle stores in base for portability
  • Meets ANSI/PLM standards for quality and safety compliance
