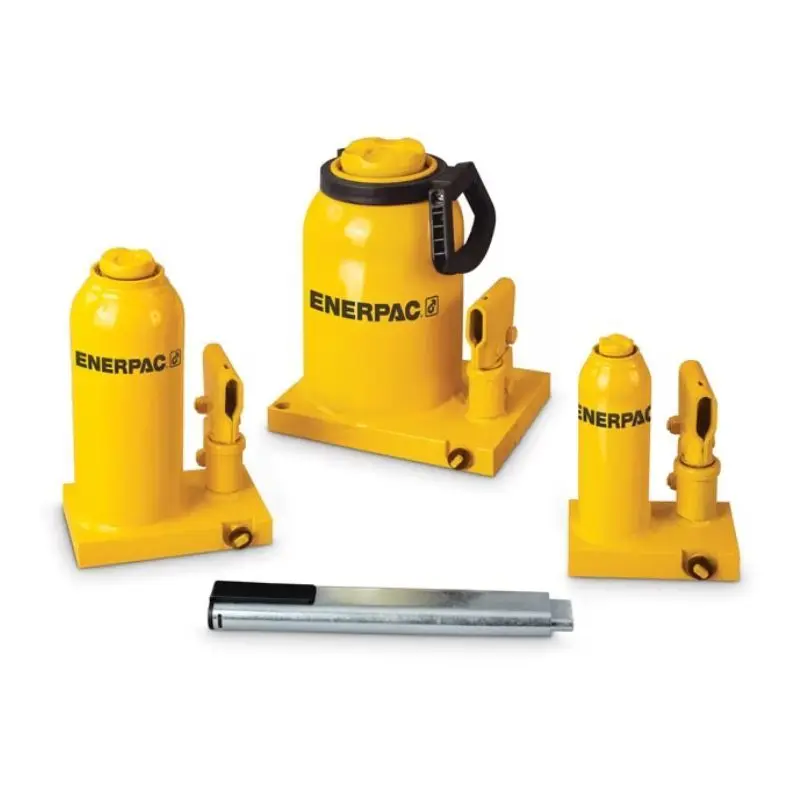

GBJ003A 29,4 kN, 105 mm Stroke, Hydraulic Industrial Bottle Jack

Enerpac GBJ003A is a robust single-acting hydraulic industrial bottle jack designed for heavy-duty lifting in industrial maintenance, construction, and vehicle positioning tasks. Delivering a 3.3 US ton (29.4 kN) capacity over a 105 mm stroke, this model features a safety relief valve and automatic by-pass port for secure operation, with a compact low-profile design for reliability in demanding environments.

• Product Overview

  • Name: Enerpac GBJ003A Hydraulic Industrial Bottle Jack
  • Type: Single-acting, hand-pumped bottle jack
  • Primary Applications: Heavy lifting, vehicle maintenance, and industrial setups
  • Force Output: 3.3 US tons (29.4 kN) capacity
  • Stroke: 105 mm (4.13 in)
  • Retraction Mechanism: Spring return
  • Operating Pressure: Maximum 700 bar (10,150 psi)
  • Collapsed Height: 178 mm (7.01 in)

• Technical Specifications

  • Capacity: 3.3 US tons (29.4 kN)
  • Maximum Operating Pressure: 700 bar (10,150 psi)
  • Stroke: 105 mm (4.13 in)
  • Collapsed Height: 178 mm (7.01 in)
  • Extended Height: 283 mm (11.14 in)
  • Plunger Diameter: 25 mm (0.98 in)
  • Screw Extension: 50 mm (1.97 in)
  • Base Dimensions (LxW): 96 x 62 mm (3.78 x 2.44 in)
  • Oil Capacity: 80 cm³ (2.71 oz)
  • Weight: 2.8 kg (6.2 lb)
  • Series: GBJ Series Hydraulic Bottle Jacks

• Key Features

  • Safety relief valve to prevent over-pressurization and ensure safe load limits
  • Automatic by-pass port for controlled lowering and added security
  • High-strength beam and pump linkage for durability under heavy loads
  • Compact, low-profile design ideal for use in tight spaces
  • Hardened plunger and base for extended service life and wear resistance
  • Swiveling pump for ease of use and improved ergonomics
  • Telescopic handle stores in base for portability
  • Meets ANSI/PLM standards for quality and safety compliance
