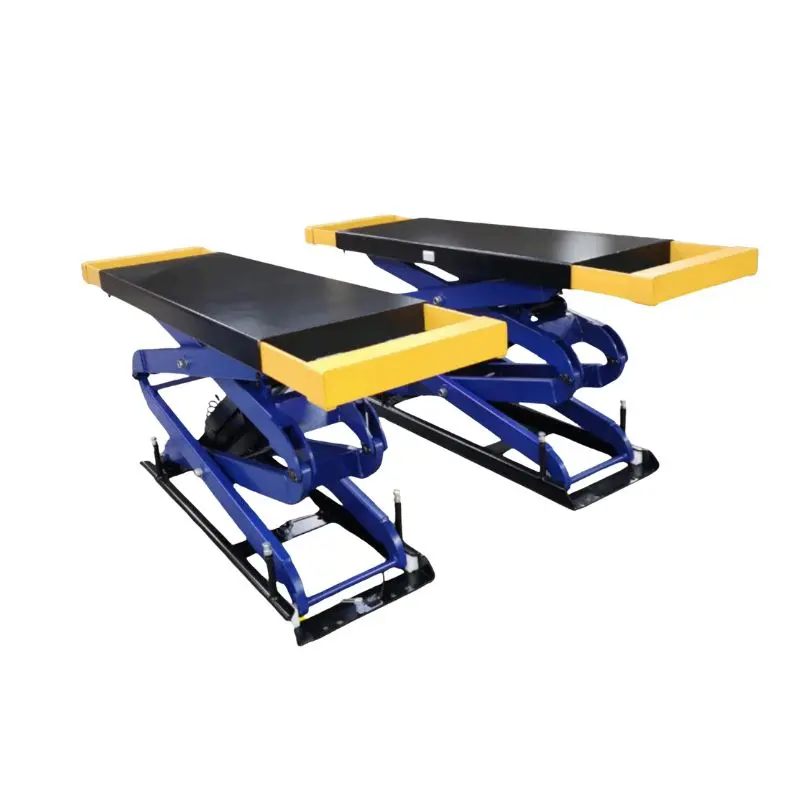

EELRBP762LAP4 MDSL 3.5 Ton In-Ground Double-Scissor Lifter (380-415V 3Ph 50Hz)

Hofmann EELRBP762LAP4 MDSL 3.5 Ton In-Ground Double-Scissor Lifter is a robust, space-efficient lift designed for automotive shops, offering a 3.5-ton (7,700 lbs) lifting capacity. Engineered for in-ground (flush-mount) installation, it maximizes shop floor space while providing versatile lifting for wheel service tasks, including alignments, tire changes, and brake repairs. Operating on a 380-415V 3-phase 50Hz power supply, it ensures reliable performance for professional environments.

Key Features

• Double-Scissor Design: Provides a compact footprint with a low-profile platform, ideal for low-clearance vehicles and quick wheel service tasks.

• Electro-Hydraulic System: Delivers smooth, synchronized lifting with minimal maintenance, supported by a Master-Slave hydraulic system for precise operation.

• Open Front and Rear Access: Enhances technician accessibility to undercarriage components, improving efficiency for alignment and repair tasks.

• Safety Mechanisms: Includes mechanical safety locks with pneumatic release, flow-sensing valves, and a redundant hydraulic safety system to ensure secure operation.

• Extendable Platforms: Adjustable platform length (typically 1,540–1,820 mm) accommodates various vehicle sizes, from compact cars to SUVs.

• Low-Profile Installation: Flush-mount design integrates seamlessly into the shop floor, offering a clean workspace and easy vehicle loading.

• ALI Certified: Meets Automotive Lift Institute standards for safety and performance.

Specifications

• Lifting Capacity: 3,500 kg (7,700 lbs)

• Minimum Height: ~320 mm (12.6 inches)

• Maximum Lifting Height: ~2,140 mm (84.3 inches)

• Platform Length: 1,540–1,820 mm (60.6–71.7 inches)

• Platform Width: ~550 mm (21.7 inches)

• Distance Between Platforms: ~800 mm (31.5 inches)

• Lifting/Lowering Time: ~55/45 seconds

• Motor Power: 2.2 kW

• Power Supply: 380-415V, 3-phase, 50Hz

• Air Supply Required: 6–8 kg/cm² (85–113.6 PSI)

• Installation Type: In-ground (flush mount)

Benefits

• Space Efficiency: The in-ground double-scissor design minimizes floor space usage, ideal for shops with limited bay space.

• Versatility: Suitable for a wide range of vehicles, including low-profile cars and SUVs, with extendable platforms and optional SUV adaptors.

• Ease of Use: Low initial height and open design simplify vehicle positioning and technician access, enhancing workflow efficiency.

• Durability: Constructed with corrosion-resistant materials and high-quality components for long-term reliability and reduced maintenance.

• Safety: Advanced safety features, including automatic locking in case of pressure loss, ensure operator and vehicle safety.
