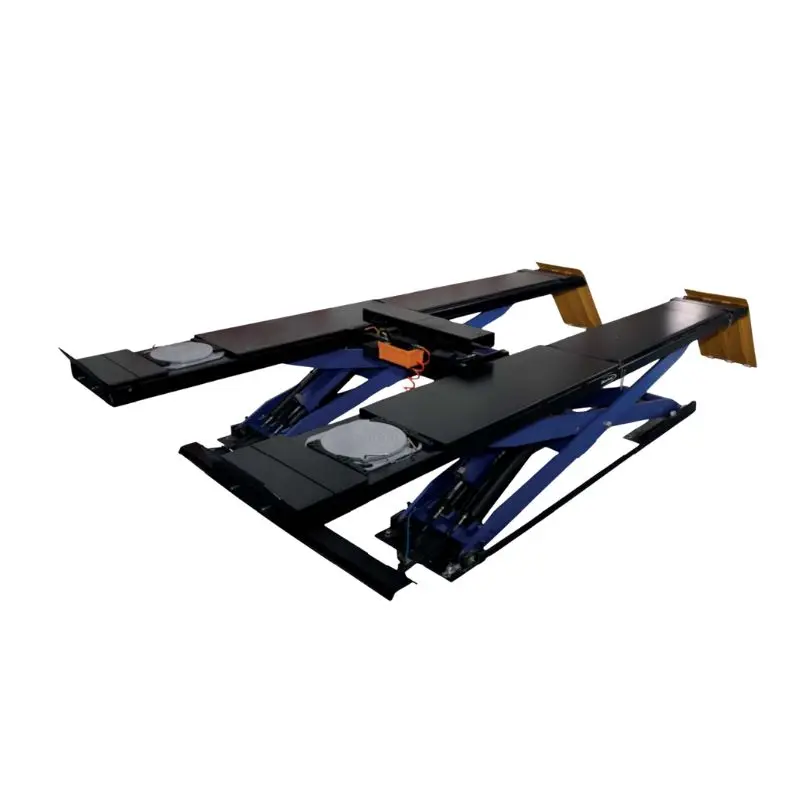

EELRBP750LP3 LPSAL 4.5M 4T Scissor Alignment Lift, Low Profile

Hofmann EELRBP750LP3 LPSAL 4.5M 4T Scissor Alignment Lift is a low-profile, high-efficiency scissor lift designed for automotive shops performing wheel alignments. With a 4-ton (8,800 lbs) lifting capacity and a 4.5-meter runway length, it supports a wide range of vehicles, from compact cars to light trucks, and is optimized for space-saving and ease of use in both surface and flush-mount installations.

Key Features

• Low-Profile Design: Initial platform height of approximately 200 mm ensures easy vehicle loading, ideal for low-clearance vehicles.

• Electro-Hydraulic Drive System: Provides smooth, reliable lifting with minimal maintenance.

• Open Front and Rear Construction: Enhances technician access to alignment and calibration areas, streamlining workflow and reducing fatigue.

• Locked & Lighted System: Front LEDs in the turnplate base and rear LEDs on slip plates improve visibility, with corrosion-resistant locking components controlled directly from the console for efficient alignment pin resetting.

• Safety Features: Includes mechanical locking with pneumatic safety release, flow-sensing valves, and a redundant hydraulic safety system for secure operation.

• Space-Efficient Design: Allows up to five scissor lifts to fit in the space of four 4-post lifts, maximizing shop floor efficiency.

• ALI Certified: Meets Automotive Lift Institute standards for safety and performance.

Specifications

• Lifting Capacity: 4,000 kg (8,800 lbs)

• Runway Length: 4,500 mm

• Platform Width: Approximately 635 mm

• Total Width: Approximately 2,220 mm

• Total Length: Approximately 6,320 mm

• Elevation Height: Up to 1,860 mm

• Initial Platform Height: ~200 mm

• Lifting Time: ~50 seconds

• Descent Time: ~60 seconds

• Hydraulic Oil: 20L

• Working Temperature: 5–40°C

• Working Humidity: 30–95%

• Noise Level: ≤76 dB

• Air Supply Required: 90–120 PSI

• Installation Type: Surface or flush mount (pit installation)

Benefits

• Ease of Use: Low-profile runways and open design simplify vehicle loading and alignment tasks, improving technician efficiency.

• Versatility: Adjustable turnplates and slip plates accommodate various vehicle wheelbases, suitable for precise four-wheel alignments.

• Durability: Constructed with corrosion-resistant materials and imported hydraulic, pneumatic, and electrical components for long-term reliability.

• Space Optimization: Compact footprint is ideal for shops with limited space, especially in flush-mount pit installations.
