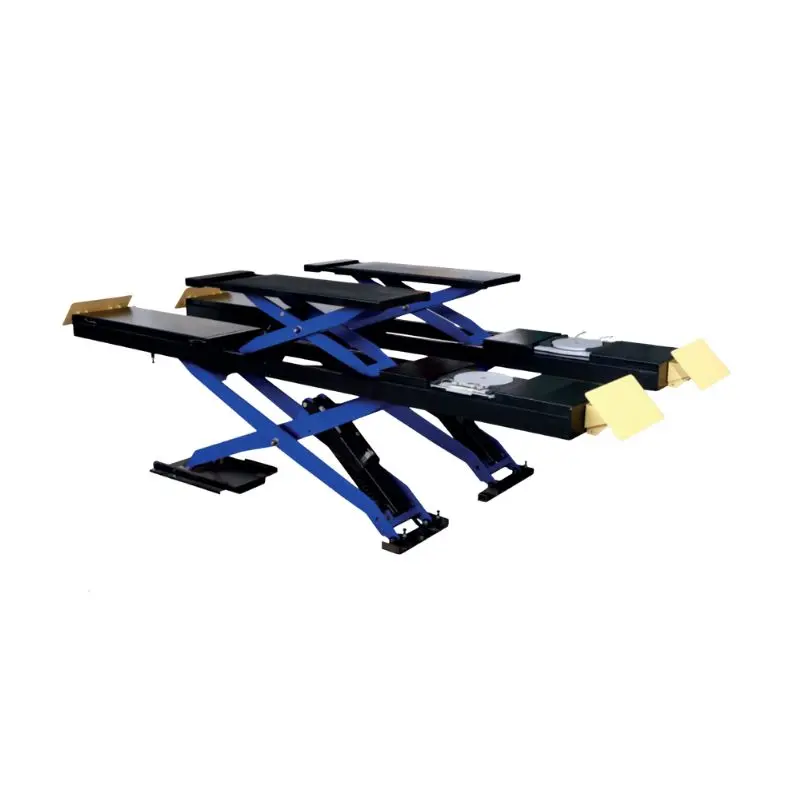

EELR759APC3 SOSAL 4.5M, 3.5 Ton Scissor-On-Scissor Alignment Lift

Hofmann EELR759APC3 SOSAL 4.5M 3.5 Ton Scissor-On-Scissor Alignment Lift is a compact, high-performance lift designed for automotive shops specializing in wheel alignments. With a 3.5-ton (7,700 lbs) lifting capacity and a 4.5-meter runway length, it supports a wide range of vehicles, from compact cars to light trucks, in a space-efficient design optimized for flush-mount pit installation.

Key Features

• Scissor-on-Scissor Design: Combines a primary platform (4.5m) with a secondary platform for flexible lifting, eliminating the need for additional roller jacks and providing a clear, unobstructed workspace.

• Electro-Hydraulic System: Ensures smooth, reliable operation with low maintenance.

• Open Front and Rear Construction: Enhances technician access to alignment and calibration areas, improving efficiency and reducing fatigue.

• Flush Mount Installation: Seamlessly integrates into the shop floor, maximizing workspace and enabling easy vehicle loading.

• Safety Systems: Features mechanical locking with pneumatic safety release, flow-sensing valves, and a redundant hydraulic safety system for secure and precise operation.

• LED Lighting and Locks: Front LEDs in the turnplate base and rear LEDs on slip plates enhance visibility, with locking controls activated from the console for streamlined alignment processes.

• ALI Certified: Meets Automotive Lift Institute standards for safety and performance.

Specifications

• Lifting Capacity: 3.5 tons (7,700 lbs)

• Runway Length: 4,500 mm

• Platform Width: 620 mm

• Overall Width: 2,160 mm

• Minimum Height (Primary): 330 mm

• Maximum Height (Primary): 1,860 mm

• Rear Slip Plate Length: 1,517 mm

• Maximum Wheelbase (4-Wheel Alignment): 3,280 mm

• Minimum Wheelbase (4-Wheel Alignment): 1,915 mm

• Air Supply Required: 90–120 PSI

• Installation Type: Flush mount (pit installation)

Benefits

• Space-Saving Design: Allows up to five scissor lifts to fit in the space of four 4-post lifts, ideal for shops with limited floor space.

• Enhanced Productivity: Open design and integrated lighting reduce alignment process time, while the scissor-on-scissor system eliminates the need for additional jacks.

• Versatility: Accommodates various vehicle sizes with adjustable turnplates and slip plates, suitable for precise alignments.

• Durability: Built with corrosion-resistant materials and oversized, encapsulated bearings for reduced maintenance and long-term reliability.
