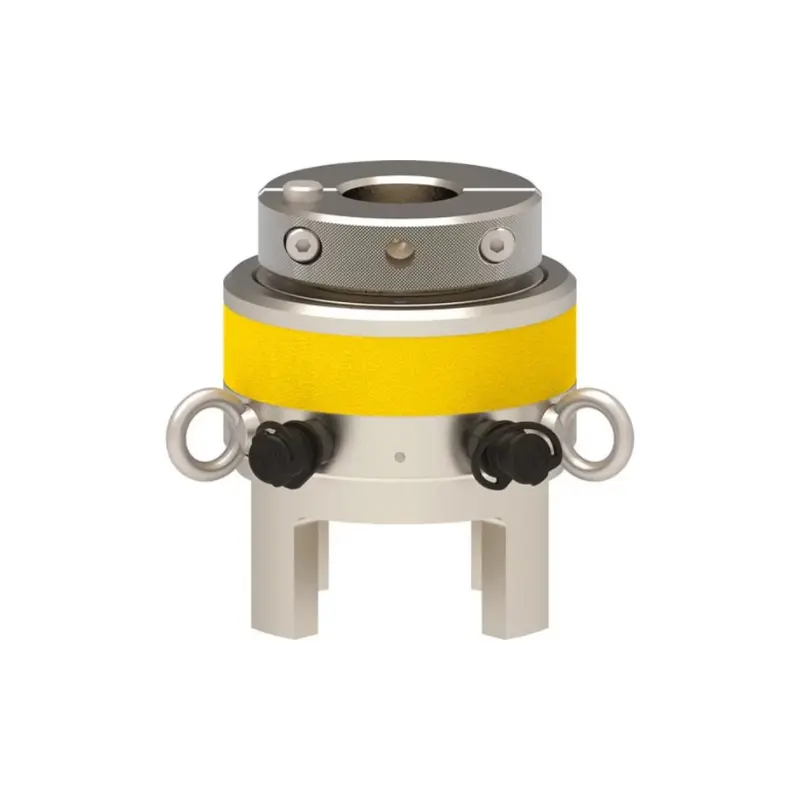

EAJ4LC, Aquajack Subsea Bolt Tensioner, 1 1/2" - 1 5/8" Maximum Thread Range
- Bolt Diameter Range: 1 1/2" – 1 5/8" (M39 – M42 mm)
- Maximum Operating Pressure: 21,750 psi (1,500 bar)
- Cylinder Effective Area: 4.49 in²
- Maximum Load Capacity: 99.6 tons (886 kN)
- Stroke: 1.18 in
- Weight: 12.56 lbs (5.7 kg)
- Key Dimensions (in inches): A = 3.58, B = 1.38, C = 4.49, D = 0.79, E = 3.78, F = 0.75, G = 2.60, H = 8.54
- Key Features: Compact design for subsea use; long piston stroke; misalignment compensation; quick hose connection; visible stroke indication; no-spill overstroke protection; Split Nut for rapid application/removal on long or damaged bolts
| Brand: Enerpac |
