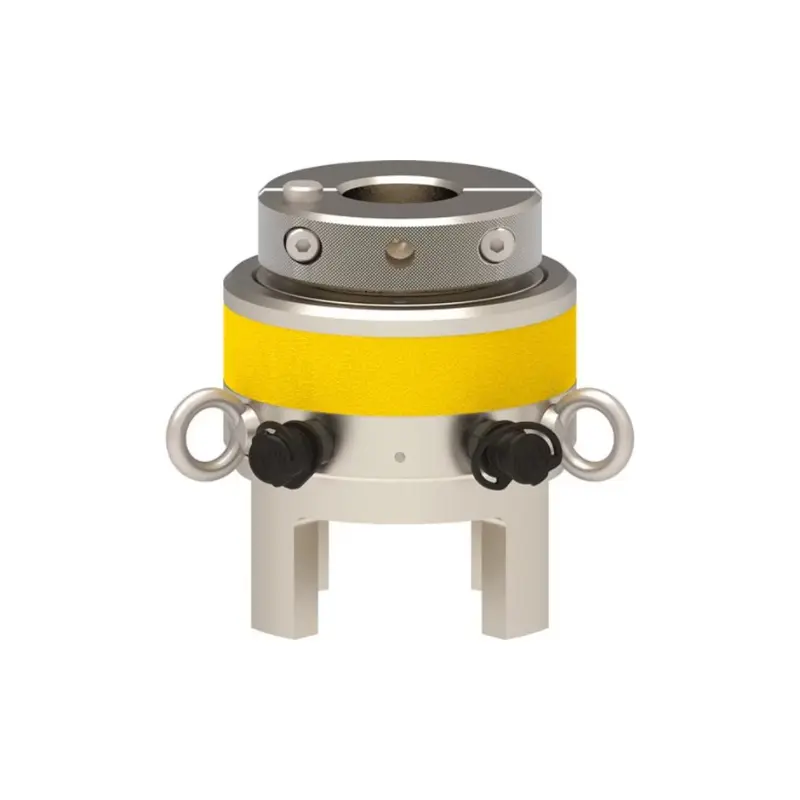

EAJ3LC, Aquajack Subsea Bolt Tensioner, 1 1/4" - 1 3/8" Maximum Thread Range

Enerpac EAJ3LC is a robust subsea bolt tensioner from the Aquajack series, optimized for precise tensioning of 1 1/4"–1 3/8" bolts in challenging underwater environments such as offshore oil & gas, pipelines, and marine maintenance. Featuring a long piston stroke for efficient operation, misalignment compensation for reliable alignment, and no-spill overstroke prevention for enhanced safety, this tool integrates quick hose connections and visible stroke indication, enabling rapid deployment with minimal downtime while supporting high-pressure hydraulic pumps for consistent performance up to 1500 bar.

• Model: EAJ3LC (Aquajack Subsea Bolt Tensioner, low-capacity configuration)
• Bolt Range: 1 1/4"–1 3/8" (M30–M33)
• Maximum Load Capacity: 45 tons
• Maximum Operating Pressure: 21,750 psi (1500 bar)
• Stroke: 4.53 in. (115 mm)
• Cylinder Effective Area: 3.12 in²
• Weight: 3.31 lb. (1.50 kg)
• Dimensions (in inches):
  • A (overall height): 5.75
  • B (piston diameter): 1.18
  • C (nut height): 1.02
  • D (body diameter): 3.74
  • E (nearest obstruction): 4.92
  • F (bridge width): 1.97
  • G (across tool centerline): 5.31
  • H (extra stud length required): 11.81
• Connectivity: 2x quick-connect hose ports (compatible with 21,750 psi stainless steel hoses; reels up to 885 ft. available)
• Features: Compact design for low-clearance access; long piston stroke for fewer cycles; misalignment compensation (±5°); visible piston stroke indication; "no spill" overstroke elimination; quick-fastening or solid reaction nut; self-energizing seals; anti-slip tool surface; includes tommy bar and lifting eyes
• Operator Feedback: Visual stroke indication; ergonomic handles for subsea handling
• Maintenance Features: Self-energizing seals for leak prevention; corrosion-resistant construction; annual hose/seal inspection recommended; drop-tested for durability
