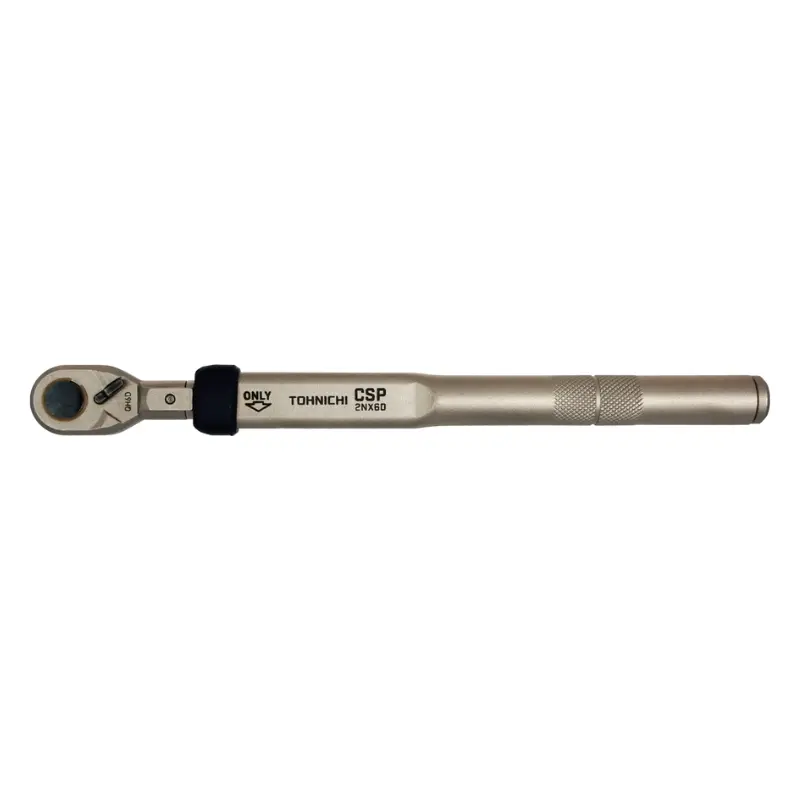

CSP2NX6D Interchangeable Torque Wrench, 6D, 0.4-2 N.m

Type: Interchangeable Head Preset Click Type Torque Wrench

Torque Range:

• S.I.: 0.4–2 N·m
• Metric: 4–20 kgf·cm
• American: 3.5–17.7 lbf·in

Accuracy: ±3%

Head Size: 6D (Compatible with Tohnichi 6D series interchangeable heads, sold separately)

Applicable Bolts (Reference):

• Common Steel: M4
• High Tension: M3.5

Maximum Hand Force: 17.5 N

Dimensions:

• Effective Length (L): 114 mm
• Overall Length (L'): 133 mm (excludes interchangeable head)
• Head (d3): 6 mm
• Body:
  • m: 12 mm
  • n: 7.3 mm
  • d: 11 mm
  • D: 11 mm

Weight: 0.06 kg

Grip: Knurled Metal Handle (MH)

Adjusting Tool: Requires Tohnichi #931 Adjusting Tool (sold separately) for torque setting

Features:

• Preset torque prevents operator adjustments without a special tool, reducing errors.
• Slim body and small head with a reduced swing arc (7.5° with QH6D ratchet head) for use in tight spaces.
• Clear “click” sound and tactile feedback signal torque completion.
• Compatible with a variety of 6D interchangeable heads (e.g., QH6D ratchet head, SH6D spanner heads).
• Slim pressure bar and partial knurled finish aid accurate positioning.

Applications: Ideal for assembly and mass production in confined spaces.

Notes:

• Not compliant with ISO 6789:2017 (unlike some other CSP models).
• Not suitable for inspection purposes.
• Requires a torque tester for setting the preset torque.
• When ordering, specify the desired torque value (e.g., Tohnichi CSP2NX6DX 1.5 N·m) for calibration certificate issuance.

Optional Accessories:

• 6D Interchangeable Heads (e.g., QH6D ratchet head with 48-tooth gear, SH6D spanner heads ranging from 5.5 mm to 19 mm with varying max torque).
• Adjusting Tool #931.
