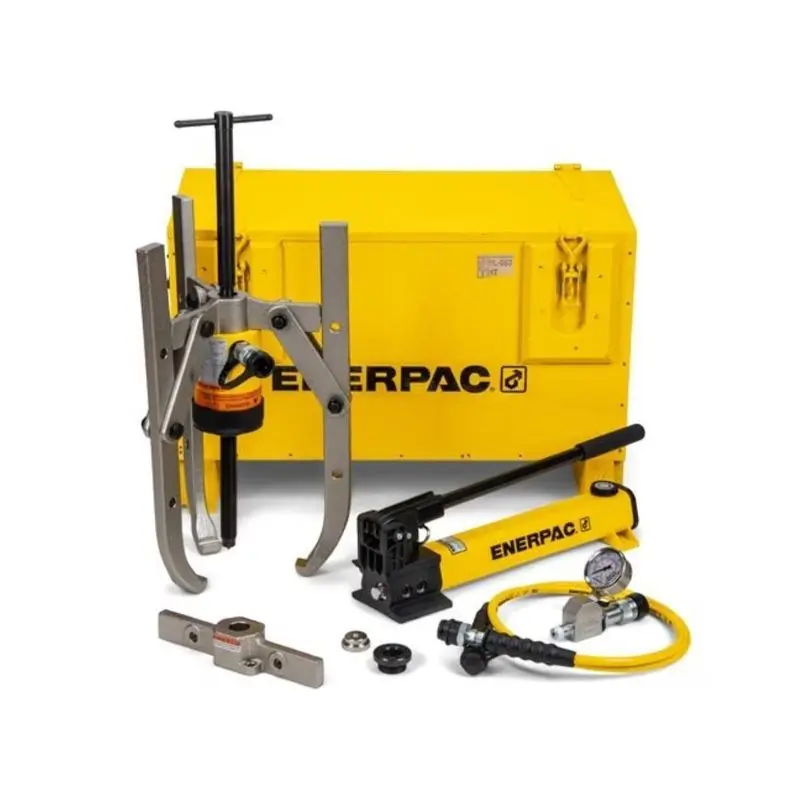

BHP5751G, 50 Ton, Hydraulic Master Puller Set with Hand Pump

Enerpac BHP5751G 50 Ton Hydraulic Master Puller Set with Hand Pump is a comprehensive, high-capacity hydraulic tool kit designed for safe and efficient removal of bearings, couplings, pulleys, and other press-fitted components in industrial maintenance and assembly applications. Featuring a grip puller with self-centering jaws for synchronized engagement, along with a cross bearing puller, bearing cup puller, and bearing separator for versatile applications up to 50 tons, this master set includes a complete hydraulic system with hand pump, hollow plunger cylinder, hose, pressure gauge, and adapters for portable, one-person operation without external power sources. Ideal for heavy-duty pulling tasks with a maximum spread of 1100 mm and reach of 700 mm, it ensures controlled force application at up to 700 bar without damaging components, eliminating unsafe methods like hammering or prying, and comes complete in a protective wooden storage case.

• Model Number: BHP5751G
• Product Type: Hydraulic Master Puller Set (3-Jaw Grip Puller Configuration) with Hand Pump
• Color: Silver/Gray
• Material: Forged Steel with Hardened Components
• Capacity: 50 Ton (Imperial Tons; 490.3 kN)
• Spread Range: 100 mm - 1100 mm (3.94" - 43.3")
• Wall Thickness Capacity: N/A (suitable for various press-fitted components based on application)
• Motor Type: N/A (hydraulic hand pump operation)
• Power Pack: Included P80 Hand Pump with RCH603 Hollow Plunger Cylinder
• Control System: Hydraulic with Hand Pump and Pressure Gauge
• Weight (Net): 298 kg / 656 lbs
• Dimensions: Reach: 700 mm (27.56"), Maximum Spread: 1100 mm (43.3")
• Overview: Versatile hydraulic master puller set for precise, damage-free removal of heavy components; ideal for industrial maintenance with portable hand pump power and comprehensive accessories
• Key Features:
  • High-quality forged steel construction for superior reliability and durability in demanding environments
  • Speed crank and adjusting screw for quick jaw contact and setup before applying hydraulic force
  • Includes BHP-552 grip puller, BHP-562 cross bearing puller, BHP-580 bearing cup puller, BHP-582 bearing separator, HC-7206 hose, GF813B gauge, and GA3 adapter for complete versatility
  • Maximum operating pressure of 700 bar (7,850 psi) for controlled, high-force pulling without part damage
  • Supplied in CW-750 wooden storage case for easy transport and organization in field or workshop settings
