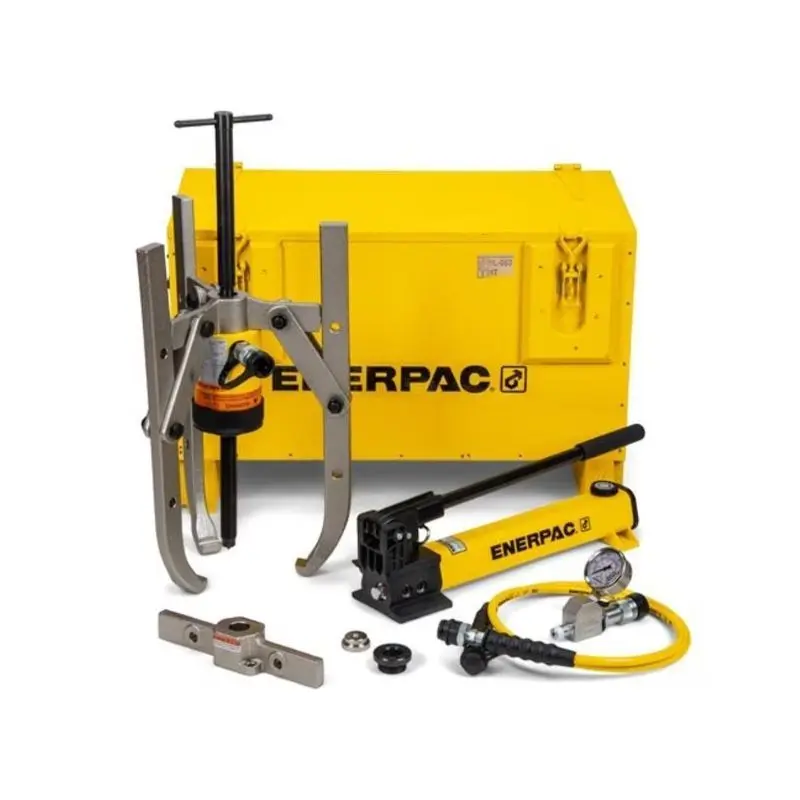

BHP251G, 24 Ton, Hydraulic Grip Puller Set with Hand Pump

Enerpac BHP251G 24 Ton Hydraulic Grip Puller Set with Hand Pump is a comprehensive, high-capacity hydraulic tool set designed for safe and efficient removal of bearings, couplings, pulleys, and other press-fitted components in industrial maintenance and assembly applications. Featuring precise hydraulic control via the included hand pump for fast, controlled pulling up to 24 tons, this set includes a grip puller with self-centering jaws, hollow plunger cylinder, hose, pressure gauge, and wooden storage case for portable, one-person operation without external power sources. Ideal for heavy-duty tasks with a maximum spread of 500 mm and reach of 300 mm, it ensures damage-free extraction using high-quality forged steel components, eliminating unsafe methods like hammering or prying.

• Model Number: BHP251G
• Product Type: Hydraulic Grip Puller Set (2/3-Jaw Configuration) with Hand Pump
• Color: Silver/Gray
• Material: Forged Steel with Hardened Components
• Capacity: 24 Ton (Imperial Tons)
• Spread Range: 100 mm - 500 mm (3.94" - 19.68")
• Wall Thickness Capacity: N/A (suitable for various press-fitted components based on application)
• Motor Type: N/A (hydraulic hand pump operation)
• Power Pack: Included P-392 Hand Pump with RCH-202 Hollow Plunger Cylinder
• Control System: Hydraulic with Hand Pump, Pressure Gauge, and Hose
• Weight (Net): 55.8 kg / 123 lbs
• Dimensions: Reach: 300 mm (11.81"), Maximum Spread: 500 mm (19.68"); Jaw Thickness: 20 mm (0.79") 2-jaw / 28 mm (1.10") 3-jaw; Adjusting Screw: 1"-8 UNC, 508 mm (20") length
• Overview: Versatile hydraulic grip puller set for precise, damage-free removal of heavy components; ideal for industrial maintenance with portable hand pump power and comprehensive accessories in a wooden storage case
• Key Features:
  • Precise hydraulic control at up to 700 bar (10,000 psi) allows fast, efficient, and safe pulling without damaging parts
  • High-quality forged steel components provide superior reliability and service life in demanding environments
  • Includes BHP-252 grip puller, RCH-202 cylinder, P-392 hand pump, HC-7206 hose, GF-813P gauge, GA-3 adapter, HP-2015 saddle, and CW-166 wooden case for complete portability and organization
  • Speed crank and adjusting screw enable quick jaw contact and setup before applying hydraulic force, with 51 mm (2") cylinder stroke for efficient operation
  • Warning: Do not exceed 50% of rated capacity with double crosshead (2 griparms) or puller legs with bearing attachment; always wear safety goggles and gloves
