TSFC24H Split Frame Clamshell 18 - 24" Hydraulic

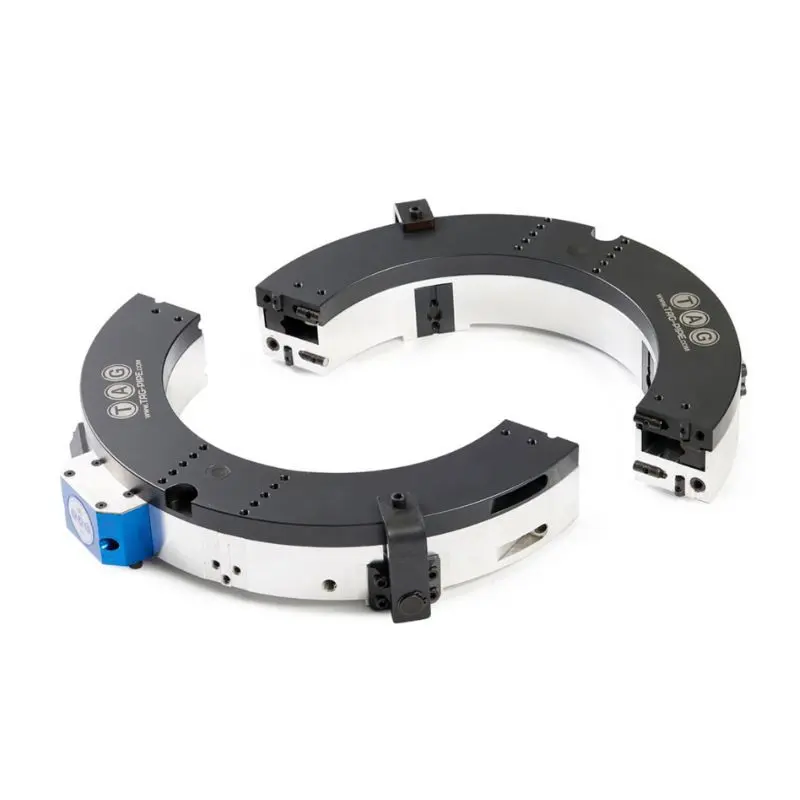

TAG TSFC24H Split Frame Clamshell is a revolutionary portable cold cutting and bevelling machine designed for high-speed, precise pipe preparation in industrial, fabrication, and workshop environments. Powered by a hydraulic drive system for superior torque and reliability in demanding conditions, this low-profile tool features a quick lock/unlock splitting hinge and modular locking system, enabling accurate cuts and bevels on pipes from 18" to 24" (457-610 mm O/D) up to 40 mm wall thickness, suitable for all materials including stainless steel and exotic alloys.

• Model Number: TSFC24H
• Product Type: Portable Split Frame Clamshell Cold Cutting & Bevelling Machine (Hydraulic)
• Color: Silver/Gray
• Material: Lightweight aluminium outer body with treated steel inner ring gear and hardened components
• Clamping Range: 18" - 24" / 457 mm - 610 mm O/D
• Wall Thickness Capacity: Up to 40 mm
• Motor Type: Hydraulic (200 r/min, 260 N.M. torque; rated pressure 16 MPa, rated flow 25 l/min)
• Power Pack: Electric motor 7.5 kW at 1450 r/min (3-phase, timing range 0-20 r/min); shipping weight 300 kg
• Control System: Manual with double striker (0.2 mm feed per revolution)
• Weight (Net): Ring only approximately 76 kg / 167 lbs (packing weight ~300 kg / 661 lbs including power pack)

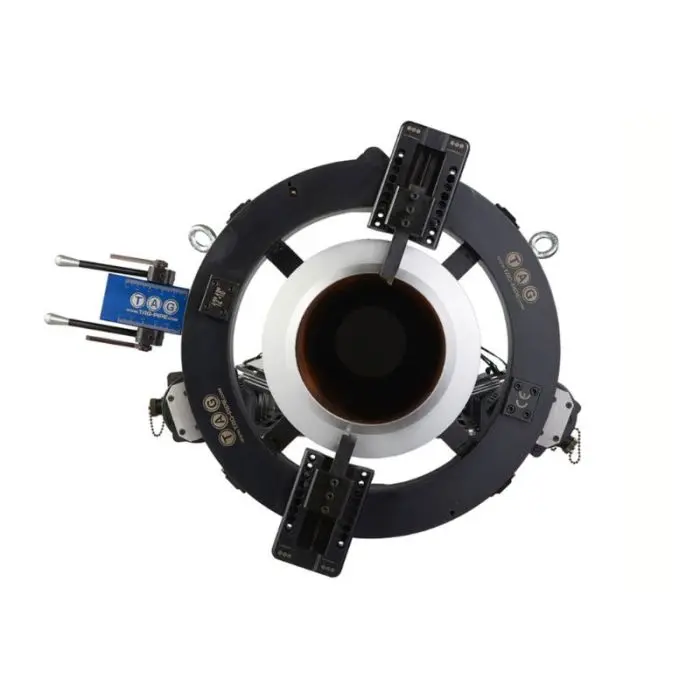

• Overview: High-speed cold cutting and bevelling system using clamshell split frame principle; rotating inner ring for precise, stable cuts; ideal for workshops and high-productivity process environments with limited access
• Key Features:
  • Low-profile frame for confined spaces; simultaneous beveling and cutting for perfect weld preparation
  • Modular locking system with advanced external metal plate to distribute pressure; wide hardened clamping feet (40 x 60 mm) with rule marks for rapid, repeatable concentric setup, even on out-of-round pipes
  • Quick split frame design with lock/unlock hinge for fast in-situ setup
  • Advanced cam roller bearing system (size S) for fine adjustment and easy maintenance
  • TAG advanced feeding system with worm and crown for even pressure distribution, reducing vibration and tool wear
  • Double striker with extended engaging handle for hands-free operation; two bolt motor mount for fast motor changes
  • Accepts wide range of accessories (e.g., standard/low-profile tool box, O/D tracking, counter bore slide)
  • Tooling: HSS Co range for sever/cut, bevel, double-bevel, compound bevel, J-prep, counter bore; holder/insert tooling available; custom designs on request
  • Versatility: Handles external/internal beveling, counter-boring, compound bevels, J-prep; suitable for any steel/exotic alloy
  • Safety: Overload protection; ergonomic design; must use with filter lubricator and oil (voids warranty otherwise)
  • Eco-Friendly: Optimizes process to reduce material waste
• Packaging: 1 Machine per Unit; Includes ring/body, hydraulic motors, tool boxes, striker, locking jaws, machine box, service tools; drawings, instruction manual, warranty certificate; custom wooden box for TSFC24
• Storage: Cool, dry place away from moisture and extremes; indefinite shelf life under proper conditions
• Compliance: Meets industry standards for pipe cutting and bevelling tools (e.g., ASME equivalents)
